Sliding Barn Door Hardware Kits for Single Wood Doors Up to 39in W | Black Powder Coated Finish | 78in Rail Length

Hover over image to zoom in

SKU: SDH-SW6-BLK

Pre-drilled holes spaced 16" on center align perfectly with wall studs (standard US construction)
Works with doors 1-3/8" through 1-3/4" thick and less than 39" wide

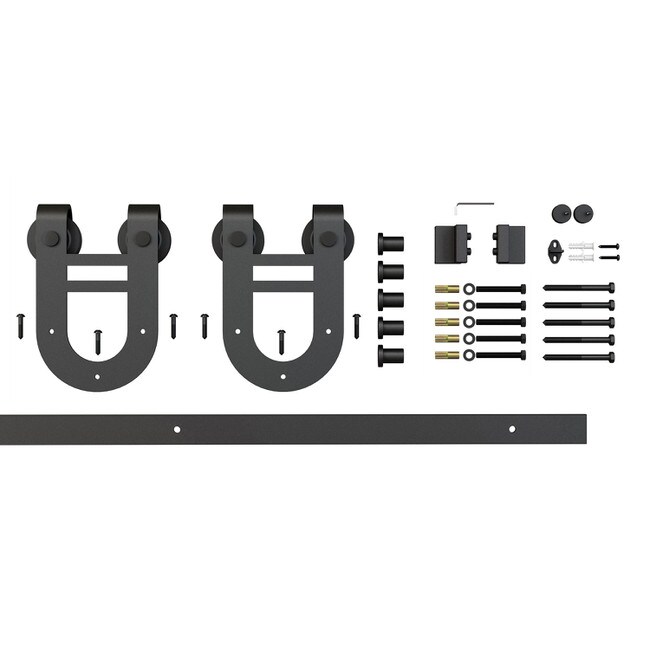

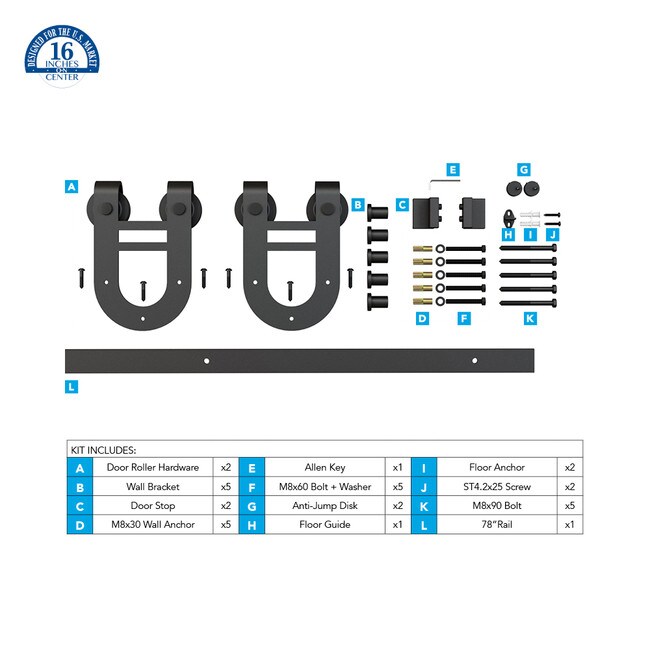

Kit includes: 1 Rail, 2 Door Rollers, 2 Door Stops, 1 Floor Guide, 5 Wall Brackets, 2 Anti-Jump Disks, 1 Routed Floor Guide + Installation Hardware

Pre-drilled holes spaced 16" on center align perfectly with wall studs (standard US construction)
Works with doors 1-3/8" through 1-3/4" thick and less than 39" wide
Kit includes: 1 Rail, 2 Door Rollers, 2 Door Stops, 1 Floor Guide, 5 Wall Brackets, 2 Anti-Jump Disks, 1 Routed Floor Guide + Installation Hardware
Barn door not included
Heavy-duty iron rail supports up to 285 lbs
Complete with all fittings and step-by-step instructions for easy installation
Available in Black Powder Coated Finish
Roller size: 9-/78" L x 6-1/4" W. Rail size: 78" L x 1-1/2 H x 3/16" W

$138.35

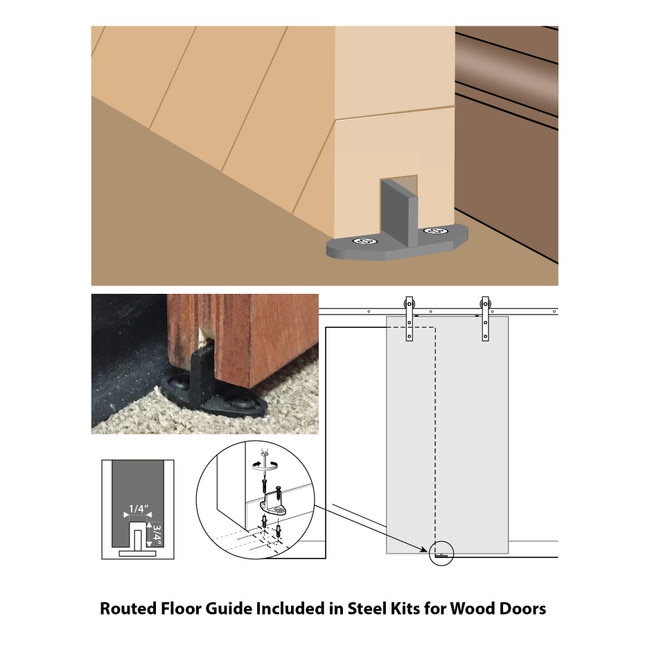

Step 1 - Select Routed Or Non Routed Floor Guide

Routed Or Non Routed Floor Guide : Routed

Routed Non Routed

$138.35

per set

Our return policy

This item is IN STOCK

Item ships within 1 - 2 Business Days.

Available Sample:

Color Chip

Dynamic Load Rating	Maximum Door Weight: 285 lbs
Finish	Black Powder Coated Finish
Hole Info	16" Center to Center Hole Spacing
Includes	1 Rail, 2 Door Rollers, 2 Door Stops, 1 Floor Guide, 5 Wall Brackets, and 2 Anti-Jump Disks
Indoor Outdoor Use	Indoor Use Only
Length	Rail Length: 78"
Material	Iron Rail and Components with POM Thermoplastic Wheels
Product Weight	32 lbs per set
Rail Size	1-1/2" H x 3/16" W
Roller Size	9-/78" L x 6-1/4" W
Thickness	Door Thickness: 1-3/8" through 1-3/4"
Type	Door Type: Single Door; Function: Standard
Width	Door Width: Up to 39"

Download installation Instructions
