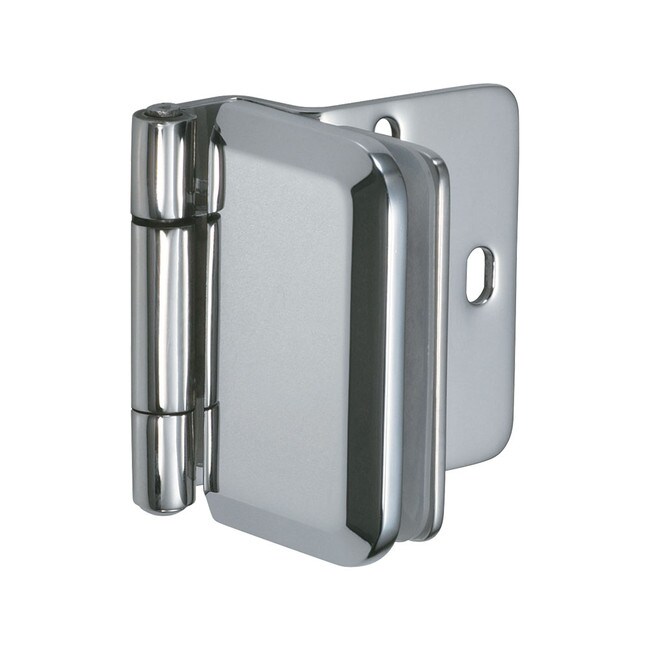

Sugatsune Half Overlay Glass Door Hinge

Hover over image to zoom in

SKU: XL-GH03-48-8CR

Brand: Sugatsune
Height: 2.01 in (51 mm) | Max Door Height: 35.43 in (900 mm)
Width: 1.61 in (41 mm) | Max Door Width: 25.59 in (650 mm) Optimized for Glass Door Hinge.

Brand: Sugatsune
Height: 2.01 in (51 mm) | Max Door Height: 35.43 in (900 mm)
Width: 1.61 in (41 mm) | Max Door Width: 25.59 in (650 mm) Optimized for Glass Door Hinge.
Depth: 2.11 in (53.5 mm)
Thickness: Min Door Thickness: 0.2 in (5 mm) | Max Door Thickness: 0.31 in (8 mm)
Finish: Mirror
Material: 304 Stainless Steel
Hole Info: Holes: 3
Dynamic Load Rating: Load Capacity /pair: 26.46 lbs (12 kg)
Certification: REACH 224 12/9/22 | RoHS 3
Mounting Hardware: 304 Stainless Steel 3.5mm or #6 screw
Notes: Knuckles: 3

$36.55

per piece

Our return policy

1 - 19	20 - 79 Savings: 10%	80 + Savings: 17%
$36.55	$32.78	$30.08

This item is IN STOCK

Item ships within 1 - 2 Business Days.

Brand	Sugatsune
Certification	REACH 224 12/9/22 \| RoHS 3
Depth	2.11 in (53.5 mm)
Dynamic Load Rating	Load Capacity /pair: 26.46 lbs (12 kg)
Finish	Mirror
Height	2.01 in (51 mm) \| Max Door Height: 35.43 in (900 mm)
Hole Info	Holes: 3
Material	304 Stainless Steel
Mounting Hardware	304 Stainless Steel 3.5mm or #6 screw
Notes	Knuckles: 3
Product Weight	.31 lbs per piece
Thickness	Min Door Thickness: 0.2 in (5 mm) \| Max Door Thickness: 0.31 in (8 mm)
Width	1.61 in (41 mm) \| Max Door Width: 25.59 in (650 mm)
