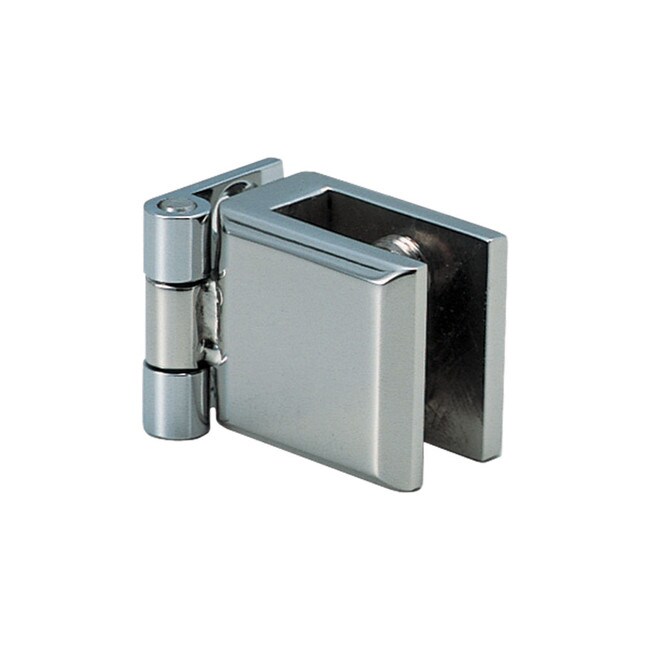

Sugatsune Glass Door Hinge | XL-GH01-250 Series

Hover over image to zoom in

SKU: XL-GH01-250

Brand: Sugatsune

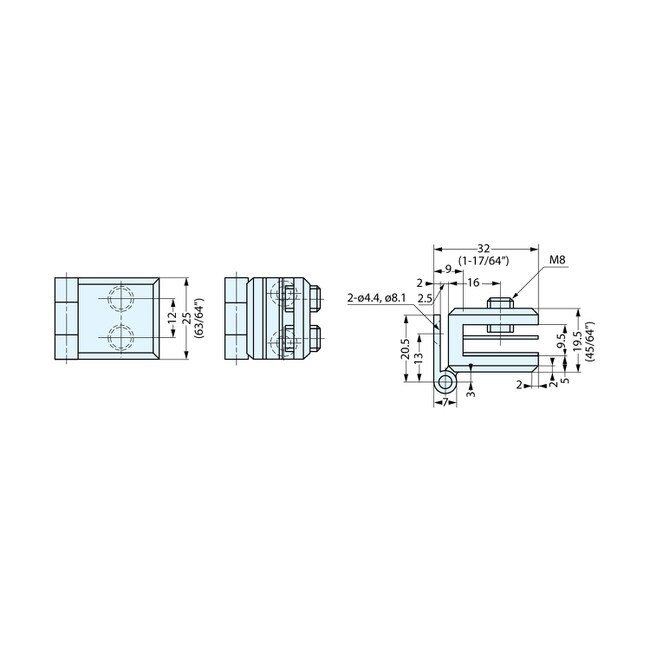

Height: 0.98 in (25 mm) | Max Door Height: 23.62 in (600 mm)
Width: 1.26 in (32 mm) | Max Door Width: 15.75 in (400 mm)
Depth: 1.02 in (26 mm)
Thickness: Min Door Thickness: 0.16 in (4 mm) | Max Door Thickness: 0.24 in (6 mm)
Finish: Polished
Material: 304 Stainless Steel
Hole Info: Holes: 2
Dynamic Load Rating: Load Capacity /pair: 10.58 lbs (4.8 kg) Works well as a Glass Door Hinge.
Certification: RoHS 2
Mounting Hardware: 3.5 X 20 mm 304 Stainless Steel Self tapping screw
Notes: Knuckles: 3 | Pre-drilling on glass/acrylic not required

$97.58

per piece

Our return policy

1 - 9	10 - 39	40 +
$97.58	$44.08	$38.57

This item is IN STOCK

Item ships within 1 - 2 Business Days.

Brand	Sugatsune
Certification	RoHS 2
Depth	1.02 in (26 mm)
Dynamic Load Rating	Load Capacity /pair: 10.58 lbs (4.8 kg)
Finish	Polished
Height	0.98 in (25 mm) \| Max Door Height: 23.62 in (600 mm)
Hole Info	Holes: 2
Material	304 Stainless Steel
Mounting Hardware	3.5 X 20 mm 304 Stainless Steel Self tapping screw
Notes	Knuckles: 3 \| Pre-drilling on glass/acrylic not required
Product Weight	.2 lbs per piece
Thickness	Min Door Thickness: 0.16 in (4 mm) \| Max Door Thickness: 0.24 in (6 mm)
Width	1.26 in (32 mm) \| Max Door Width: 15.75 in (400 mm)
