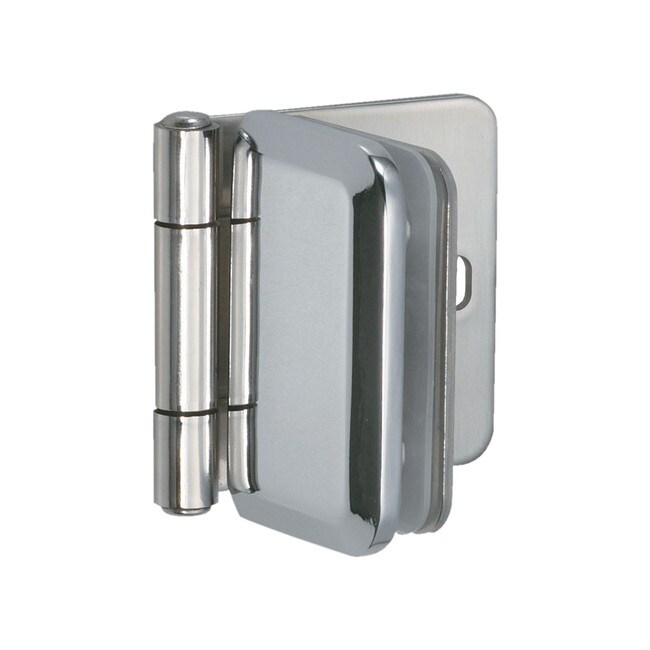

Sugatsune Inset Glass Door Hinge

Hover over image to zoom in

SKU: XL-GH03-48-0CR
  • Brand: Sugatsune
  • Height: 2.01 in (51 mm) | Max Door Height: 35.43 in (900 mm)
  • Width: 1.61 in (41 mm) | Max Door Width: 25.59 in (650 mm)
Read More
Back
$35.28
$35.28
 per piece

Our return policy

Quantity Pricing

1 - 19
20 - 79
Savings: 10%		80 +
Savings: 17%
$35.28$31.65$29.04

This item is IN STOCK

Item ships within 1 - 2 Business Days.

Back
BrandSugatsune
CertificationRoHS 2
Depth1.93 in (49 mm)
Dynamic Load RatingLoad Capacity /pair: 26.46 lbs (12 kg)
FinishMirror
Height2.01 in (51 mm) | Max Door Height: 35.43 in (900 mm)
Hole InfoHoles: 3
Material304 Stainless Steel
Mounting Hardware304 Stainless Steel 3.5mm or #6 screw
NotesKnuckles: 3
Product Weight.3 lbs per piece
ThicknessMin Door Thickness: 0.2 in (5 mm) | Max Door Thickness: 0.31 in (8 mm)
Width1.61 in (41 mm) | Max Door Width: 25.59 in (650 mm)
