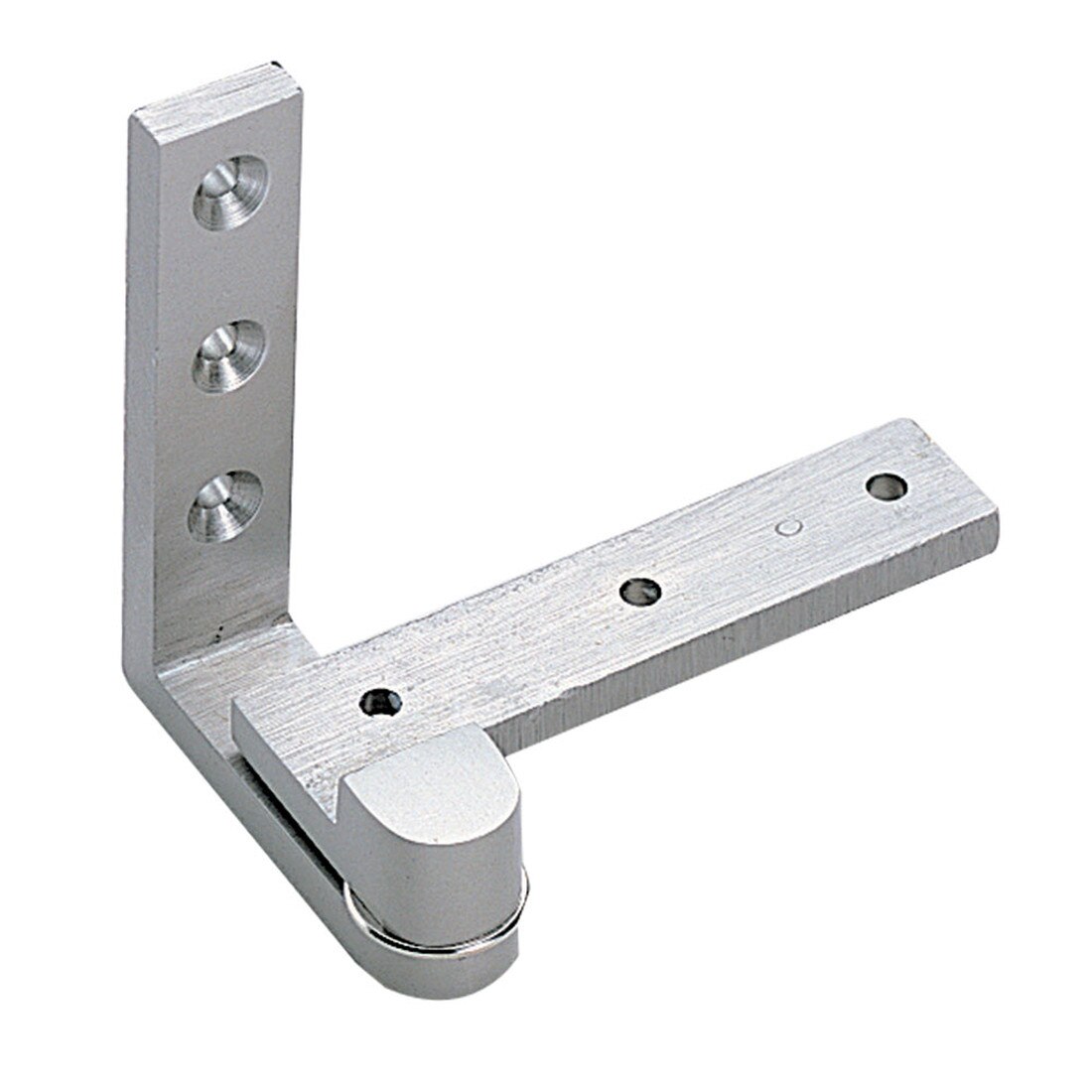

Sugatsune Overlay Door Pivot Hinge | PAS-50 Series
Hover over image to zoom in
| Brand | Sugatsune |
|---|---|
| Dynamic Load Rating | Load Capacity /pair: 5.73 lbs (2.6 kg) |
| Finish | Satin Nickel |
| Height | 1.77 in (45 mm) | Max. Door Height: 27.56 in (700 mm) |
| Length | 1.42 in (36 mm) |
| Material | Brass |
| Mounting Hardware | 3.1 X 20 mm Stainless Steel Self tapping screw |
| Product Weight | .09 lbs per pair |
| Thickness | Min. Door Thickness: 0.83 in (21 mm) |
| Type | Pivot |
| Width | 1.97 in (50 mm) | Max. Door Width: 17.72 in (450 mm) |
