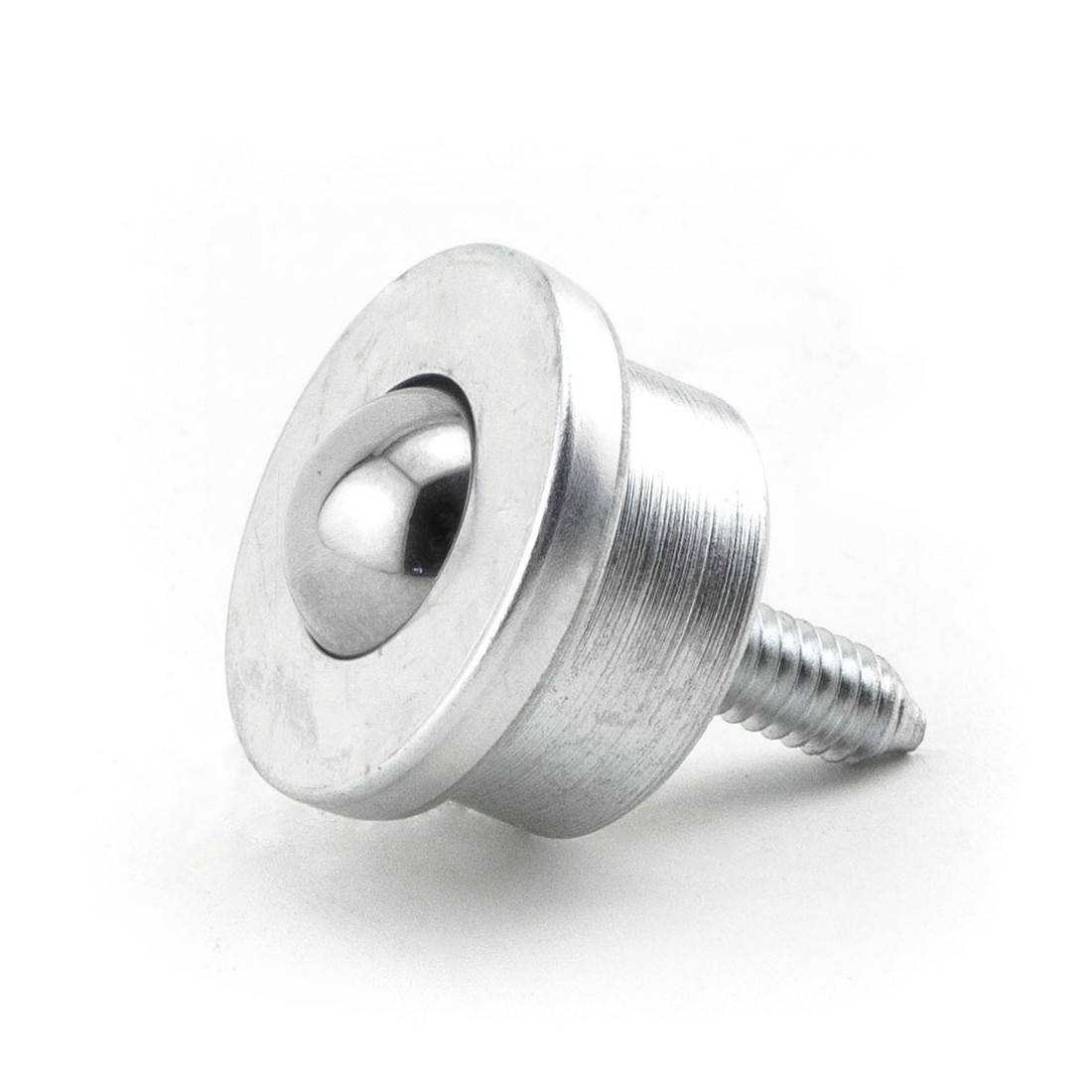

5/8in Dia | Carbon Steel | Ball Transfer Industrial Caster | 1/4-20 x 1in Threaded Stem

Hover over image to zoom in

SKU: HBSMBT20-4
  • Our Ball Transfer with Thread casters are retrofitted for older display models as well as conveyor belts, heavy rolling racks and displays.
  • 5/8" Ball Diameter with 7/16 x 1-3/8" Friction Ring Stem.
  • Omni-Directional Type Caster.
Read More
Back
$10.56
Step 1 - Select Ball Material
Step 2 - Select Ball Size
Step 3 - Select Top Fixing
Step 4 - Select Style
Step 5 - Select Load Bearing
$10.56
 per piece

Our return policy

Quantity Pricing

1 - 49
50 +
Savings: 11%
$10.56$9.31

Available To Order

Back
BrandOutwater

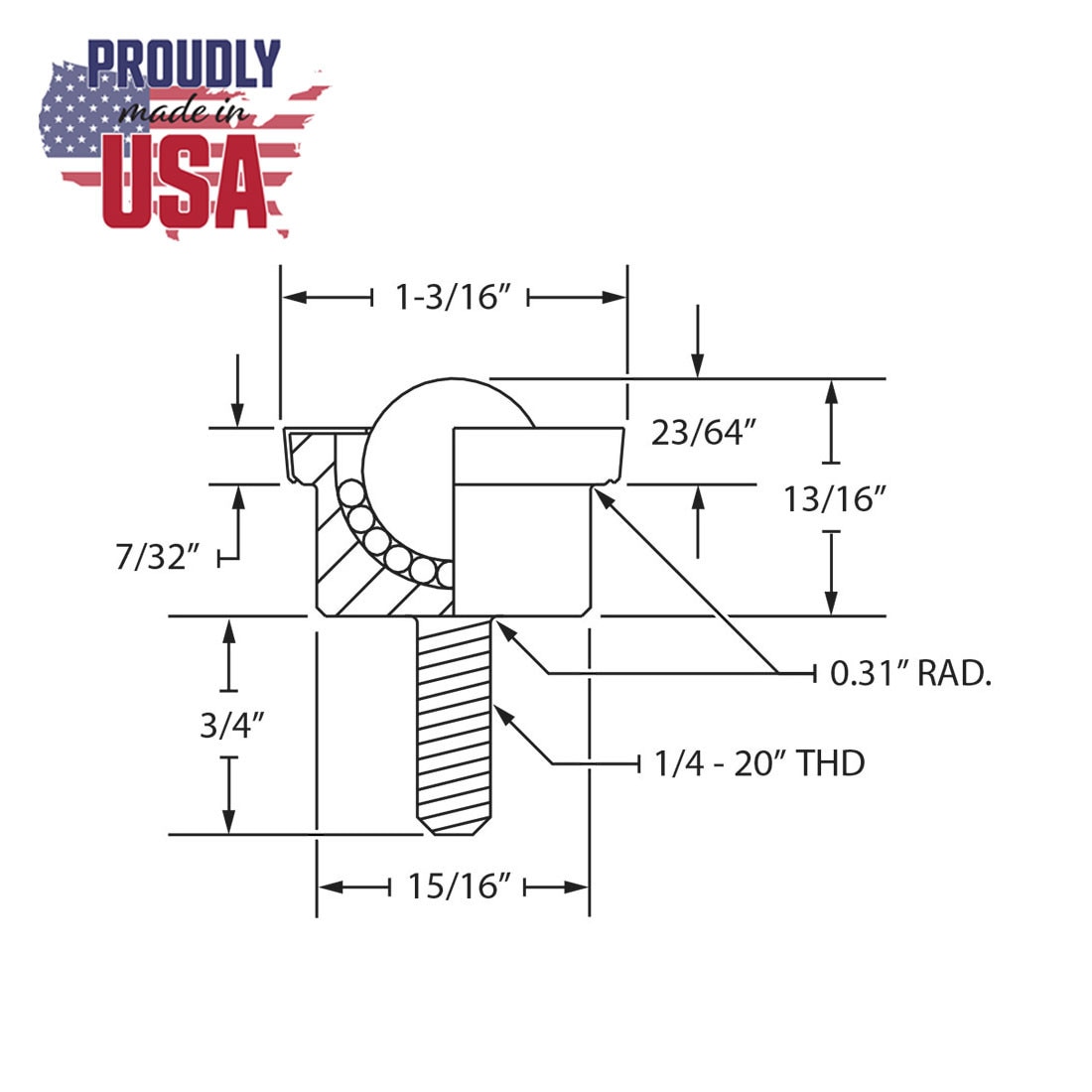

Diameter5/8" Ball Diameter
Dynamic Load RatingLoad Rating Ball Down: 16 lbs per caster; Load Rating Ball Up: 33 lbs per caster
FinishHousing Finish: Silver
HeightMounting Height: 13/16"
Housing MaterialCarbon Steel
MaterialBall Material: Carbon Steel

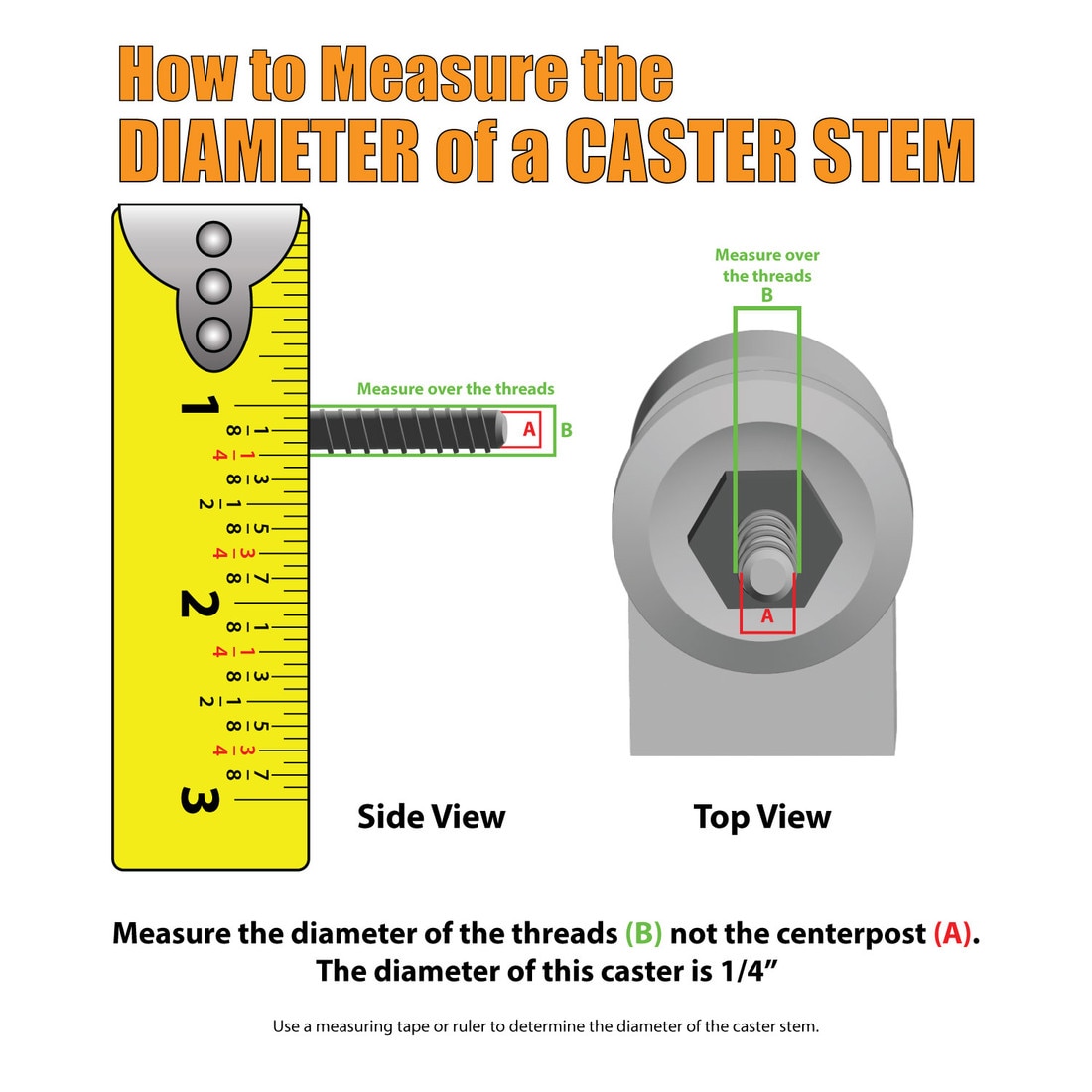

Mounting HardwareMounting Options: 1/4-20 x 1" LongThreaded Stem
Product Weight.15 lbs per piece
TypeCaster Type: Omni-Directional
Wheel ColorSilver
Wheel Material InformationMade from Carbon, Manganese, Phosphorous and Sulphur Non-Corrosion Resistance
