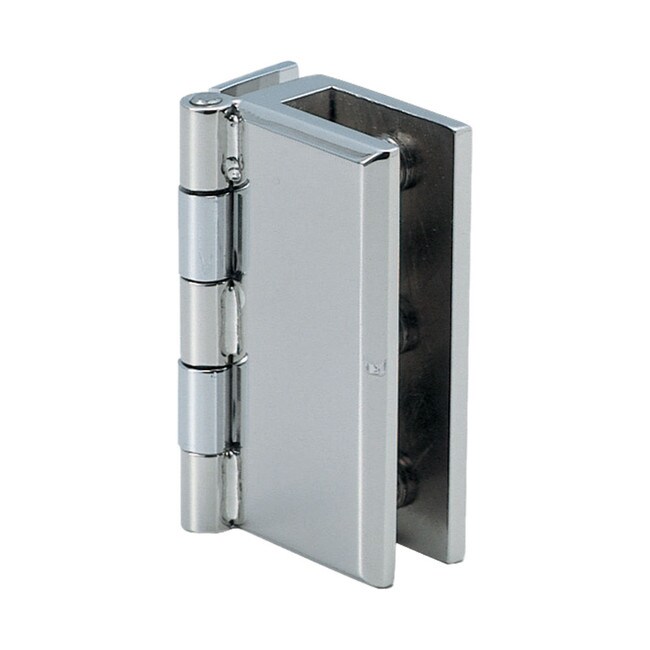

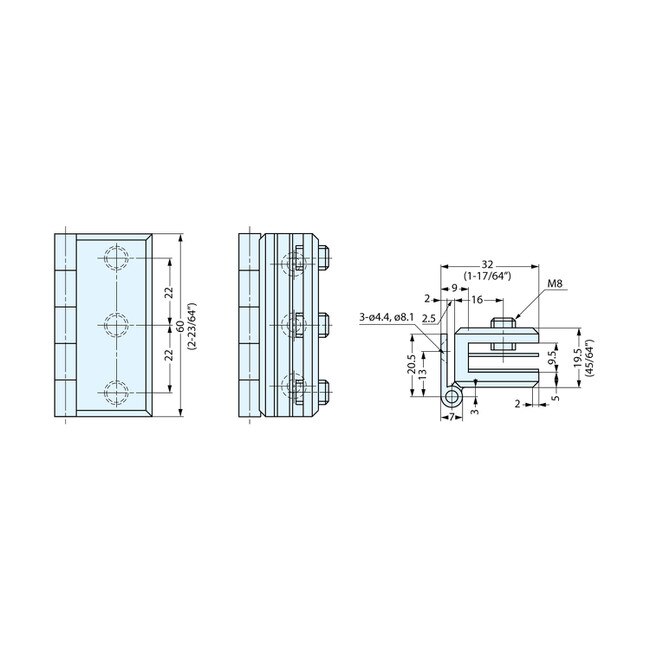

Sugatsune Glass Door Hinge | XL-GH01-600 Series

Hover over image to zoom in

SKU: XL-GH01-600

Brand: Sugatsune
Height: 2.36 in (60 mm) | Max Door Height: 51.18 in (1300 mm)
Width: 1.26 in (32 mm) | Max Door Width: 17.72 in (450 mm)
Depth: 1.04 in (26.5 mm)
Thickness: Min Door Thickness: 0.16 in (4 mm) | Max Door Thickness: 0.24 in (6 mm)
Finish: Polished
Material: 304 Stainless Steel
Hole Info: Holes: 3
Dynamic Load Rating: Load Capacity /pair: 24.25 lbs (11 kg)
Certification: RoHS 2
Mounting Hardware: 3.5 X 20 mm 304 Stainless Steel Self tapping screw
Notes: Knuckles: 5 | Pre-drilling on glass/acrylic not required. Optimized for Glass Door Hinge.

$147.90

per piece

Our return policy

1 - 9	10 - 29	30 +
$147.90	$69.60	$60.90

This item is IN STOCK

Item ships within 1 - 2 Business Days.

Brand	Sugatsune
Certification	RoHS 2
Depth	1.04 in (26.5 mm)
Dynamic Load Rating	Load Capacity /pair: 24.25 lbs (11 kg)
Finish	Polished
Height	2.36 in (60 mm) \| Max Door Height: 51.18 in (1300 mm)
Hole Info	Holes: 3
Material	304 Stainless Steel
Mounting Hardware	3.5 X 20 mm 304 Stainless Steel Self tapping screw
Notes	Knuckles: 5 \| Pre-drilling on glass/acrylic not required.
Product Weight	.3 lbs per piece
Thickness	Min Door Thickness: 0.16 in (4 mm) \| Max Door Thickness: 0.24 in (6 mm)
Width	1.26 in (32 mm) \| Max Door Width: 17.72 in (450 mm)
