Sliding Barn Door Hardware Kits for Single Wood Doors Up to 39in W | Black Powder Coated Finish | 78in Rail Length | SDH-SW5 Series

  • Adds rustic charm and character to any space
  • Pre-drilled holes spaced 16" on center align perfectly with wall studs (standard US construction)
  • Heavy-duty steel door rollers with friction reducing wheels provide smooth, whisper quiet mot...
Read More
Step 1 - Select Function
Step 2 - Select Rail Length

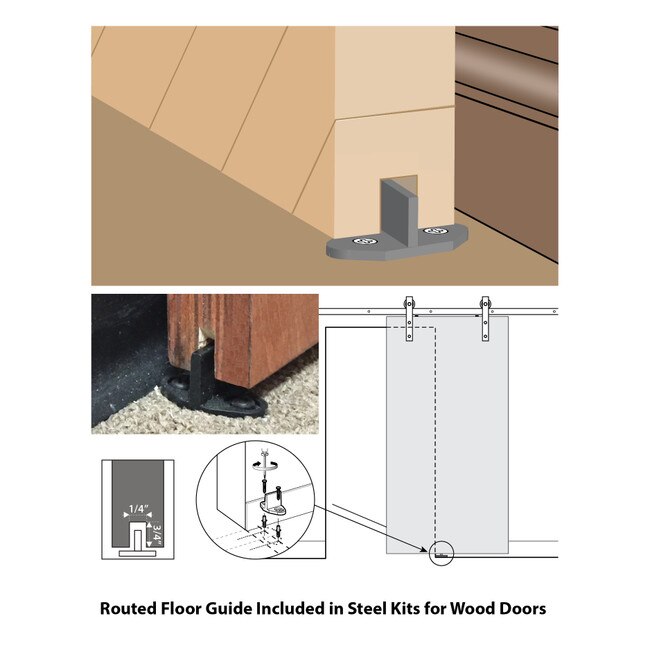

Step 3 - Select Routed Or Non Routed Floor Guide
 per set

Our return policy

Quantity Pricing

This item is IN STOCK

Item ships within 1 - 2 Business Days.

This Item is not available to buy online. A representative will contact you, by completing our "Request a Quote" option below.

Available Sample:

Color Chip

Door Thickness1-3/8" through 1-3/4"
Door TypeSingle Door
Door WidthUp to 39"
FinishBlack Powder Coated Finish
Hole Info16" Center to Center Hole Spacing

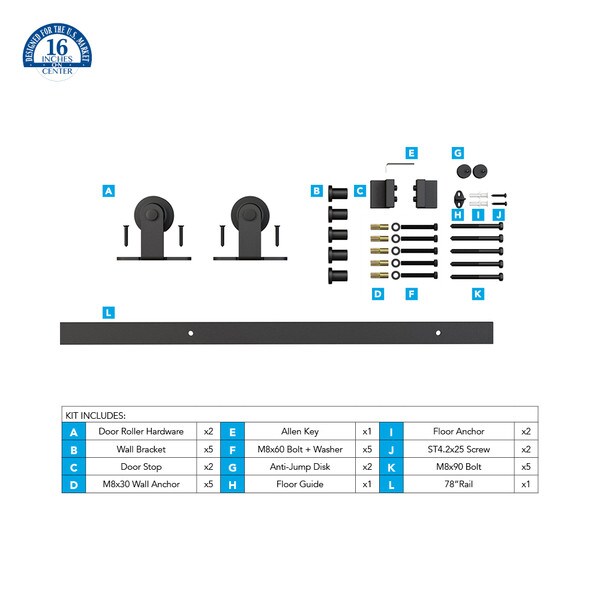

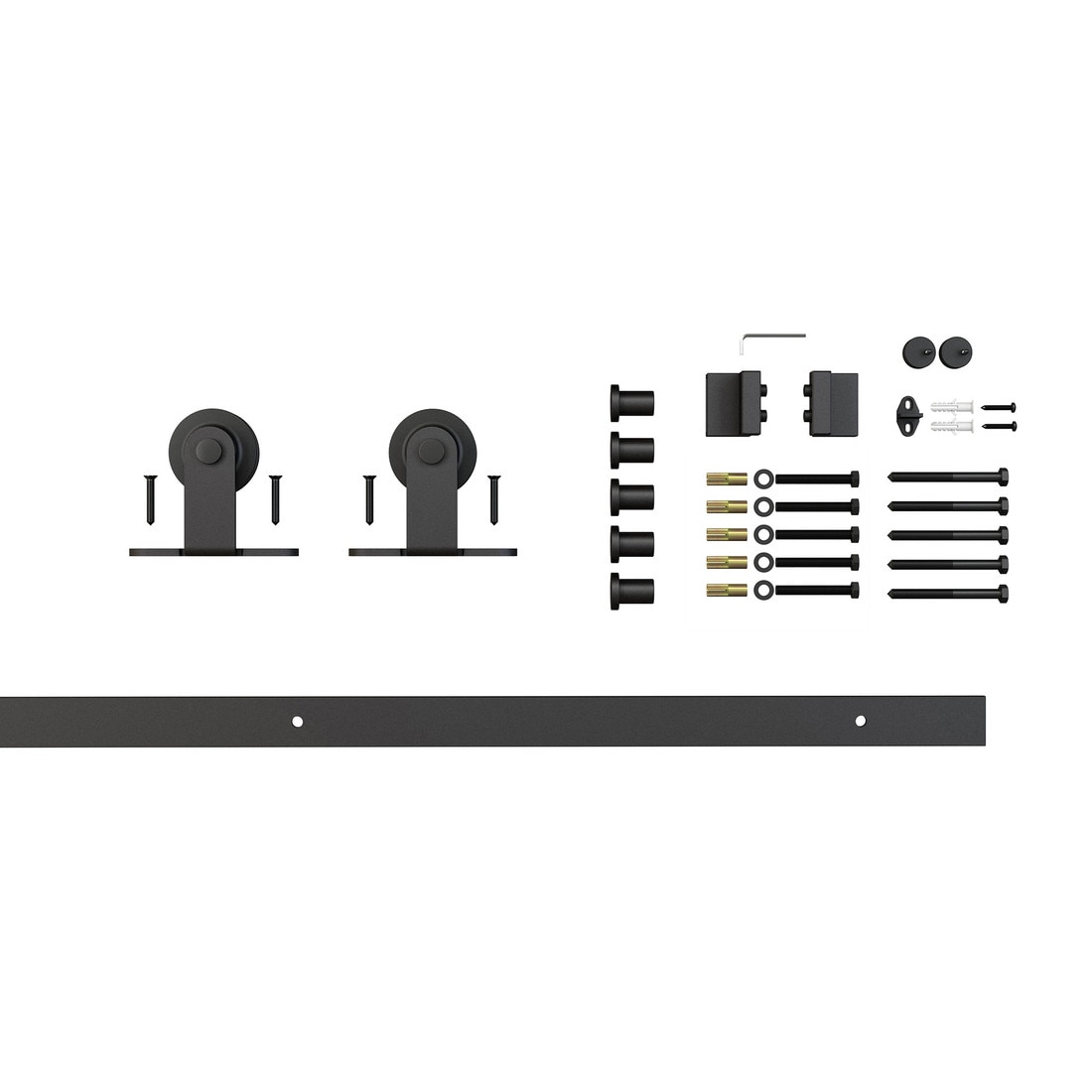

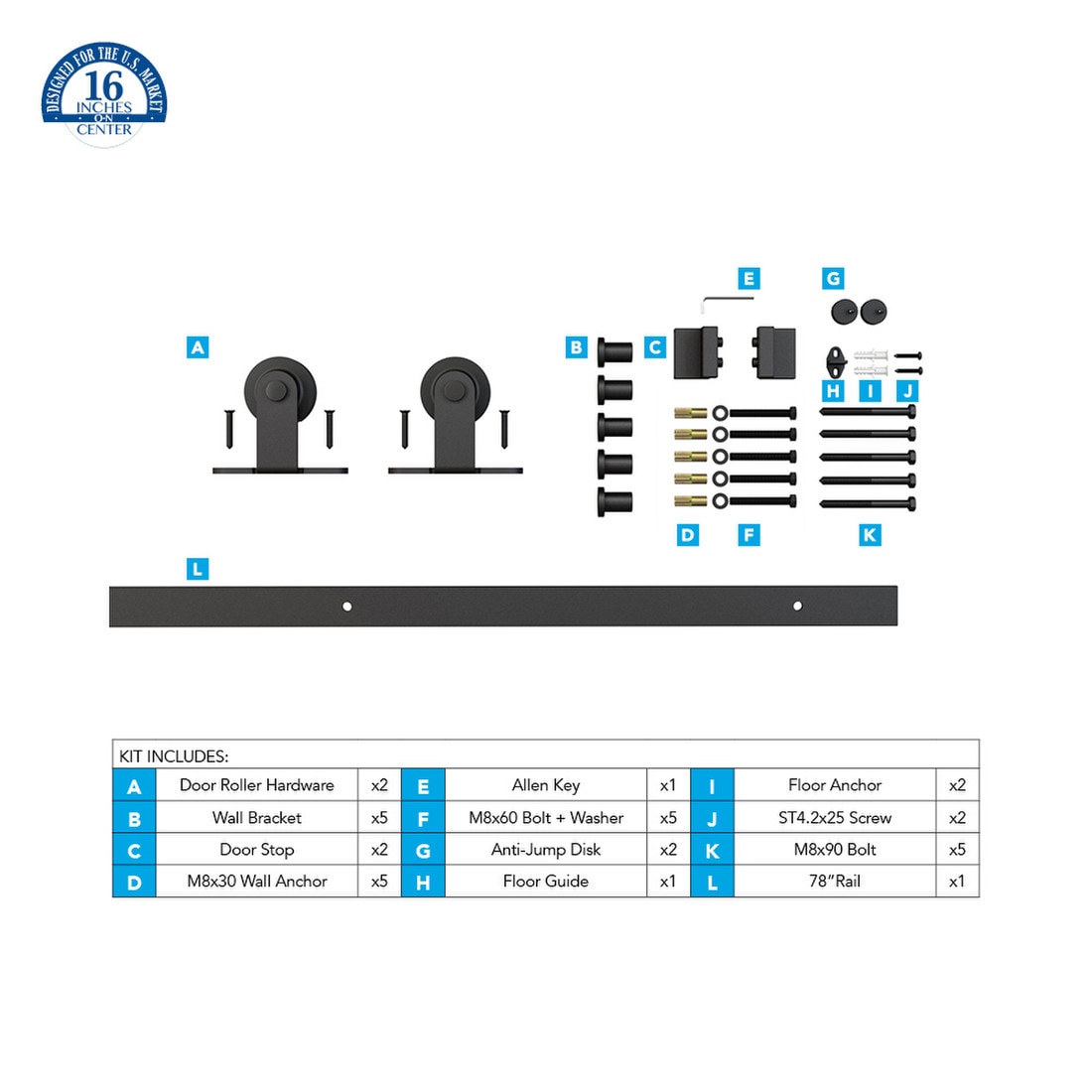

Includes1 Rail, 2 Door Rollers, 2 Door Stops, 1 Floor Guide, 5 Wall Brackets, and 2 Anti-Jump Disks
Indoor Outdoor UseIndoor Use Only
MaterialIron Rail and Components with POM Thermoplastic Wheels
Maximum Door Weight240 lbs
Product Weight20 lbs per piece
Rail Length78"
Rail Size1-1/2" H x 3/16" W
Roller Size4-5/8" L x 5-1/3" W
