Sliding Barn Door Hardware Kits for Double Wood Doors Up to 34in W | Black Powder Coated Finish | 137-3/4in Rail Length

Hover over image to zoom in

SKU: SDH-DW5-BLK

Adds rustic charm and character to any space
Pre-drilled holes spaced 16" on center align perfectly with wall studs (standard US construction)

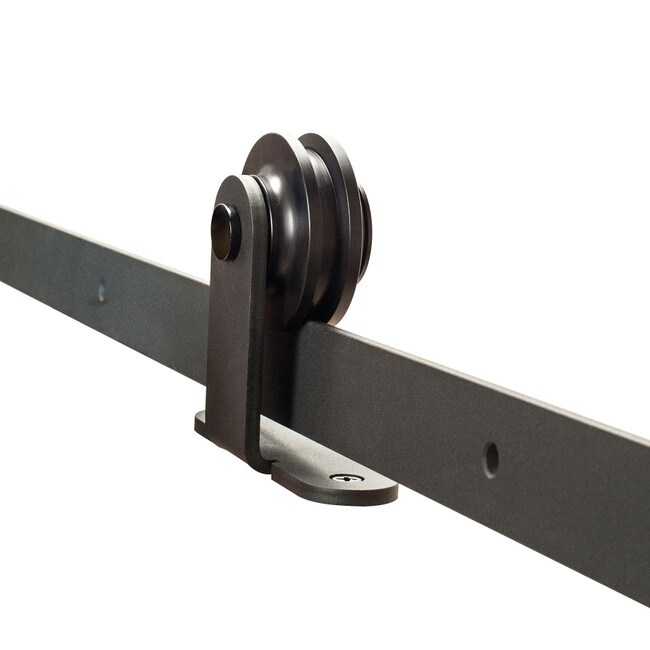

Heavy-duty steel door rollers with friction reducing wheels provide smooth, whisper quiet motion

Adds rustic charm and character to any space
Pre-drilled holes spaced 16" on center align perfectly with wall studs (standard US construction)
Heavy-duty steel door rollers with friction reducing wheels provide smooth, whisper quiet motion
Rail will not bend or bow
Works with doors 1-3/8" through 1-3/4" thick and less than 34" wide

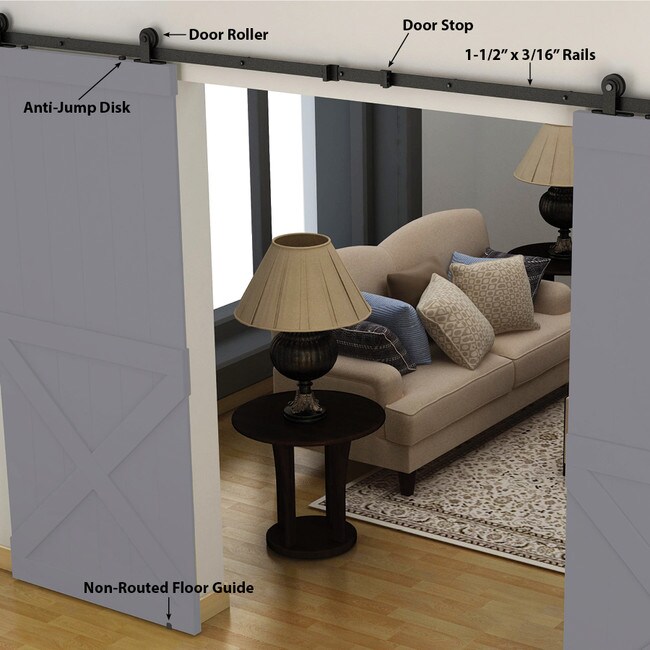

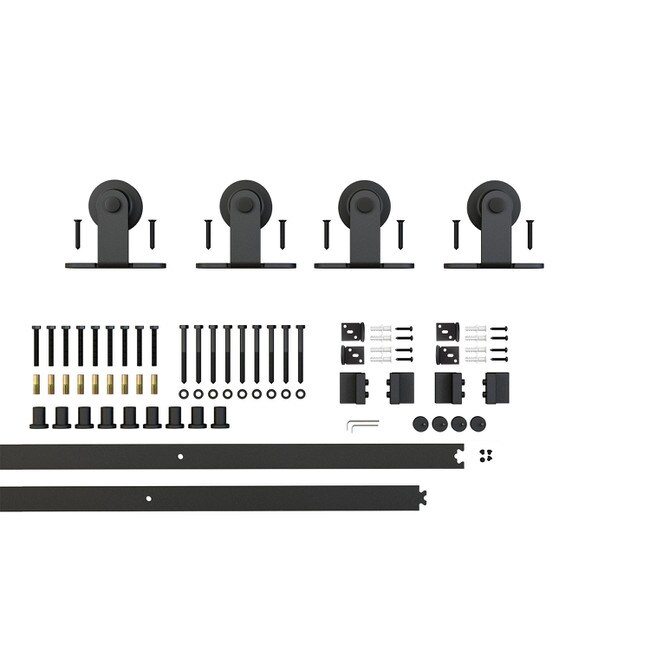

Kit includes: 2 Rails, 4 Door Rollers, 4 Door Stops, 2 Floor Guides, 9 Wall Brackets, 4 Anti-Jump Disks + Installation Hardware
Barn door not included
Strong iron rails support up to 240 lbs. per door
Complete with all fittings and step-by-step instructions for easy installation
Available in Black Powder Coated Finish
Roller size: 11-1/2" L x 1-9/16" W. Rail size: 68-7/8" L x 1-1/2" H x 3/16" W

$187.53

Step 1 - Select Routed Or Non Routed Floor Guide

Routed Or Non Routed Floor Guide : Routed

Routed Non Routed

$187.53

per set

Our return policy

Available To Order

Item ships within 1 - 2 Business Days.

Available Sample:

Color Chip

Dynamic Load Rating	Maximum Door Weight: 240 lbs per door
Finish	Black Powder Coated Finish
Hole Info	16" Center to Center Hole Spacing

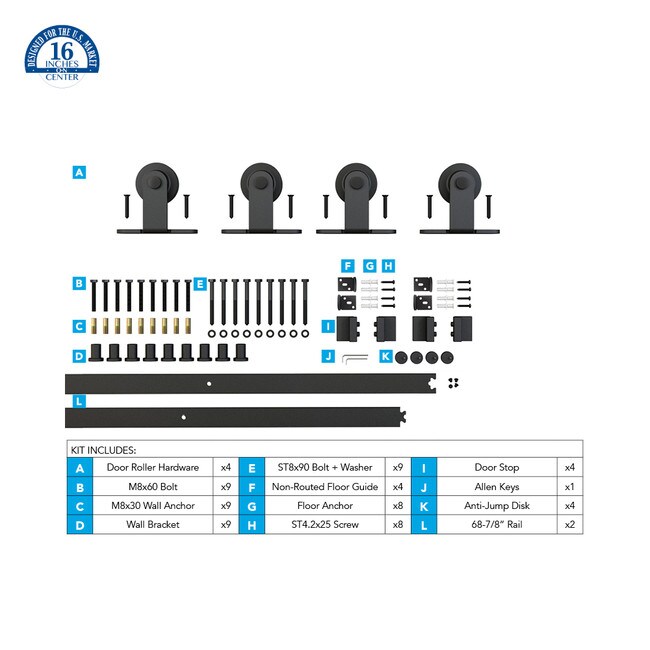

Includes	2 Rail, 4 Door Rollers, 4 Door Stops, 2 Floor Guide, 9 Wall Brackets, and 4 Anti-Jump Disks
Indoor Outdoor Use	Indoor Use Only

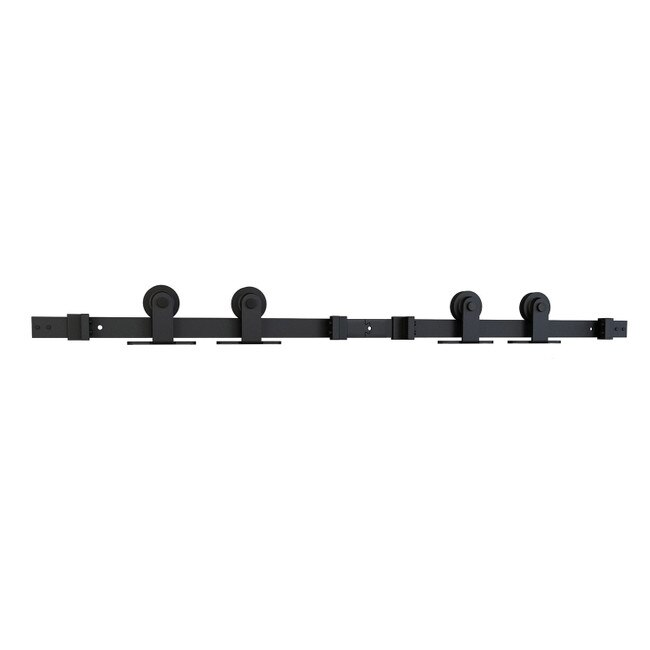

Length	Rail Length: 137-3/4" - [2] 68-7/8" Pieces
Material	Iron Rail and Components with POM Thermoplastic Wheels
Product Weight	34 lbs per piece
Rail Size	1-1/2" H x 3/16" W
Roller Size	4-5/8" L x 5-1/3" W
Thickness	Door Thickness: 1-3/8" through 1-3/4"
Type	Door Type: Double Door; Function: Standard
Width	Door Width: For 2 Doors Up to 34"

Download installation Instructions
