Sugatsune Pivot Hinge For Wooden Door

Hover over image to zoom in

SKU: PH-01

  • Original Sugatsune Hardware

Back
$115.19
$115.19
 per set

Our return policy

Quantity Pricing

1 - 45 - 1920 +
$115.19$98.56$92.40

Available To Order


This product is subject to SUGATSUNE-24

An item subject to SUGATSUNE-24 does not allow cancellations after 24 hours.

This Item is not available to buy online. A representative will contact you, by completing our "Request a Quote" option below.

Back
BrandSugatsune
CertificationRoHS 3
FinishMatte Silver

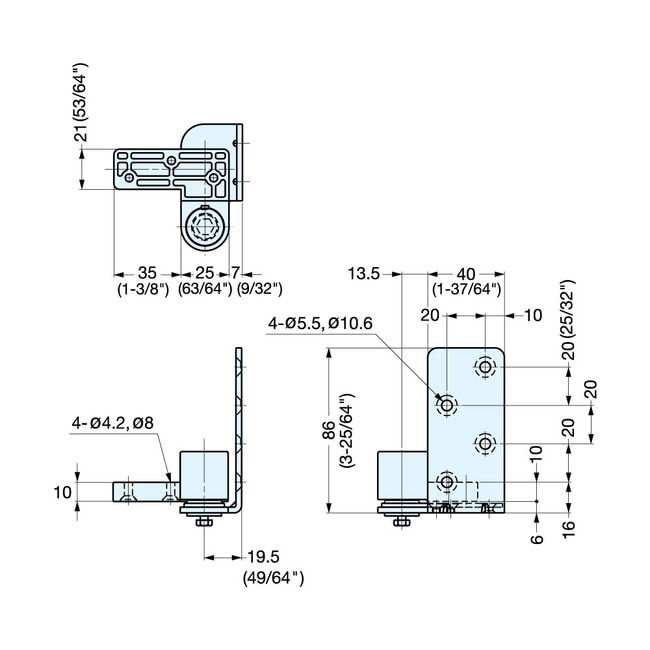

Height3.39 in (86 mm) | Door Height: Max. 2300 mm (90-34/64")
IncludesSupplied with wood screw 4 x 30
Length2.64 in (67 mm)
MaterialZinc Alloy
Mounting Hardware4 X 30 mm Steel Self tapping screw
Product Weight1.1 lbs per piece
ThicknessDoor Thickness: 33-42 mm (1-19/64" , 1-21/32")
Width2.64 in (67 mm) | Door Width: Max. 850 mm (33-15/32")
