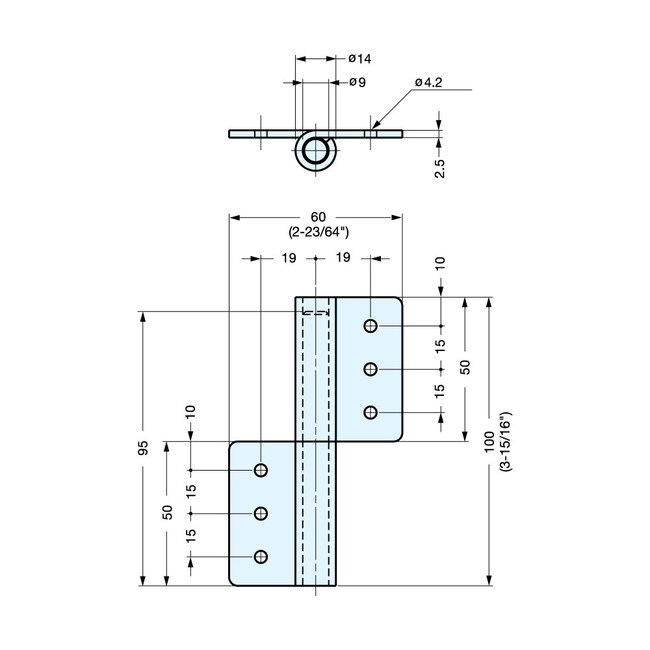

Sugatsune Lift-Off Hinge | LSX-100R Series

Hover over image to zoom in

SKU: LSX-100R

  • Original Sugatsune Hardware
  • Our lift off hinges allow cabinet doors to be easily removed from the frame without having to remove the hinges first.

Back
$13.94
$13.94
 per piece

Our return policy

Quantity Pricing

1 - 3940 - 159160 +
$13.94$11.92$11.18

Available To Order


This product is subject to SUGATSUNE-24

An item subject to SUGATSUNE-24 does not allow cancellations after 24 hours.

This Item is not available to buy online. A representative will contact you, by completing our "Request a Quote" option below.

Back
BrandSugatsune
CertificationRoHS 3
Depth0.55 in (14 mm)
Dynamic Load Rating66.14 lbs (30 kg)
FinishMirror
Height3.94 in (100 mm)
Hole InfoHoles: 6
Material304 Stainless Steel
Mounting Hardware3.5mm or #6 screw
NotesKnuckles: 2
Product Weight0.38 lbs per piece
TypeLift off
Width2.36 in (60 mm)
