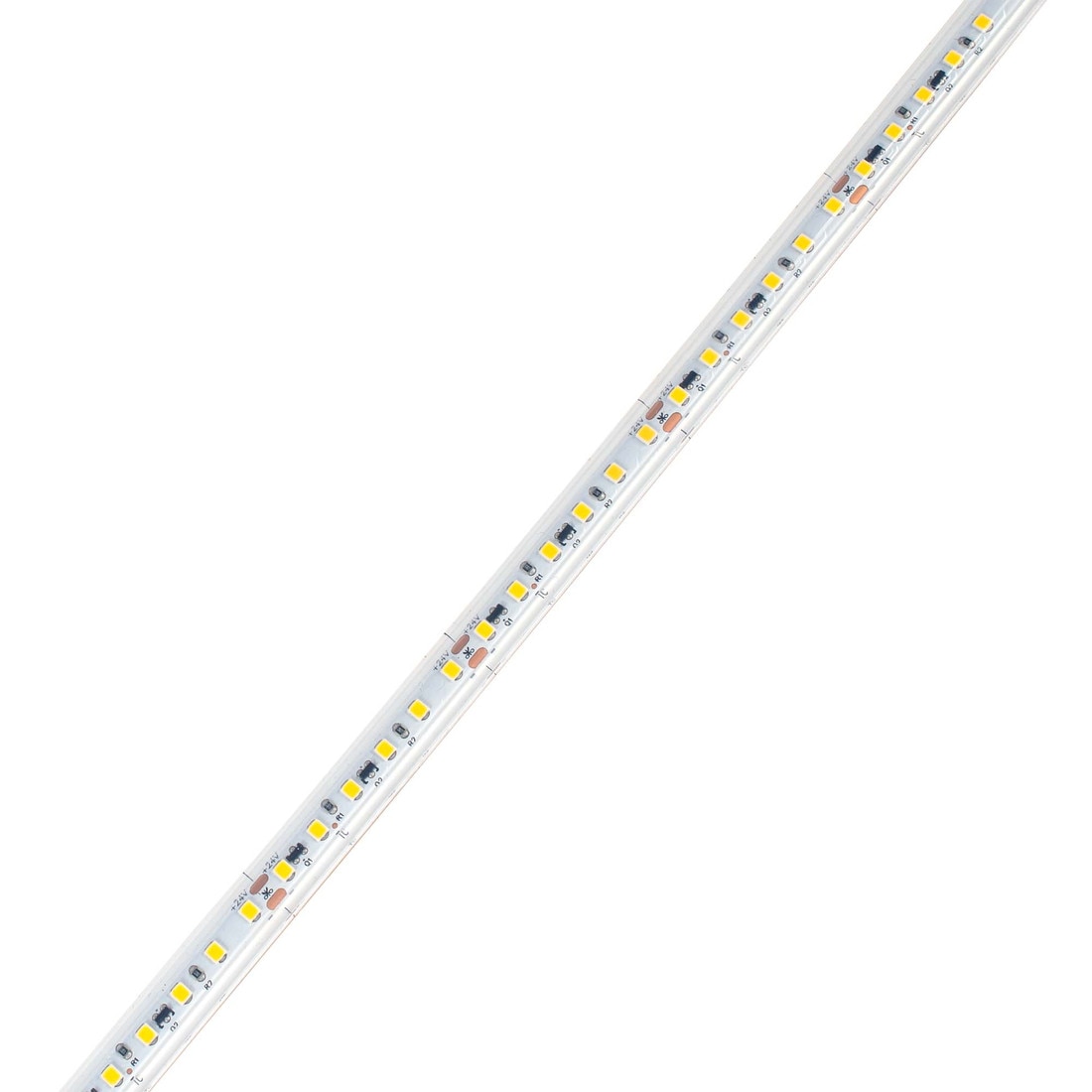

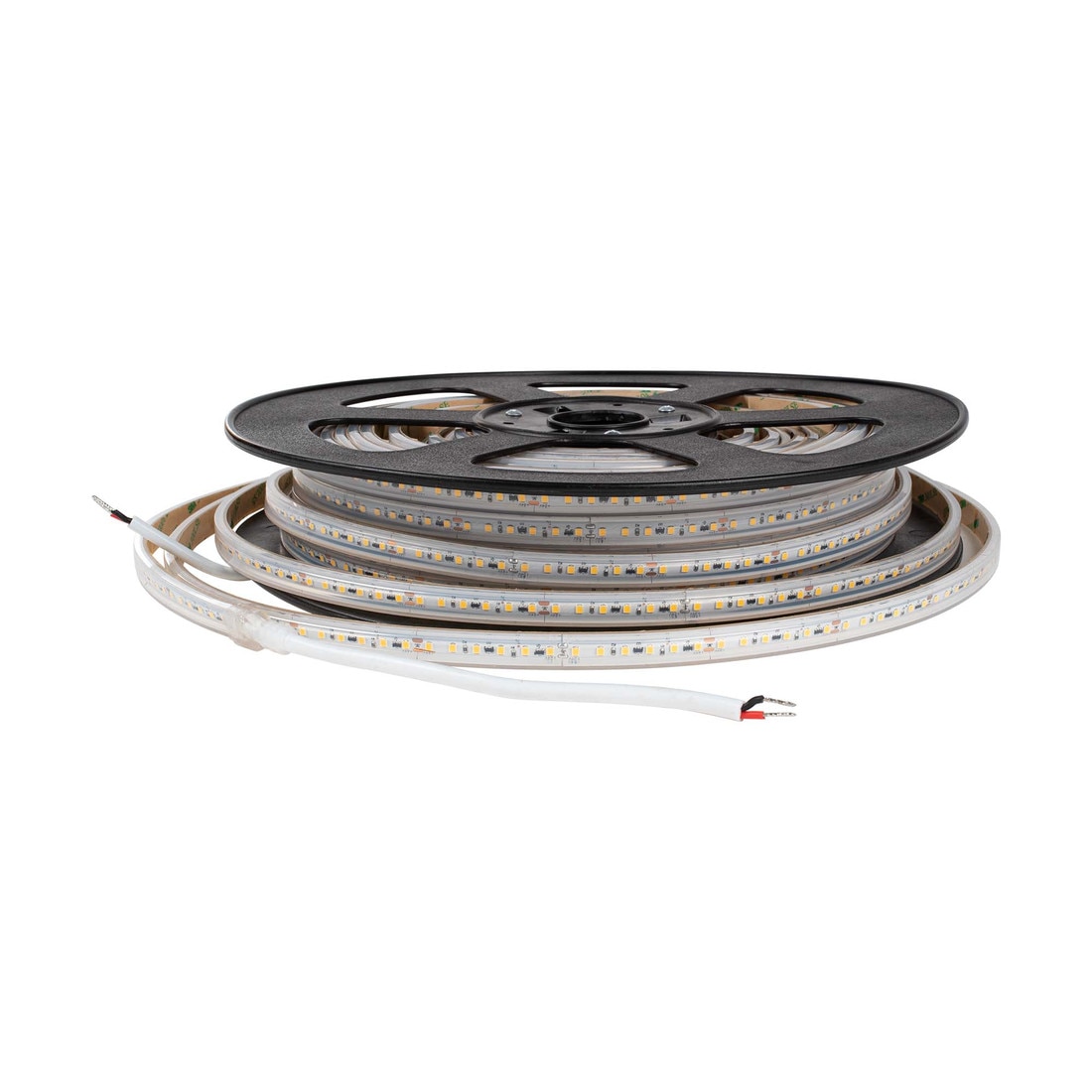

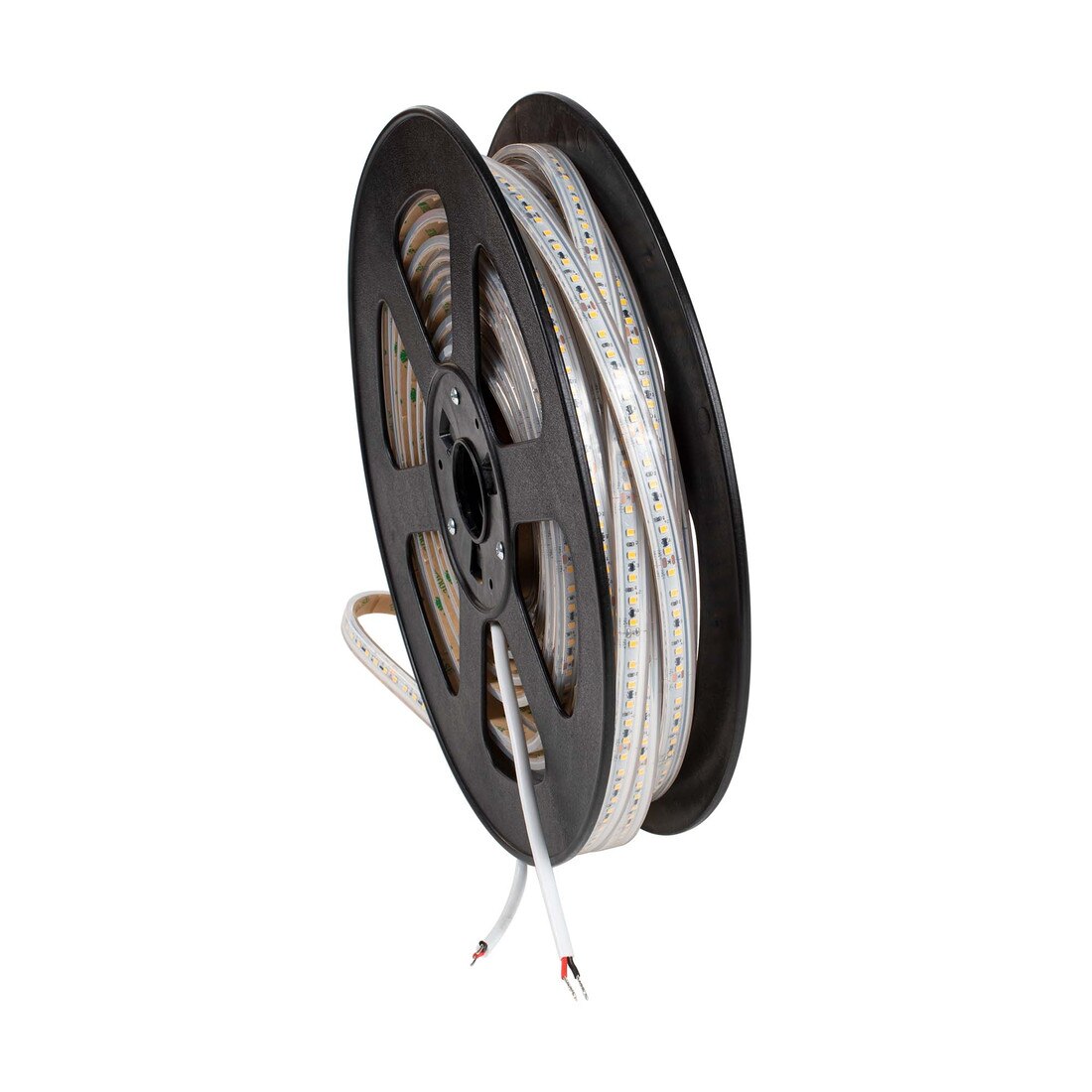

3/8in Wide Ribbon Lighting | 2835 Chip | Pure White 4000-4500K | 120 Watts 24V | IP65 UL | 98ft Length

SKU: LG24-N28120-30M-PW
Back
$366.07

$366.07


Our return policy

Quantity Pricing

This Item is not available to buy online. A representative will contact you, by completing our "Request a Quote" option below.

Back
Beam Spread120 degrees
BrandOutwater
CertificationUL
Color Rendering Index90

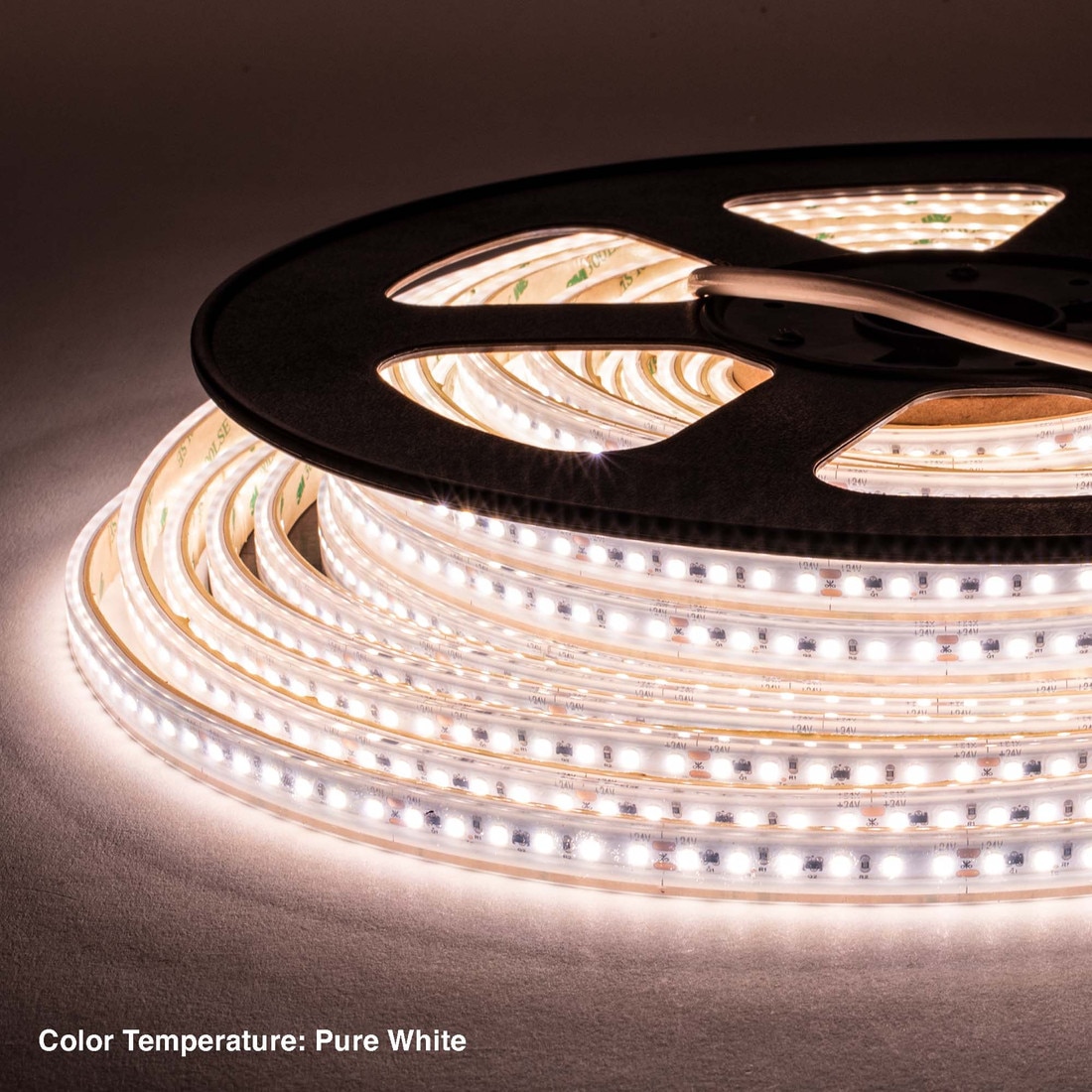

Color Temperature4000-4500K
Constant Voltage or CurrentConstant Current
DimmableYes
Housing MaterialFlexible White PCB
Input/Output CablesBare Wire On Each End
Lumens Per Fixture7770
Lumens Per Foot79
MaterialFlexible White PCB
Maximum Number Can Connect98.4 Feet
Mounting HardwareMounting Opttions: Mounting Clips and Rigid Track
NotesWaste Free Connectors Available
Number Of Led Chips3600 Chips Per 98.4 Feet
Required Accessories24V Power Supply Required
Roll Length98.4 Foot

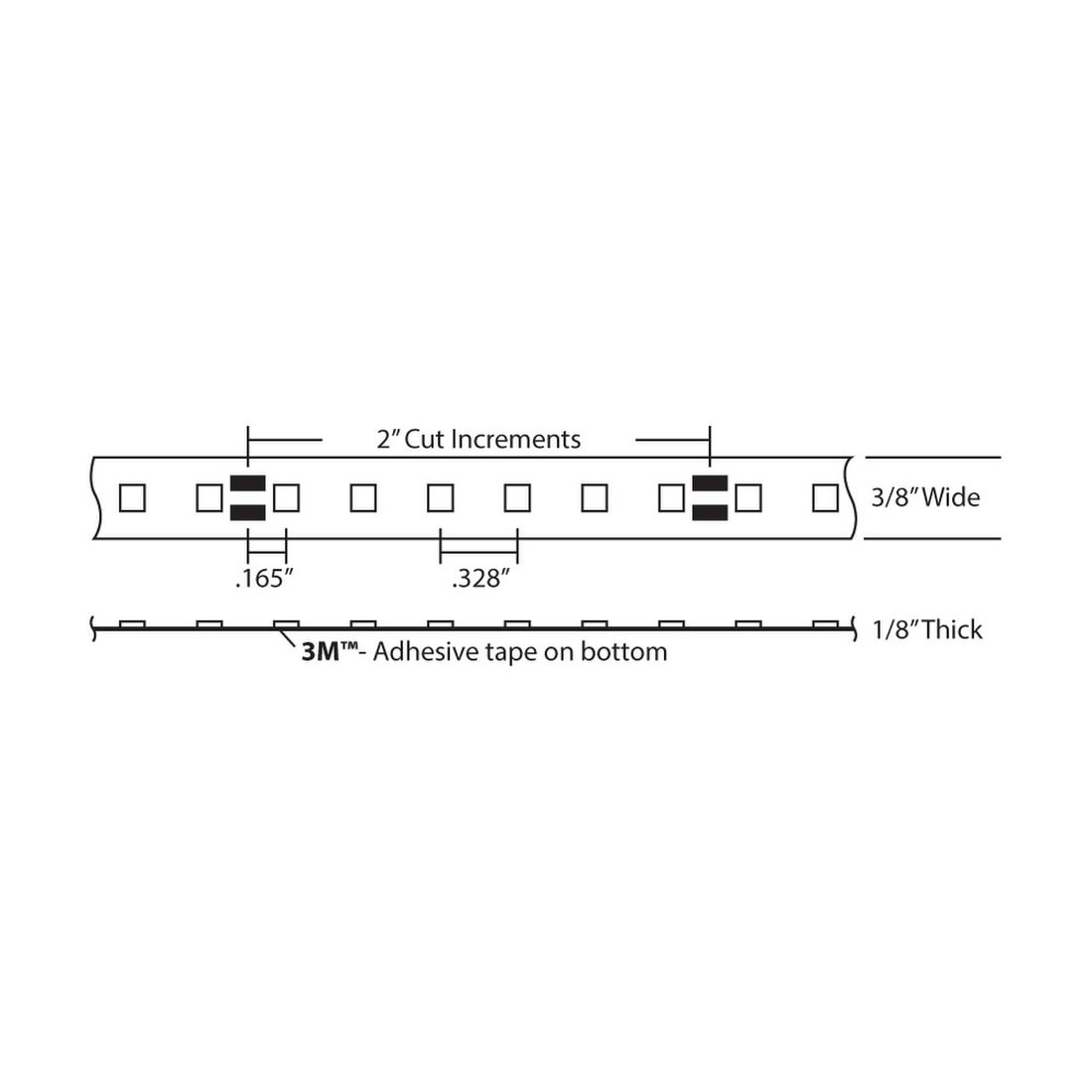

Spacing Between Chips5/16 Inch
Total Wattage120 Watts
Trimming GuidelinesCan Be Cut Every 2"
TypeChip Size: 2835
Type of Adhesive3M
Type of ConnectionBare Wire On Each End
Voltage24V
Warranty3 Years
Watts Per Fixture120 Watts
Watts per Foot1.22 Per Foot
Width3/8 Inch
Wire Gauge20AWG
