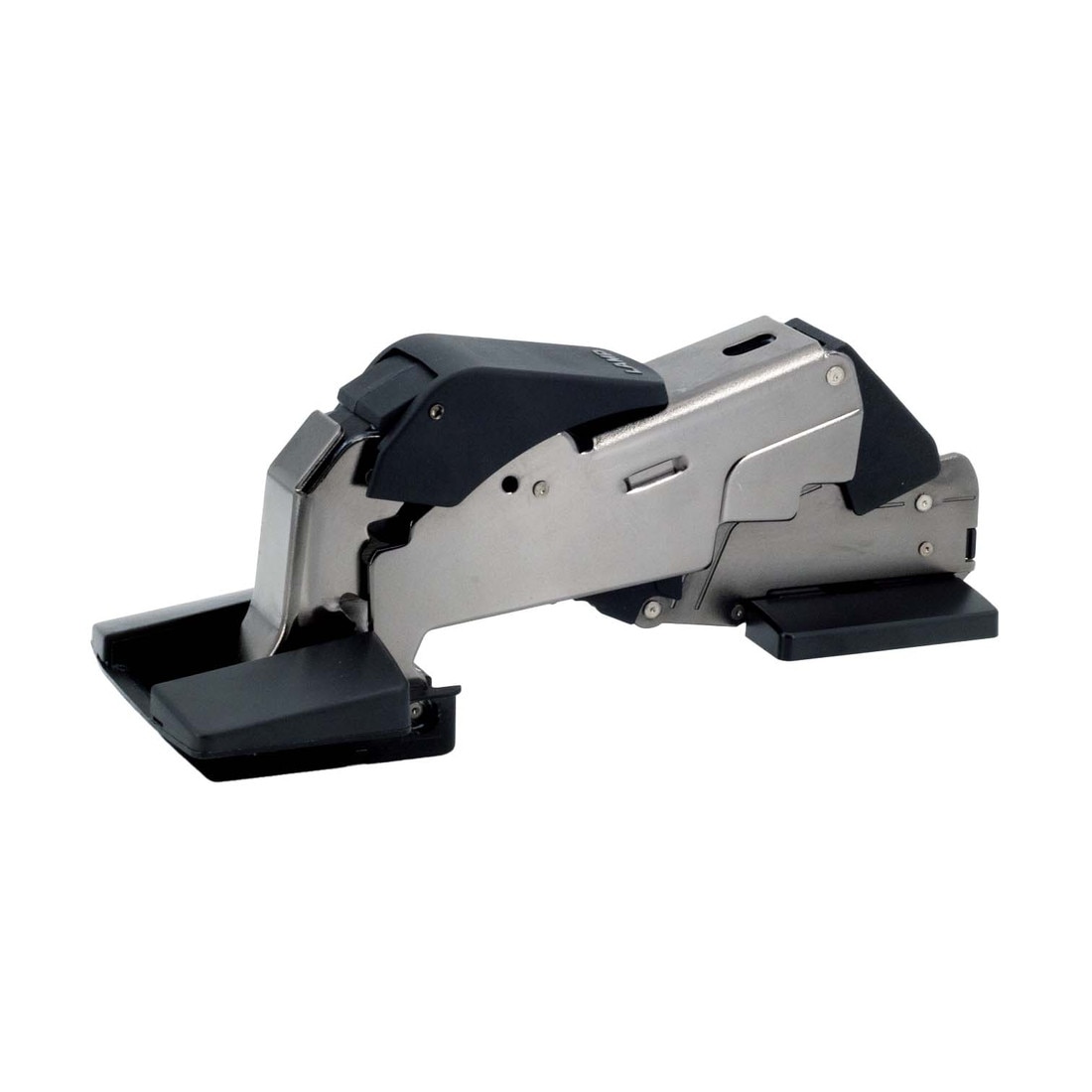

Sugatsune Black Nickel Heavy Duty Full 15-16" (25MM) Overlay Soft Close Hinge For Large Doors 11/16" - 1-7/16" (18-36mm) Thick
Hover over image to zoom in
| Brand | Sugatsune |
|---|---|
| Certification | RoHS 3 |
| Degree | Max Opening Angle (degree): 160 |
| Diameter | Bore Diamater: 72 x 44 mm |
| Dynamic Load Rating | Load Capacity /pair: 55.12 lbs (25 kg) | Load Capacity /3 ea: 88.18 lbs (40 kg) |
| Finish | Black Nickel |
| Height | 3.39 in (86 mm) | Max Door Height: 94.49 in (2400 mm) |
| Includes | Mounting Plate Included |
| Length | Length of Item when closed: 5.11 in (129.7 mm) |
| Material | Steel, Zinc Alloy, Glass Filled Polyamide |
| Mounting Hardware | 5 x 18 mm Self tapping screw |
| Notes | Adjustable | Min Setback from Edge: 0.12 in (3 mm) | Max Setback from Edge: 0.31 in (8 mm) | Min Overlay: 0.83 in (21 mm) | Max Overlay: 0.98 in (25 mm) | Passed 50,000 tests |
| Product Weight | 1.56 Pounds |
| Thickness | Min. Door Thickness: 0.71 in (18 mm) | Max. Door Thickness: 1.42 in (36 mm) |
| Type | Soft-Close | Wide Angle Heavy Duty Concealed hinge |
| Width | 4.02 in (102.1 mm) | Max Door Width: 35.43 in (900 mm) |
