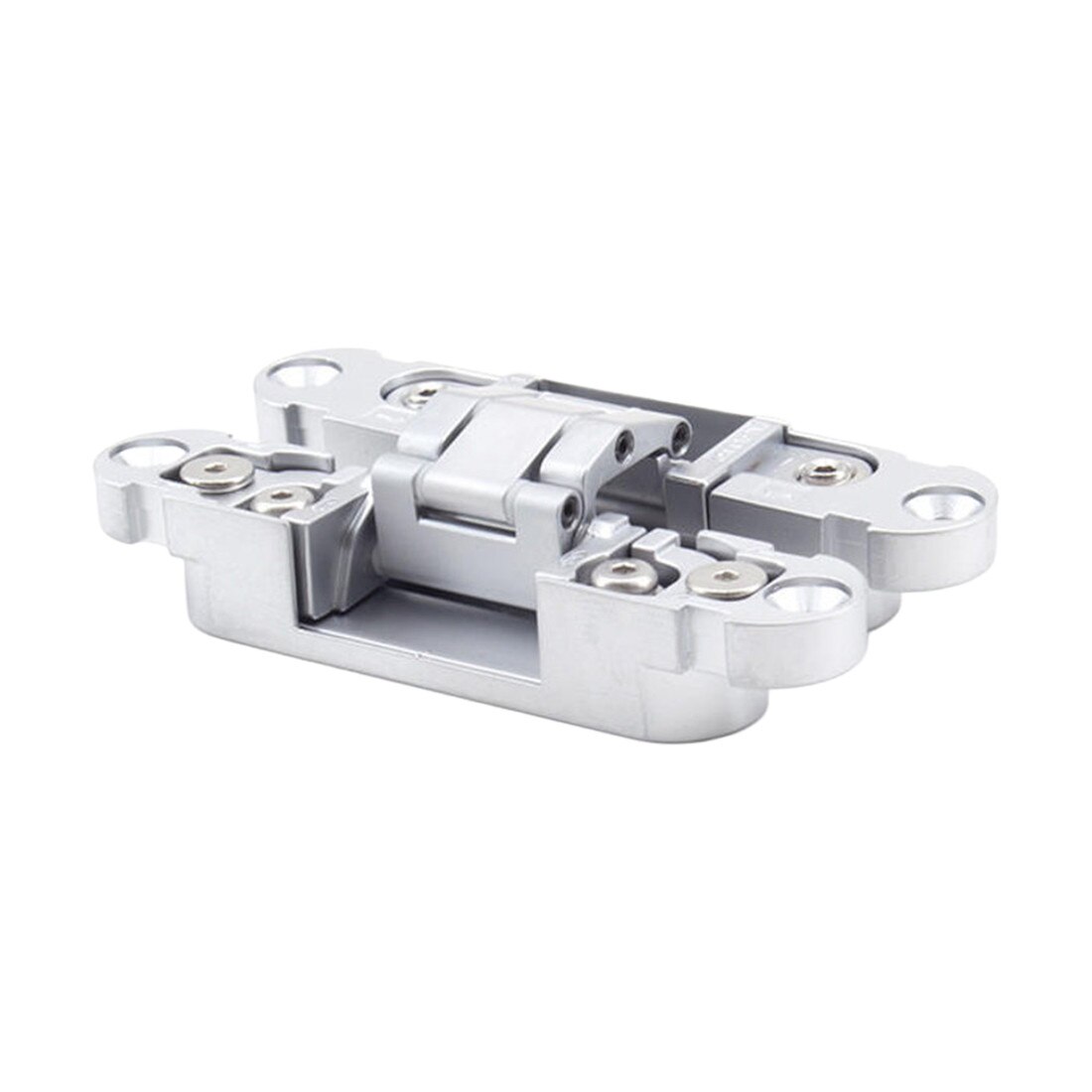

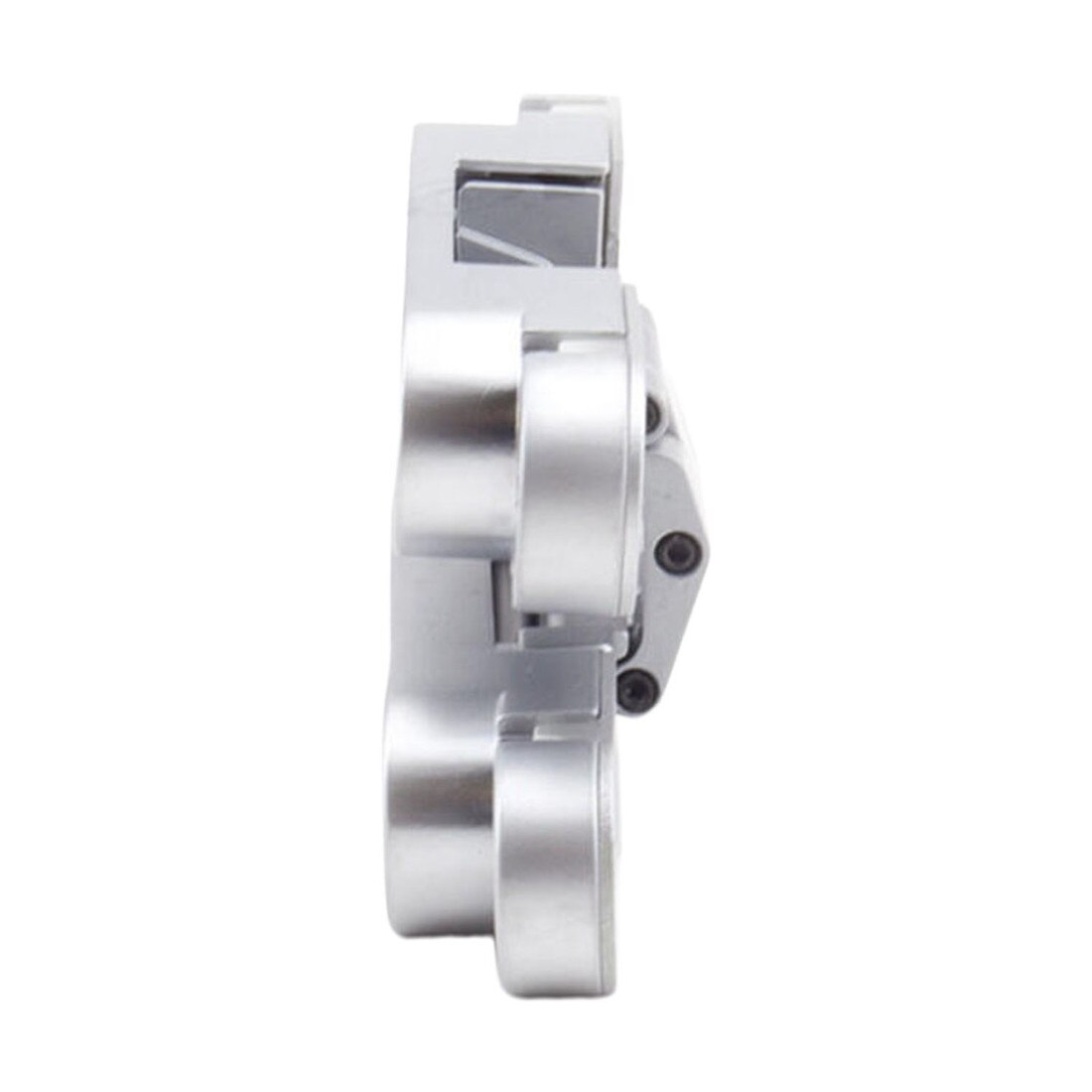

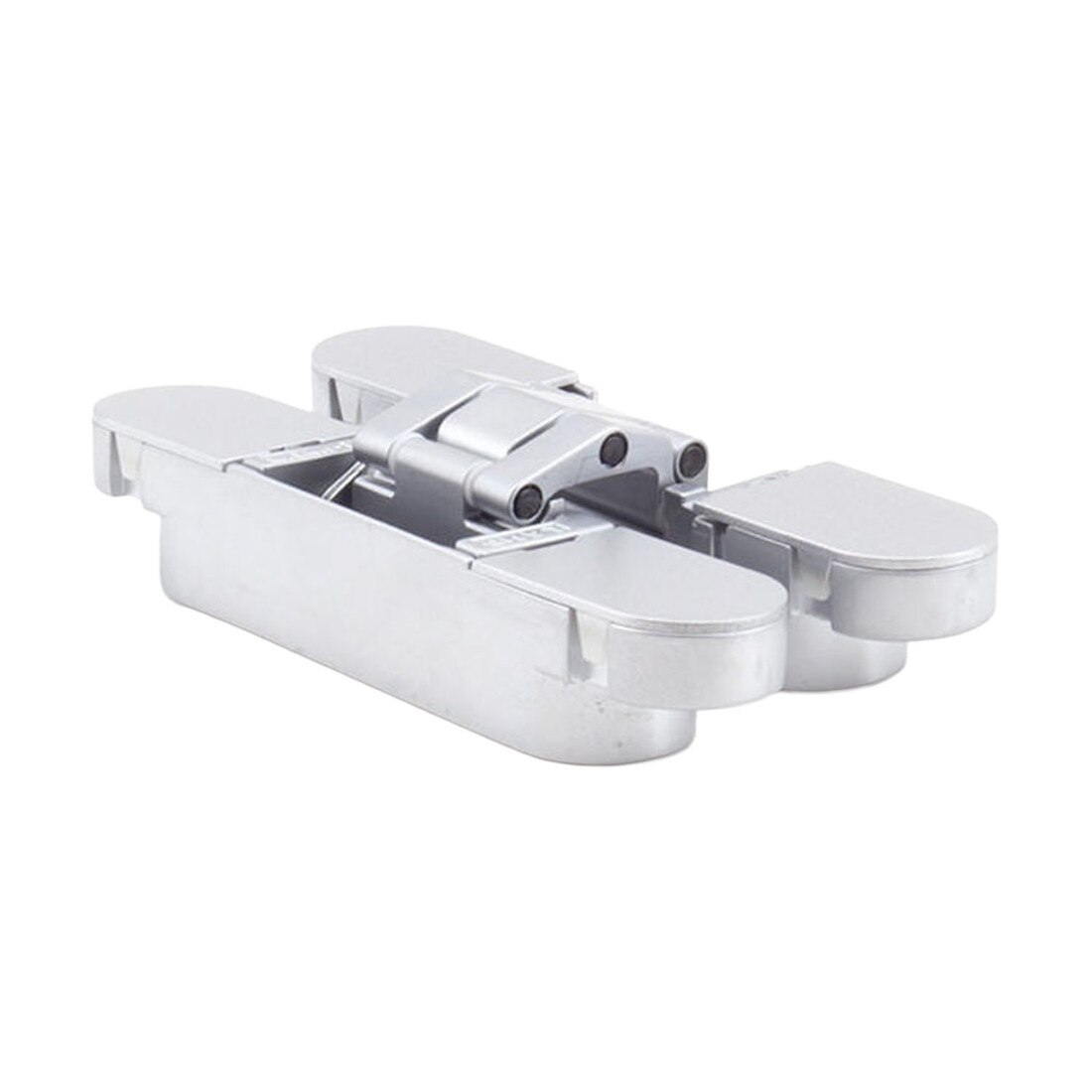

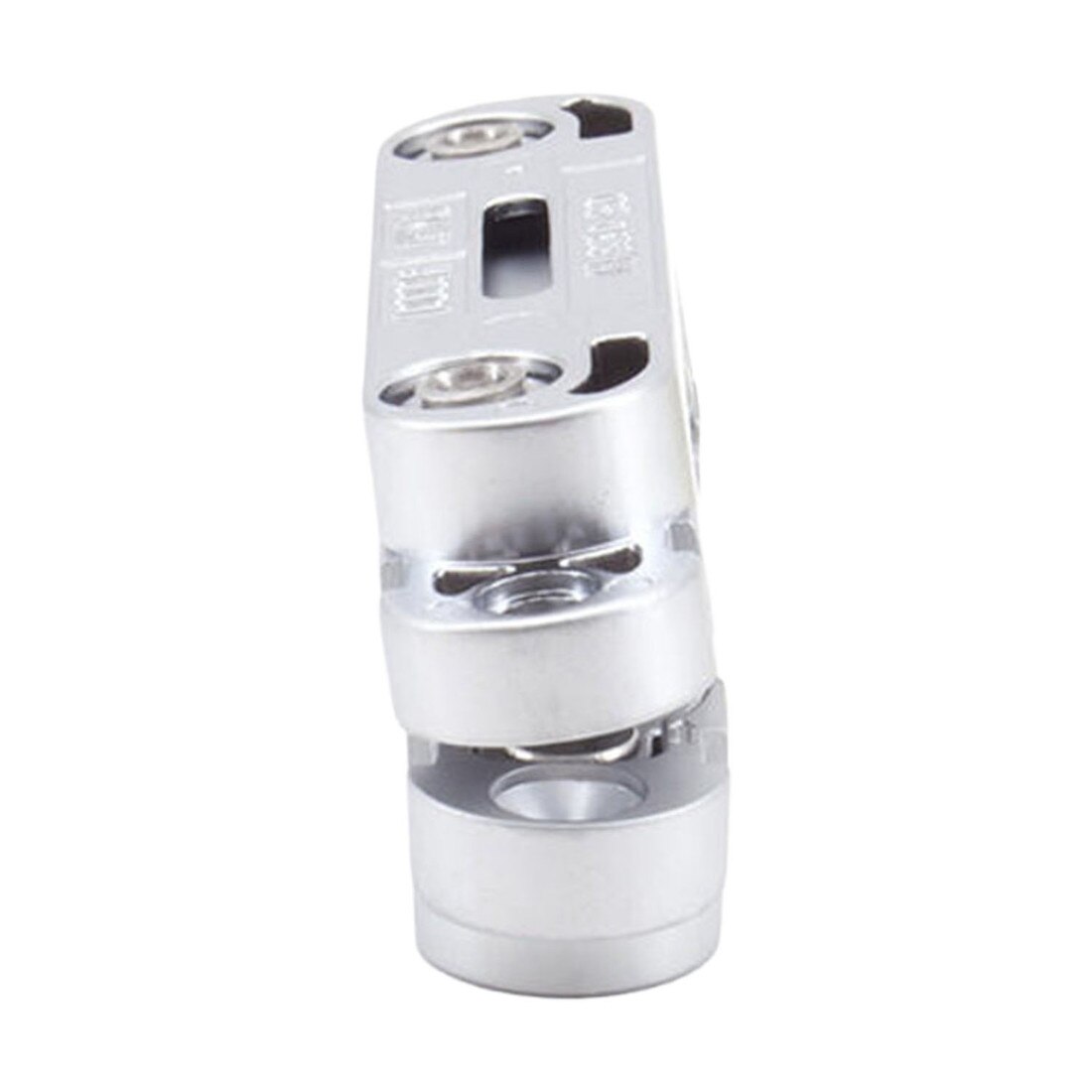

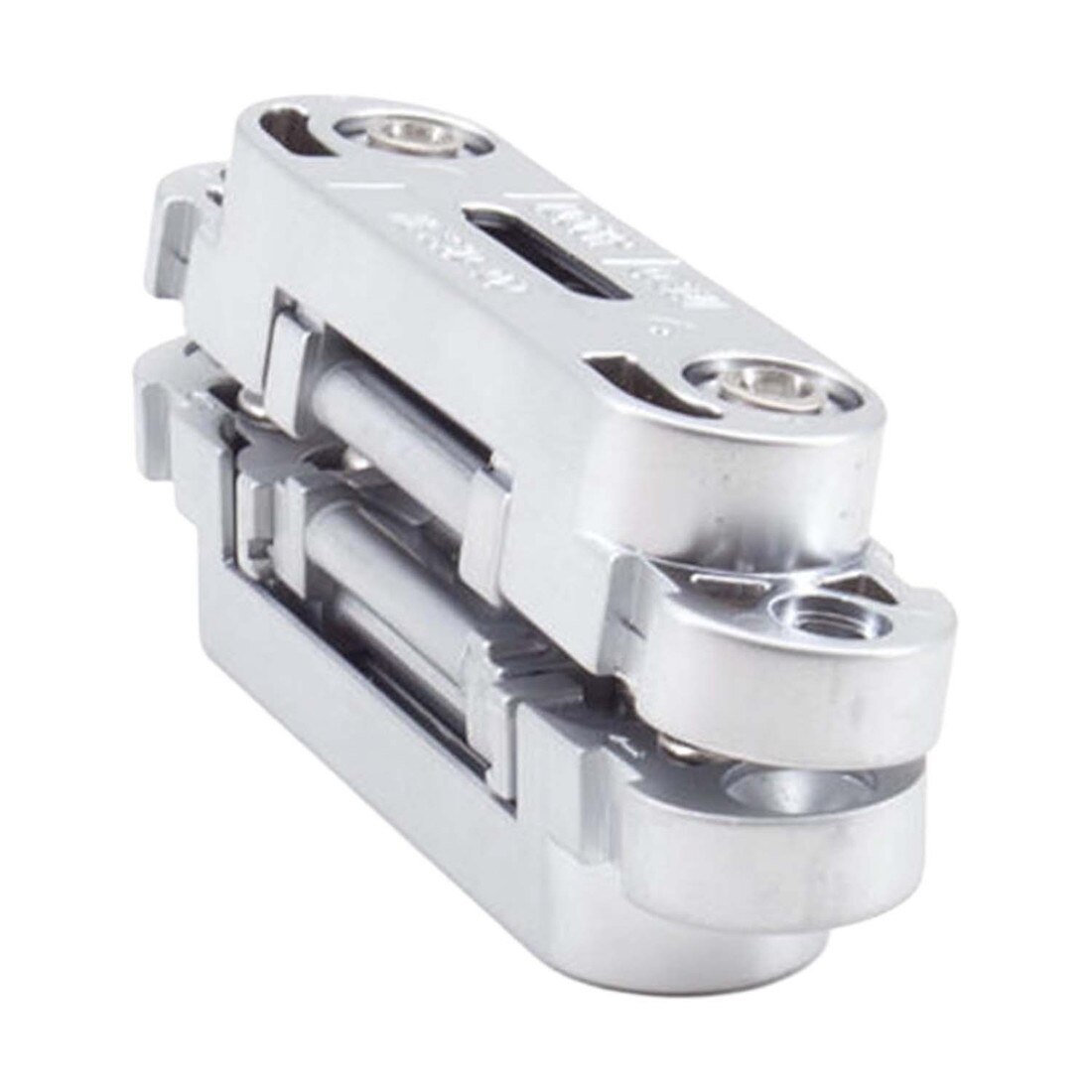

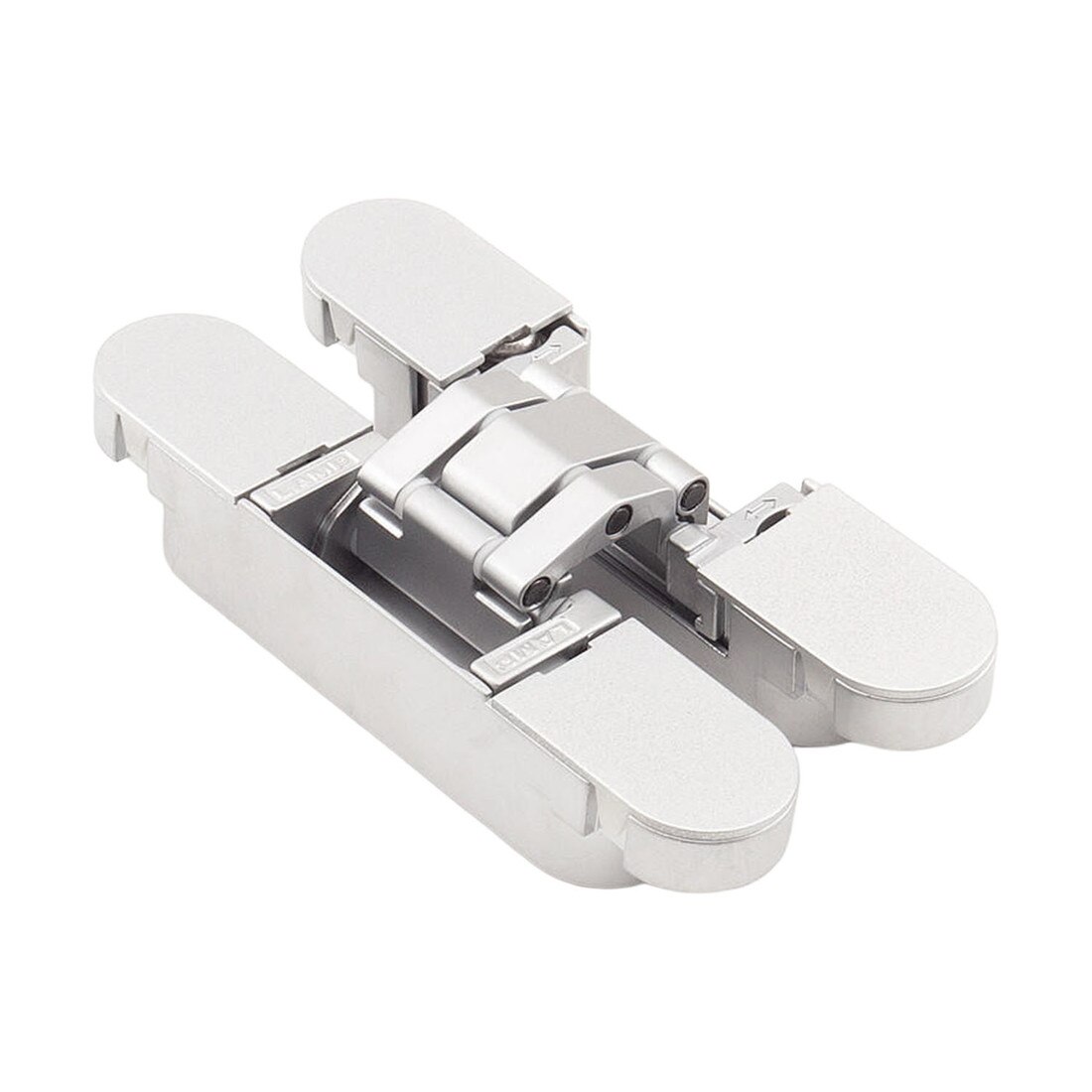

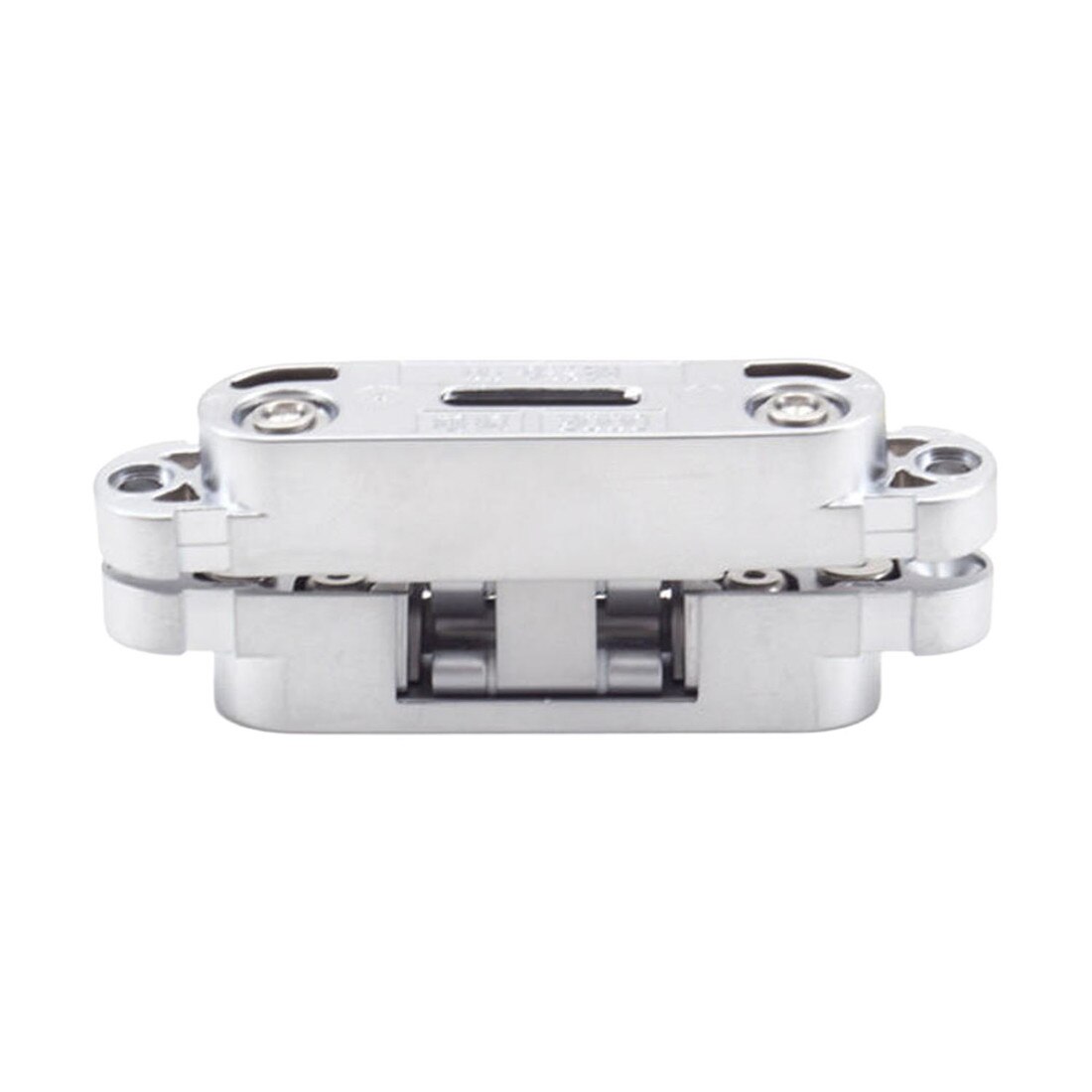

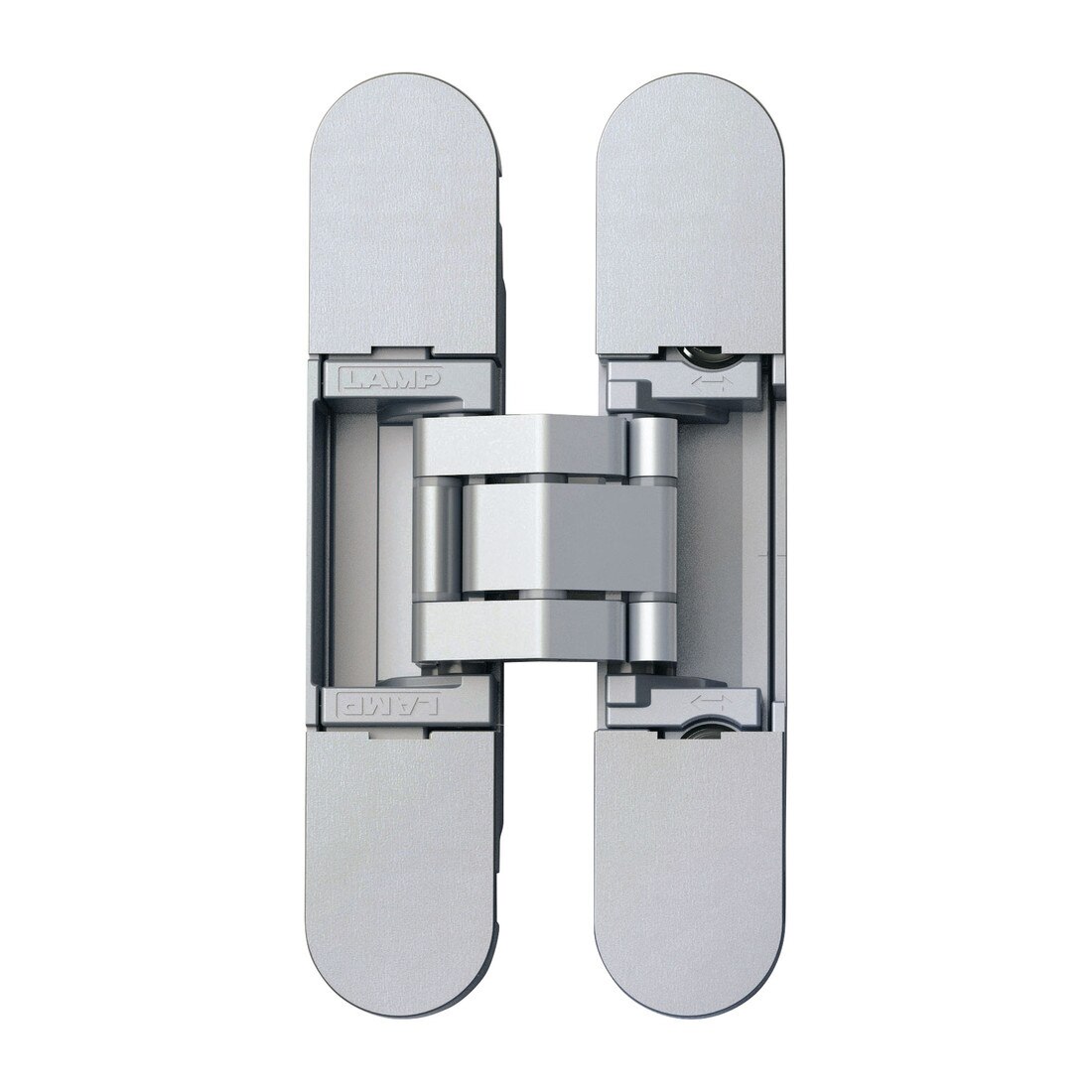

Sugatsune 3 Way Adjustable Concealed Hinge | HES3D-90 Series
Hover over image to zoom in
| Brand | Sugatsune |
|---|---|
| Certification | RoHS 3 |
| Dynamic Load Rating | Load Capacity /pair: 26.46 lbs (12 kg) | Load Capacity /3 ea: 35.27 lbs (16 kg) |
| Finish | Dull Chrome |
| Height | 3.54 in (90 mm) | Max Door Height: 59.06 in (1500 mm) |
| Hole Info | Holes: 4 |
| Length | 1.38 in (35 mm) |
| Material | Zinc Alloy |
| Mounting Hardware | 4 X 20 Stainless Steel Countersunk Wood Screw |

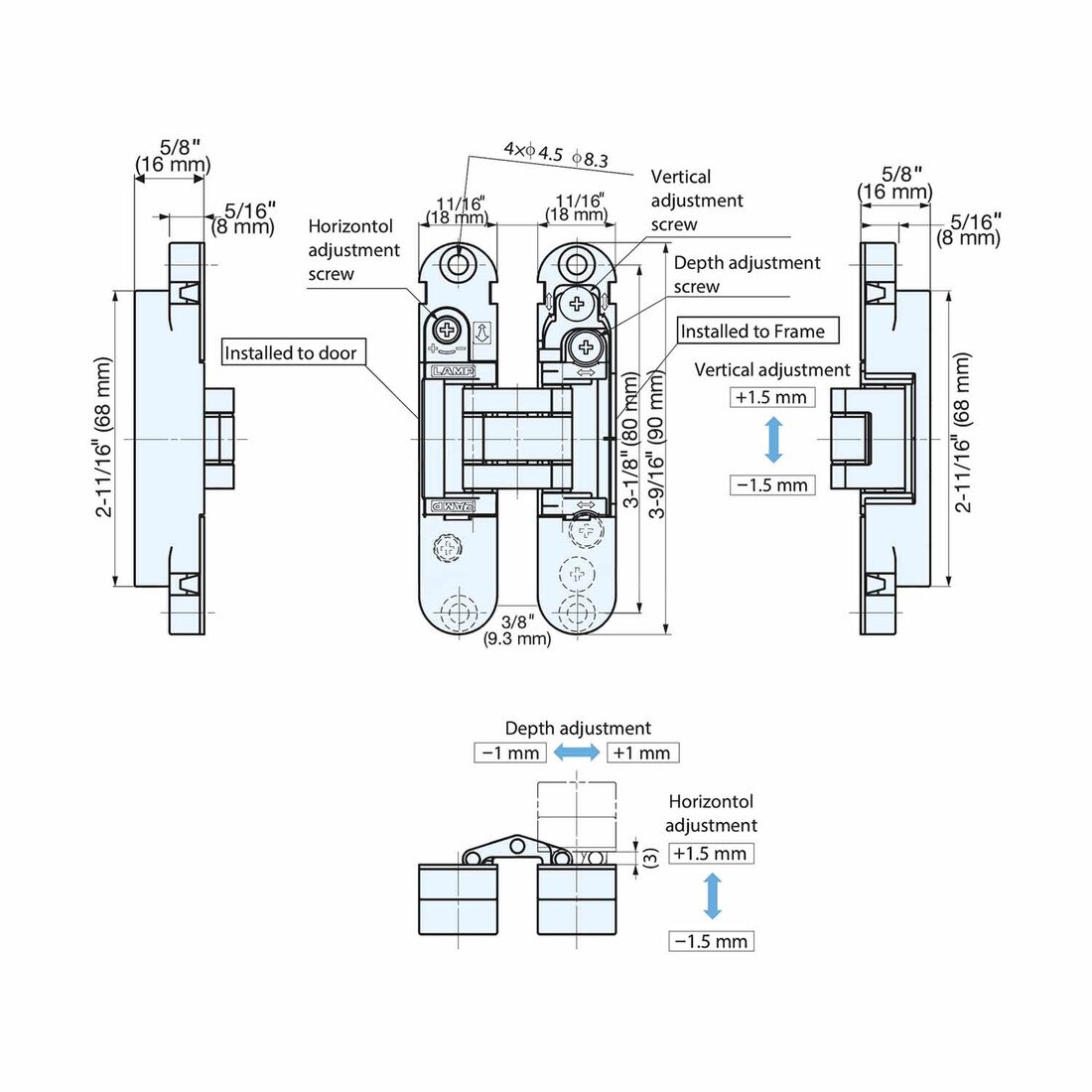

| Notes | 3-Way Adjustable |
| Required Accessories | For use with: DC-200 Damper catch | Bracket for glass doors available (sold separately) |
| Thickness | Min Door Thickness: 0.91 in (23 mm) |
| Width | 0.71 in (18 mm) | Max Door Width: 23.62 in (600 mm) |
