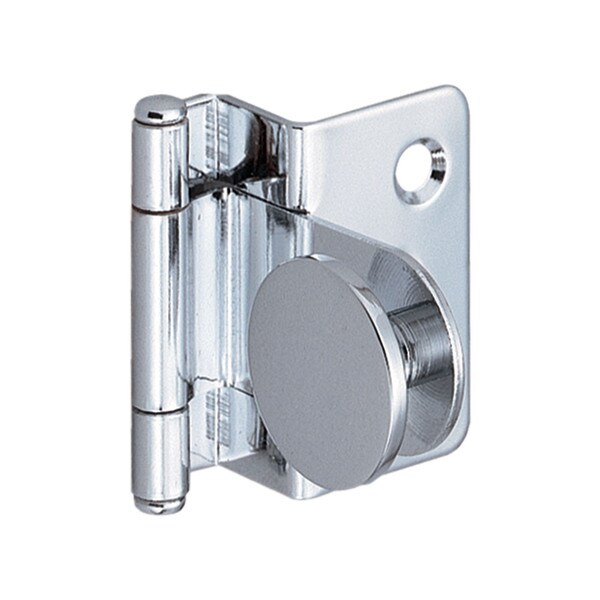

Sugatsune Chrome Plated Glass Door Hinge | GH-34/8/CR-P Series
Hover over image to zoom in
| Brand | Sugatsune |
|---|---|
| Depth | 1.2 in (30.4 mm) |
| Dynamic Load Rating | Load Capacity /pair: 8.82 lbs (4 kg) |
| Finish | Chrome |
| Height | 1.5 in (38 mm) | Max Door Height: 27.56 in (700 mm) |
| Hole Info | Holes: 3 |
| Material | Steel |
| Mounting Hardware | 3.5mm or #5 screw |
| Notes | Half Overlay | Knuckles: 3 |
| Product Weight | .04 lbs per piece |
| Thickness | Min Door Thickness: 0.16 in (4 mm) | Max Door Thickness: 0.24 in (6 mm) |
| Type | Hinge for glass/acrylic doors |
| Width | 1.34 in (34 mm) | Max Door Width: 17.72 in (450 mm) |
