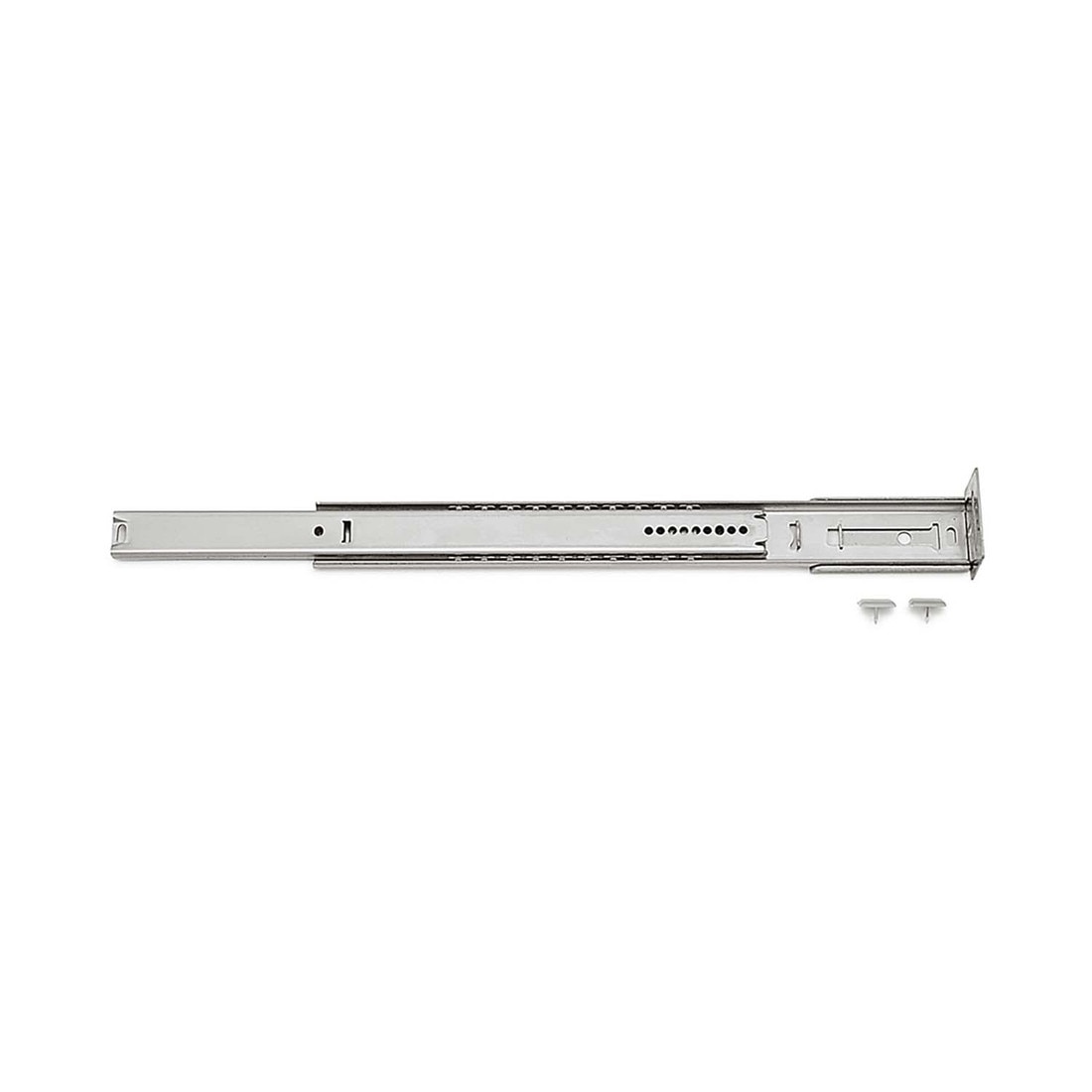

Sugatsune | ESR-2 Series | 12in | Stainless Steel Drawer Slide
Hover over image to zoom in
| Brand | Sugatsune |
|---|---|
| Certification | RoHS 3 |
| Dynamic Load Rating | 17.64 lbs (8 kg) per pair |
| Finish | Grey |
| Height | 1.91 in (48.6 mm) |
| Length | Length of Item when open: 21.25 in (539.7 mm) | Length of Item when closed: 12.75 in (323.8 mm) |
| Material | 304 Stainless Steel |
| Mounting Hardware | Binding Head M4 or #8,Pan Head M4 or #8,Truss Head M4 or #8 |
| Notes | Front Disconnect | Friction Brake Stop | This hardware has not been evaluated for use in applications where magnetic permeability is an issue, such as MRI rooms |
| Product Weight | .750 lbs per piece |
| Type | 3/4 Extension Undermount Slide | Under Mount | Non-Handed |
| Width | 1.3 in (33 mm) |
