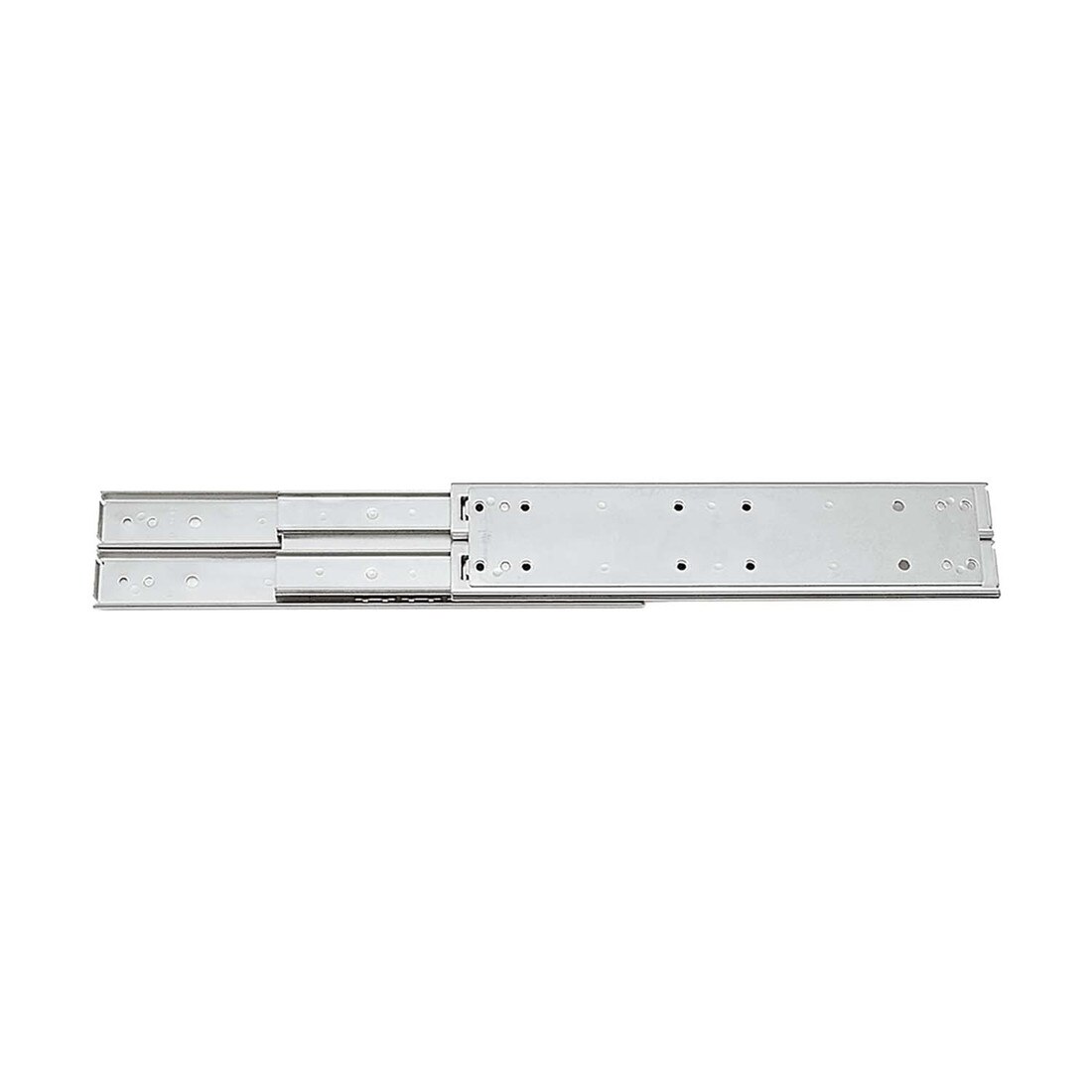

Sugatsune | ESR-10 Series | 12in | Stainless Steel Drawer Slide
Hover over image to zoom in
| Brand | Sugatsune |
|---|---|
| Certification | RoHS 2 |
| Dynamic Load Rating | 599.66 lbs (272 kg) per pair |
| Finish | Plain |
| Height | 0.91 in (23.2 mm) |
| Length | Length of Item when closed: 12.01 in (305 mm) | Length of Item when open: 24.57 in (624 mm) |
| Material | 304 Stainless Steel |
| Mounting Hardware | Binding Head M4 or #8,Pan Head M4 or #8,Truss Head M4 or #8 |
| Notes | Positive Stop | This hardware has not been evaluated for use in applications where magnetic permeability is an issue, such as MRI rooms |
| Product Weight | 3.68 lbs per piece |
| Type | Full Extension | Side Mount | Non-Handed |
| Width | 2.81 in (71.3 mm) |
