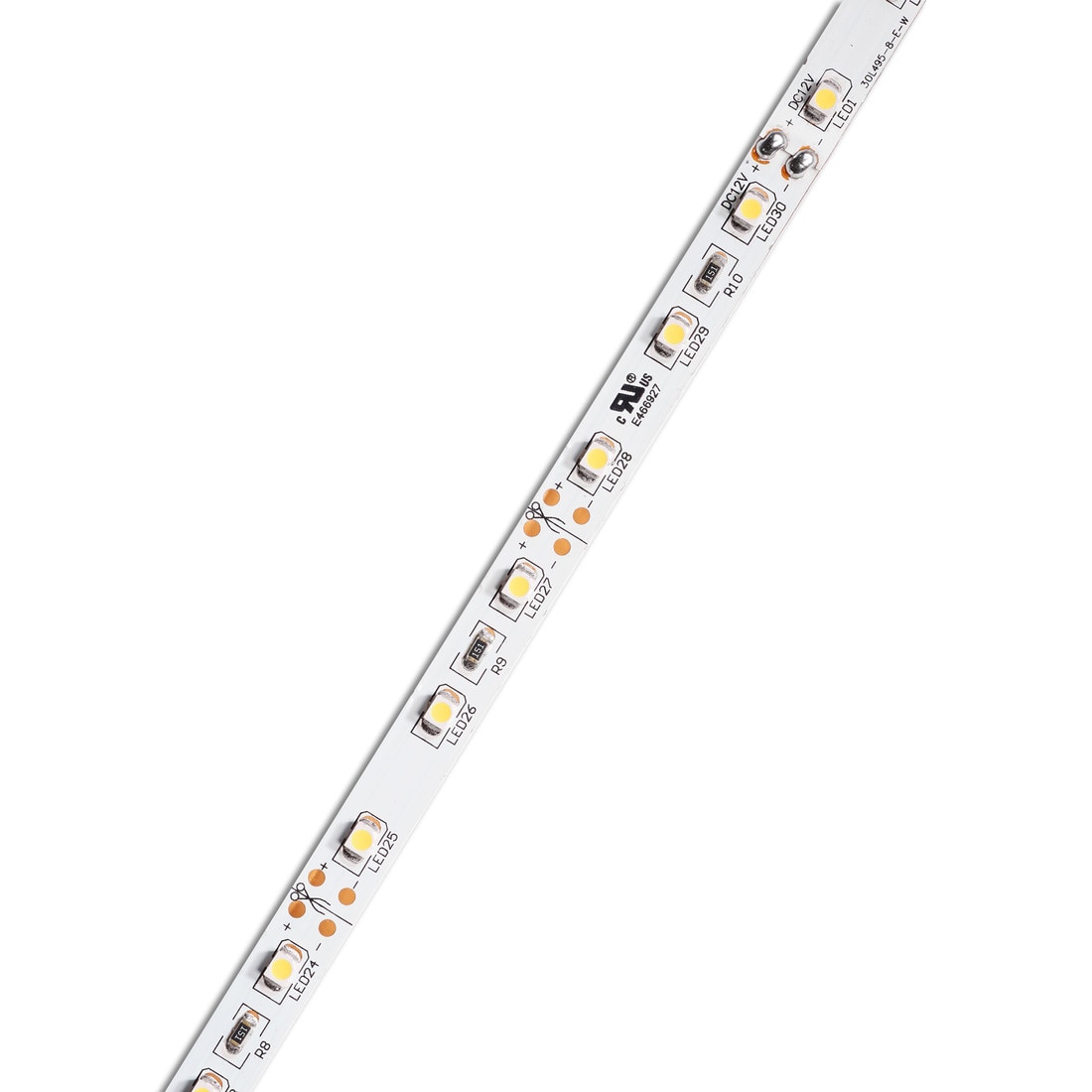

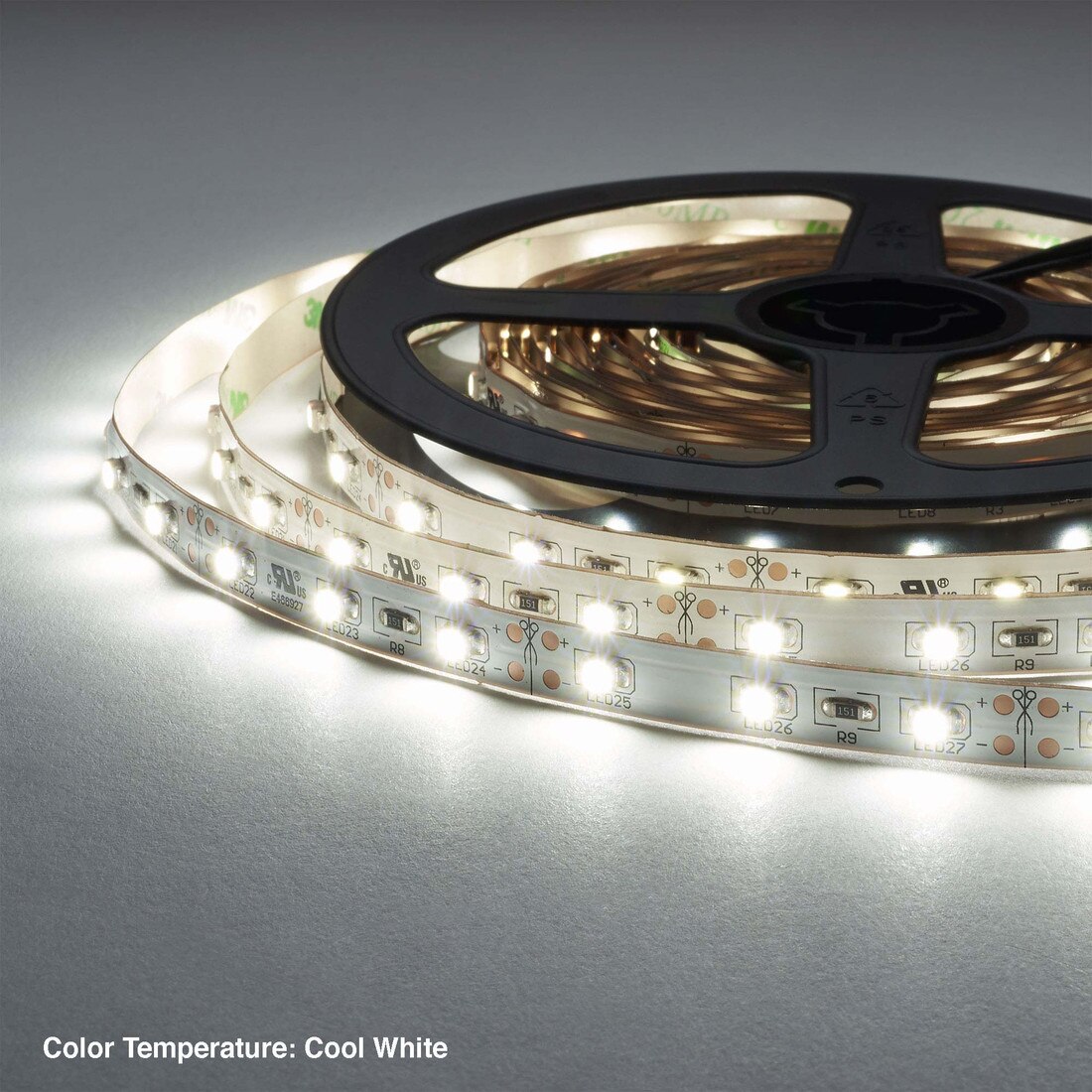

5/16" (8mm) Wide LED Tape Flexible Strip Lighting | 3528 Chip Cool White 6500K 1.5 Watts | 123 Lumens Per Foot 12V IP20 UL | 16.4' Roll

Hover over image to zoom in

SKU: ECO12-I3560-16-CW
  • Our most economical 12V flexible ribbon. Available in 3528 chip and 5500K color temperature. Long lasting, plug and play with many options available.
  • This light has a robust output of 110-136 Lumens per foot, but only utilizes an efficient 1.5 Per Foor. Trimmable can be cut every 1-7/8".

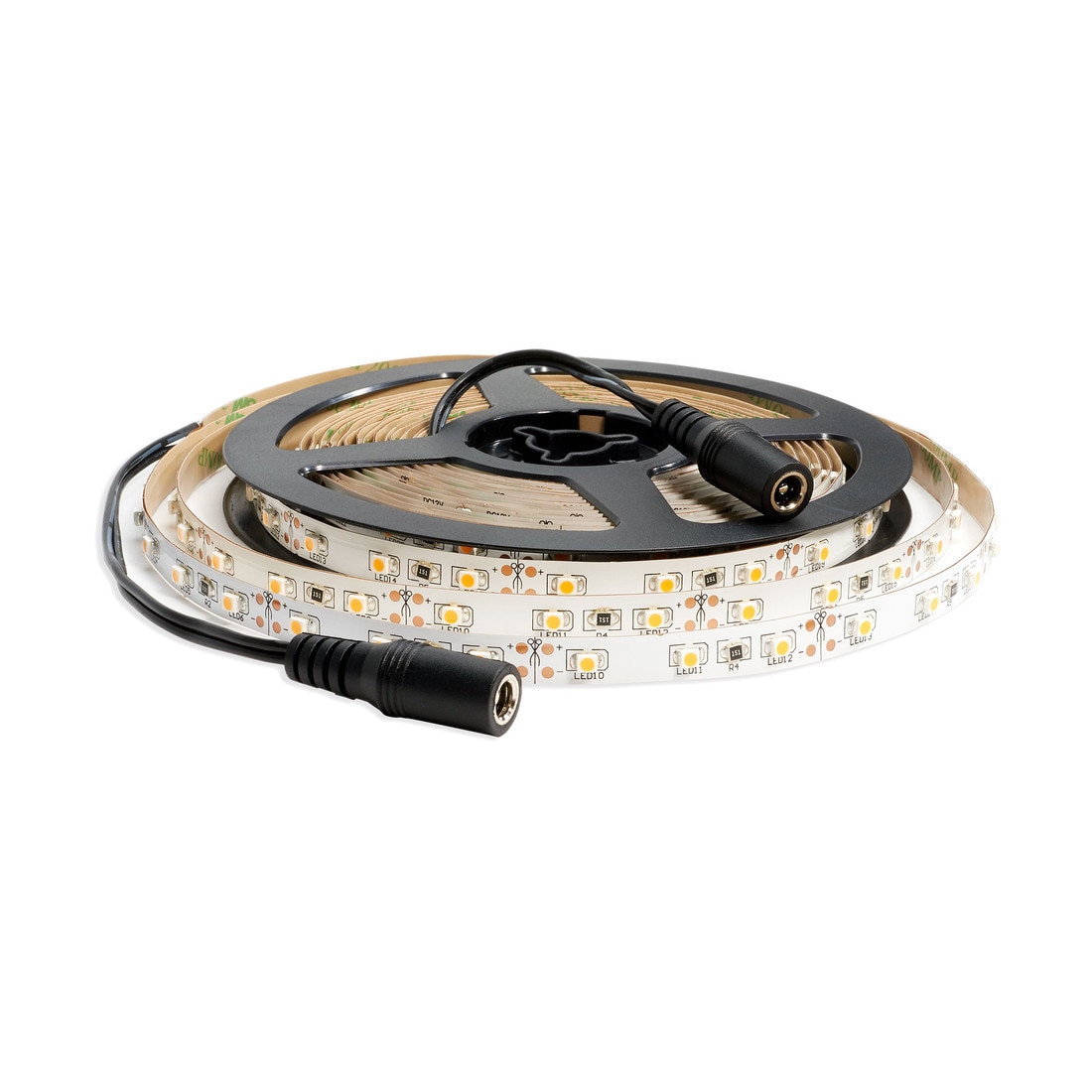

  • The ribbon is sold in 16.4 Feet lengths and has a maximum run of 16.4 Feet. It requires a 12V power supply (see chart) and includes 2 DC5.5 female ends for easy connection.
Read More
Back
$11.81
Step 1 - Select Type
Step 2 - Select Light Color
Step 3 - Select Strip Width
Step 4 - Select Light Length
Step 5 - Select Lumens Per Foot
$11.81
 per roll

Our return policy

Quantity Pricing

This item is IN STOCK

Back
Beam Spread120 degrees
BrandOutwater
Color Rendering Index75
Color Temperature5500K
Constant Voltage or CurrentConstant Voltage
DimmableYes
Height1/8"
Lumens Per Foot110-136 Per Foot
MaterialFlexible White PCB
Maximum Number Can Connect16.4 Feet
Mounting HardwareMounting Opttions: Mounting Clips and Rigid Track
NotesWaste Free Connectors Available
Number of LED Chips300 Chips Per 16.4 Feet
Required Accessories12V Power Supply Required
Roll Length16.4 Feet
Spacing Between Chips11/16"
Total Wattage24 Watts

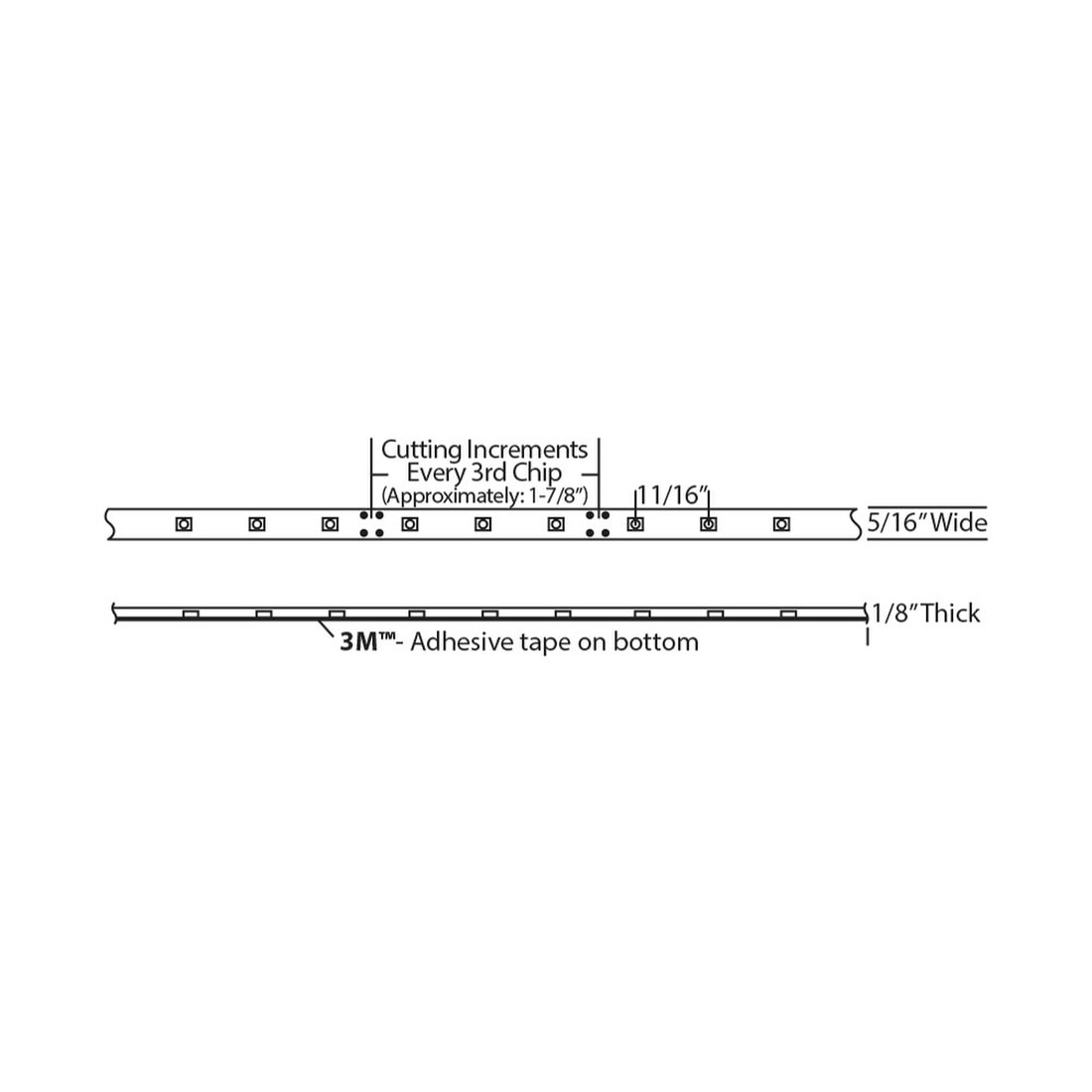

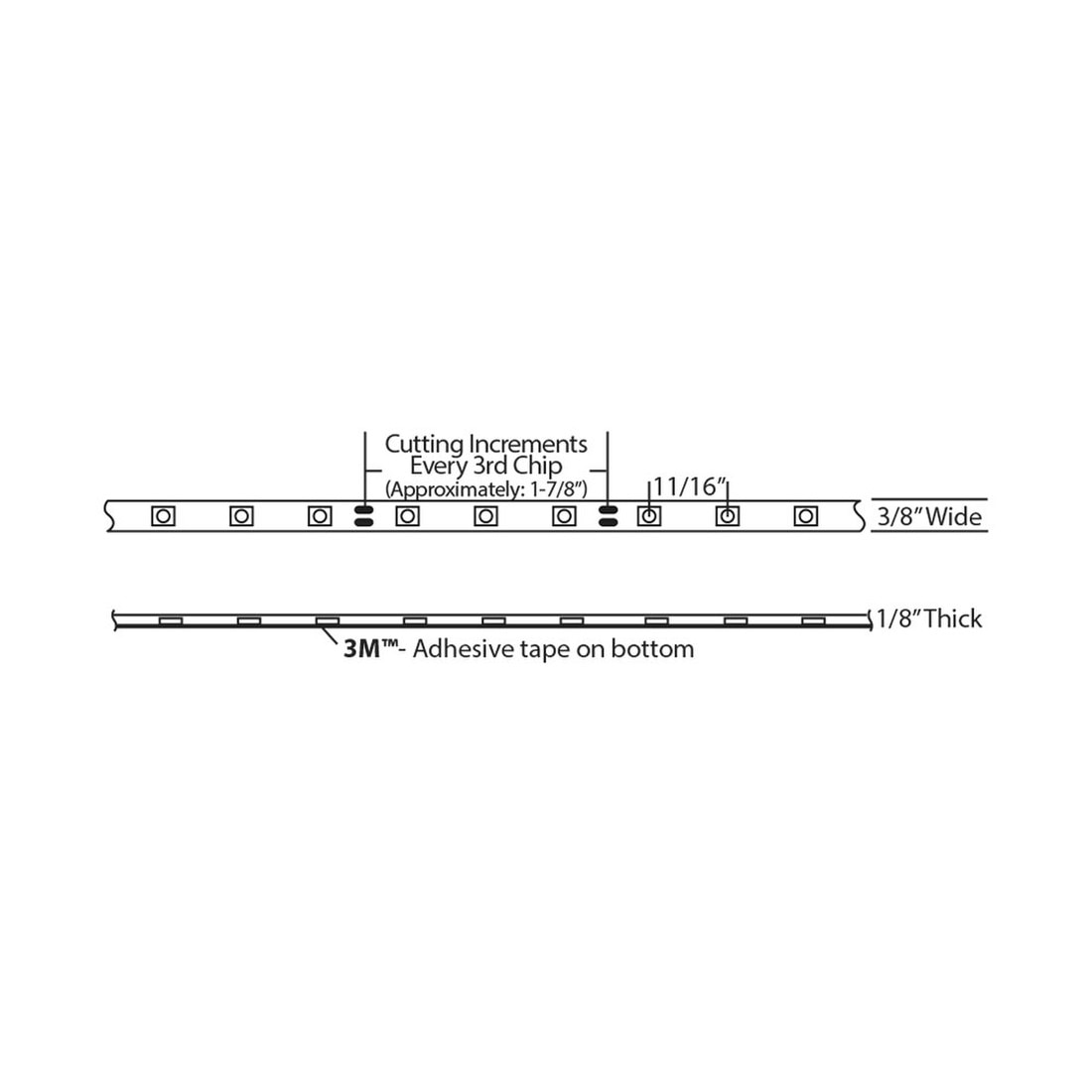

Trimming GuidelinesCan Be Cut Every 1-7/8"
TypeChip Size: 3528
Type of Adhesive3M

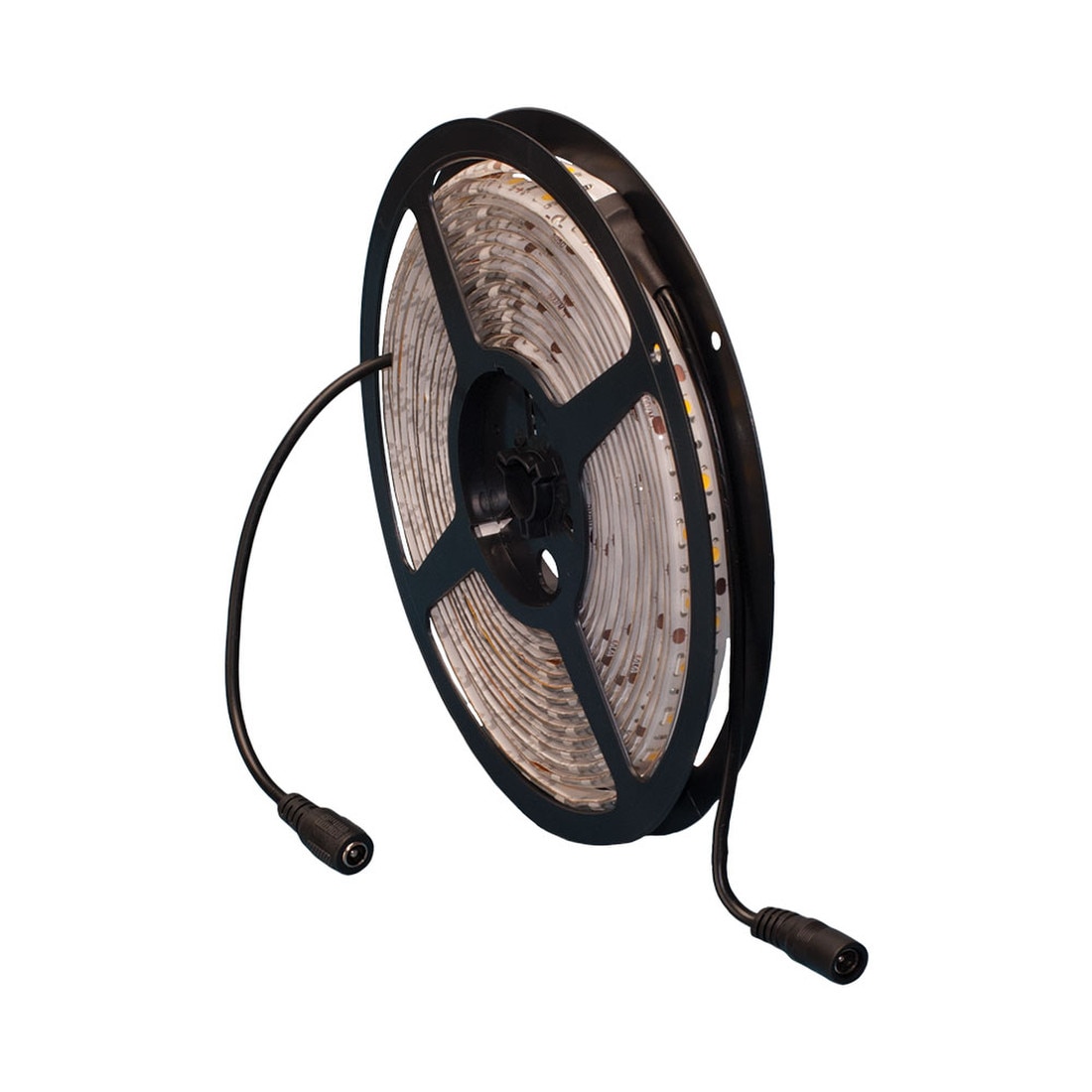

Type of Connection7" DC5.5 Female Connector On Each End
Voltage12V
Watts per Foot1.5 Per Foor
Width5/16 Inch
Wire Gauge22AWG Connecting Cable
