Sugatsune | Folding Bracket | 304 Stainless Steel | EB-317/EP Series

SKU: EB-317/EP
Back
$78.20

$78.20


Our return policy

Quantity Pricing

1 - 910 - 2930 +
$78.20$65.60$57.40
This Item is not available to buy online. A representative will contact you, by completing our "Request a Quote" option below.

Back
BrandSugatsune
CertificationNSF Compliant | RoHS 3 | REACH 223
Dynamic Load RatingLoad Capacity P1: 220.46 lbs (100 kg)
FinishElectropolished

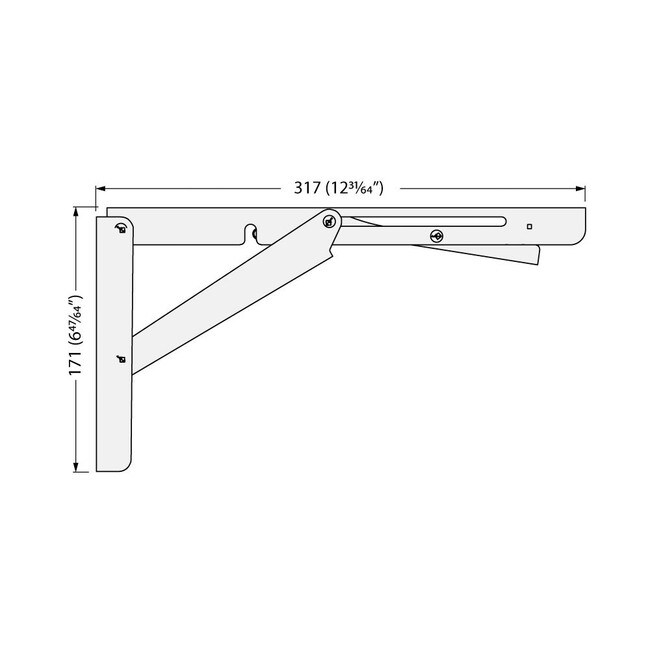

Height6.73 in (171 mm)
Hole InfoHoles: 6
LengthLength of Item when open: 12.54 in (318.5 mm) | Length of Item when closed: 1.42 in (36 mm)
Material304 Stainless Steel
Mounting HardwareM5X16(3pcs) , M5X35(3pcs) Stainless steel ,TRUSS TAPPING SCREWS
NotesPlastic plate on the back can be removed for installation onto rounded surfaces | Support surface/studs should be sufficiently strong enough to support load applied to brackets | Installation onto drywall not recommended
Width1.42 in (36 mm)
