Auragami Flexible LED Back Light Sheet 9.25" x 19.8" | 12 Watts Per Sheet 24V UL

SKU: BLS-AU-NW
Back
$166.98

$166.98


Our return policy

Quantity Pricing

This Item is not available to buy online. A representative will contact you, by completing our "Request a Quote" option below.

Back
Download Installation Instructions
Back
https://www.youtube.com/watch?v=3jWO_6EfWYk,https://www.youtube.com/watch?v=Ix0jXKvXZPg
Back
Beam Spread120 Degrees
CertificationUL
Color Rendering Index85+
Color Temperature5300K
Constant Voltage or CurrentConstant Voltage

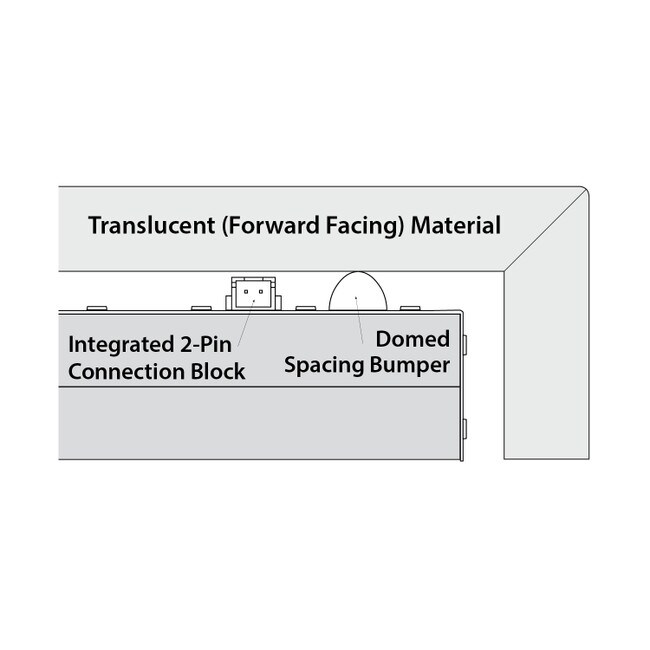

DepthMinimum Depth: 3/8"
DimmableYes

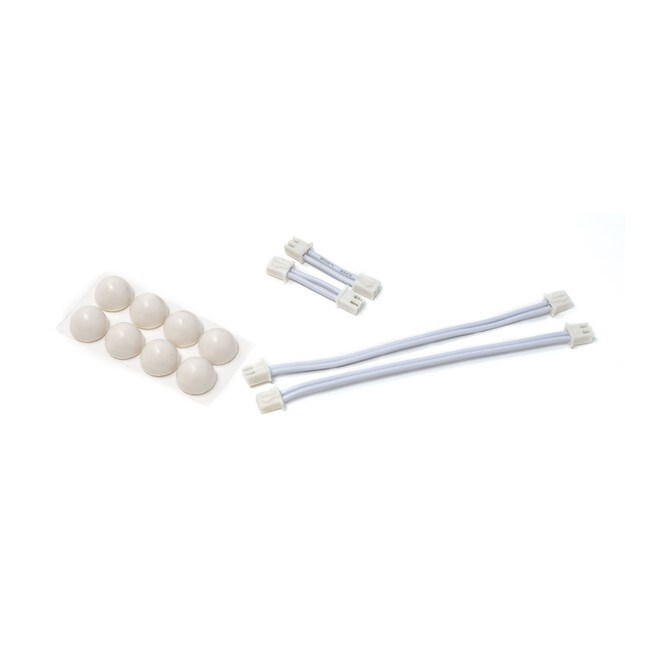

IncludesConnectors, Bumpers
Lumens Per Fixture1600 Lumens
MaterialPolymide with a Conformable Coating Layer (Silicon Based)
Maximum Amps4 Amps
Maximum Number Can Connect7 pcs
Mounting HardwareMounting Options: Screw Mount, Adhesive
Required Accessories24V Power Supply and power linking cable

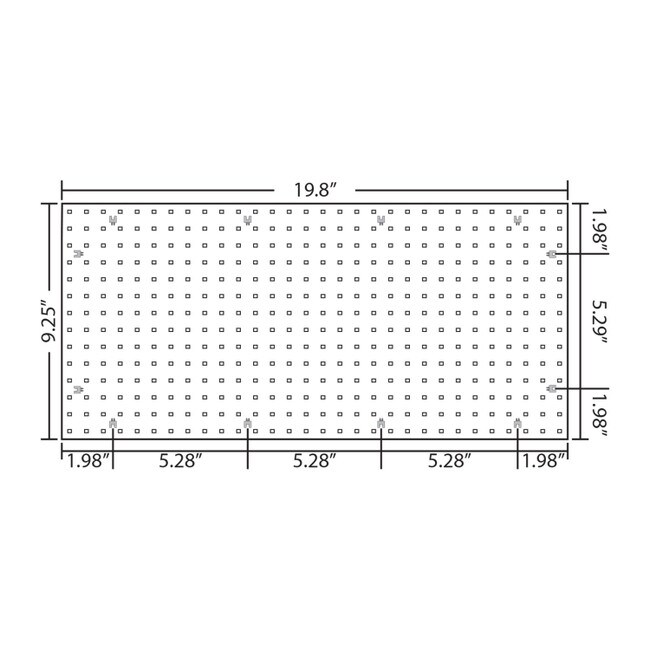

Sheet Size9.25" x 19.8"
Total Wattage12 Watts

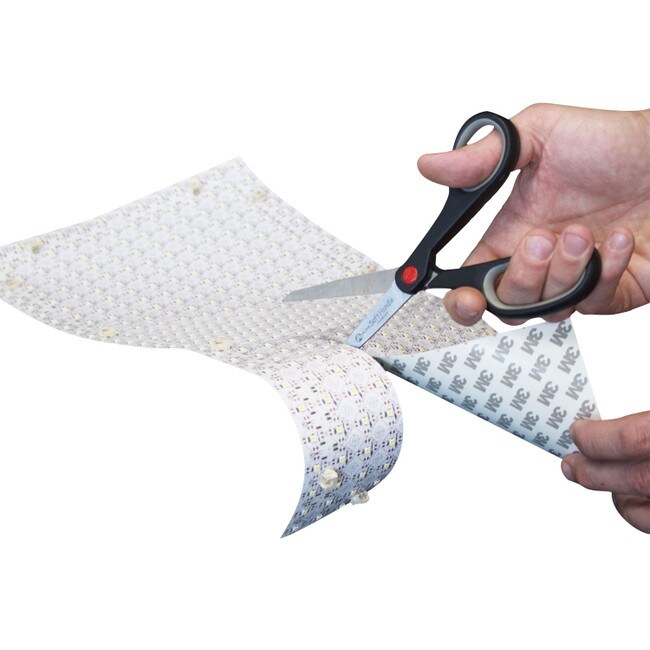

Trimming Guidelines5/8" x 5/8"
TypeChip Size: 2835
Type of Adhesive3M Adhesive
Voltage24V
Warranty5 years
