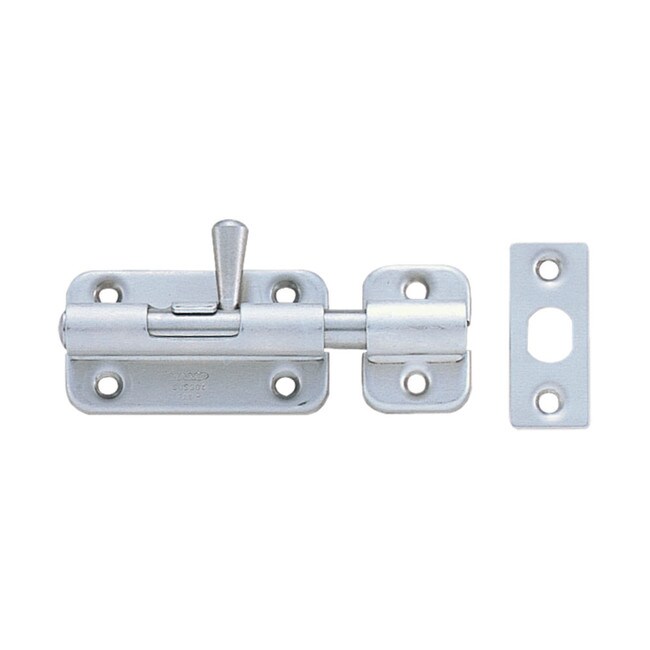

Sugatsune 1-19/64" High x 2-23/64" Long Satin Stainless Steel Spring Loaded Barrel Bolt

Hover over image to zoom in

SKU: BLS-60

Brand: Sugatsune

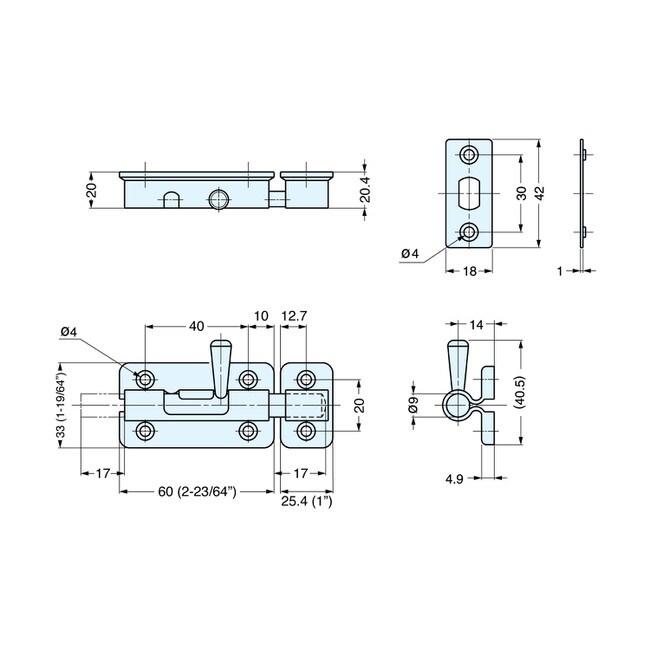

Height: 1.59 in (40.5 mm)
Width: 3.36 in (85.4 mm)
Diameter: Bar/Bolt Diameter: 0.35 in (9 mm)
Depth: 0.8 in (20.4 mm) Suitable for Spring Loaded Bar Latch.
Finish: Satin
Material: 304 Stainless Steel
Certification: NSF Compliant | RoHS 2 | REACH 219 1/24/22
Includes: Supplied with mortise and surface strike
Mounting Hardware: 3.5 x 20 Stainless Screw
Notes: Knob springs back into sleeve to keep bolt in locked or unlocked position

$31.33

per piece

Our return policy

1 - 19	20 - 79 Savings: 9%	80 + Savings: 16%
$31.33	$28.50	$26.16

Available To Order

Item ships within 1 - 2 Business Days.

Brand	Sugatsune
Certification	NSF Compliant \| RoHS 2 \| REACH 219 1/24/22
Depth	0.8 in (20.4 mm)
Diameter	Bar/Bolt Diameter: 0.35 in (9 mm)
Finish	Satin
Height	1.59 in (40.5 mm)
Includes	Supplied with mortise and surface strike
Material	304 Stainless Steel
Mounting Hardware	3.5 x 20 Stainless Screw
Notes	Knob springs back into sleeve to keep bolt in locked or unlocked position
Product Weight	.2 lbs per piece
Width	3.36 in (85.4 mm)
