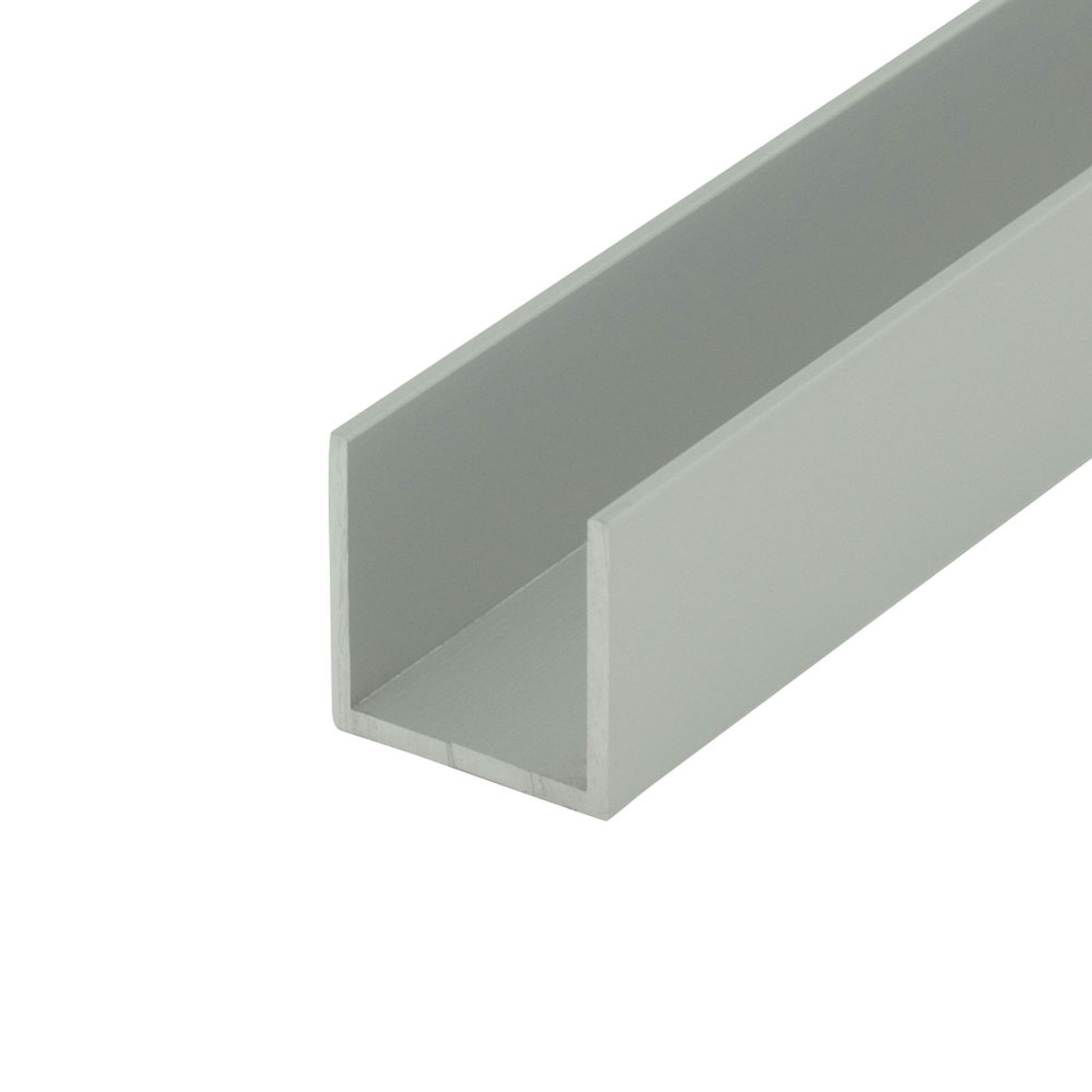

5/8in | Aluminum U Channel Moulding | ALU570 Series

Hover over image to zoom in

SKU: ALU570-PARENT

Fits 5/8" thick panels.
Can be used as decorative edging or framing for posters, custom signage, displays and more.
Will reduce sagging or bowing in shelves when properly installed.

Fits 5/8" thick panels.
Can be used as decorative edging or framing for posters, custom signage, displays and more.
Will reduce sagging or bowing in shelves when properly installed.
Made of 6063 T5 aluminum that offers impact protection and will not rust in outdoor environments.
Save time on installation with no sanding or filing on any raw or unfinished edges.
Need a custom cut? Please refer to the cutting prgram tab below.

Click Here To View Similar Products In Our Catalog

Back

$1.95 to $27.18

Step 1 - Select Finish

Finish:

Clear Anodized (Satin)-swatch_metal_satin_aluminum

Step 2 - Select Cut For Shipping

Cut For Shipping :

1 - 12ft piece Cut to 3ft Lengths Prototype Pack: 3 Pieces - 46" long 1 - 12ft piece Cut to 4ft Lengths 1 - 12ft piece Cut to 6ft Lengths 1 - 12ft piece Cut to 8ft and 4ft Lengths No Cut - 12' Length Must Ship Common Carrier

$1.95 to $27.18

Our return policy

Quantity Pricing

This item is IN STOCK

Back

Brand	Outwater
Color	Additional Finishes And/Colors Can Be Made Available With Minimum Order Quantitiies And Lead Times. If A Custom Color Match Is Needed A Sample Swatch Will Need To Be Sent And Color Match Fees May Apply - Please Inquire
Finish	Mill Finish Raw Aluminum With NoÂ External Mechanical Or Chemical Finishing, It May Or May Not Contain Scratches

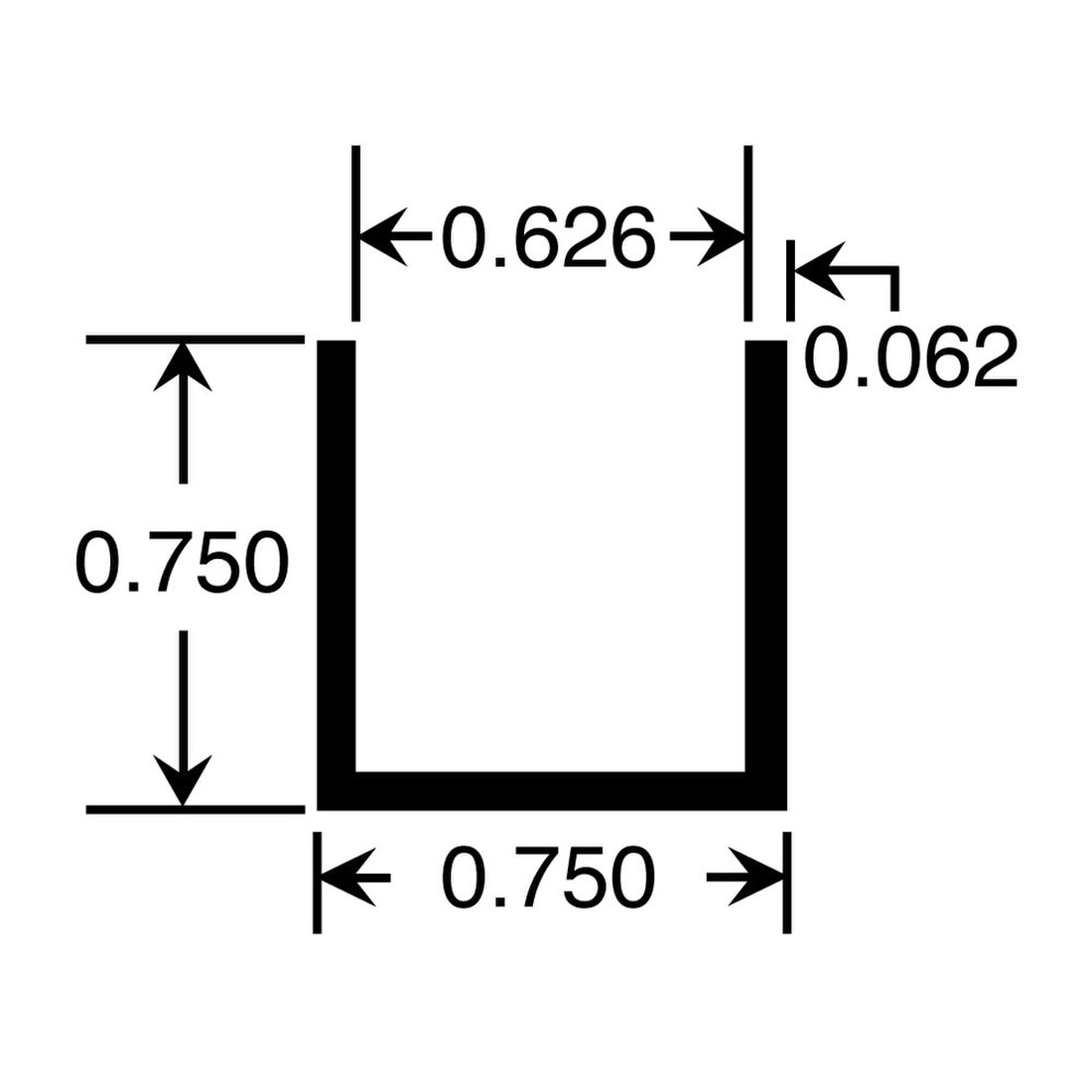

Fits Board Width	5/8"
Height	Leg Height: 0.75"
Length	4 Pieces - 3'
Material	Aluminum, 6063 T5 Alloy
Notes	Custom Cutting Options Are Available. Please See Our Product Cutting Options, Posted Under The Documents Tab
Thickness	0.062"

Back

Download Product Cutting Options
