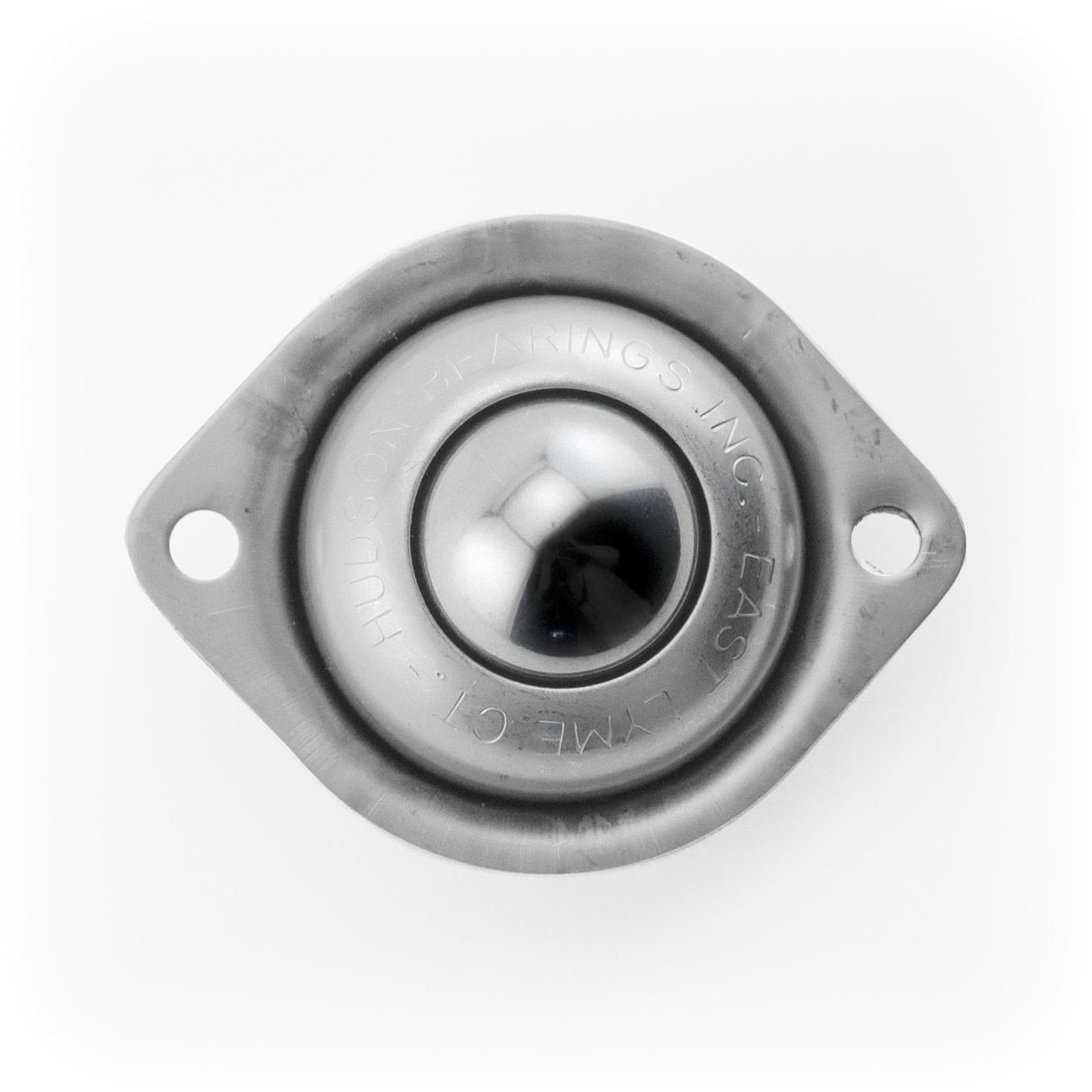

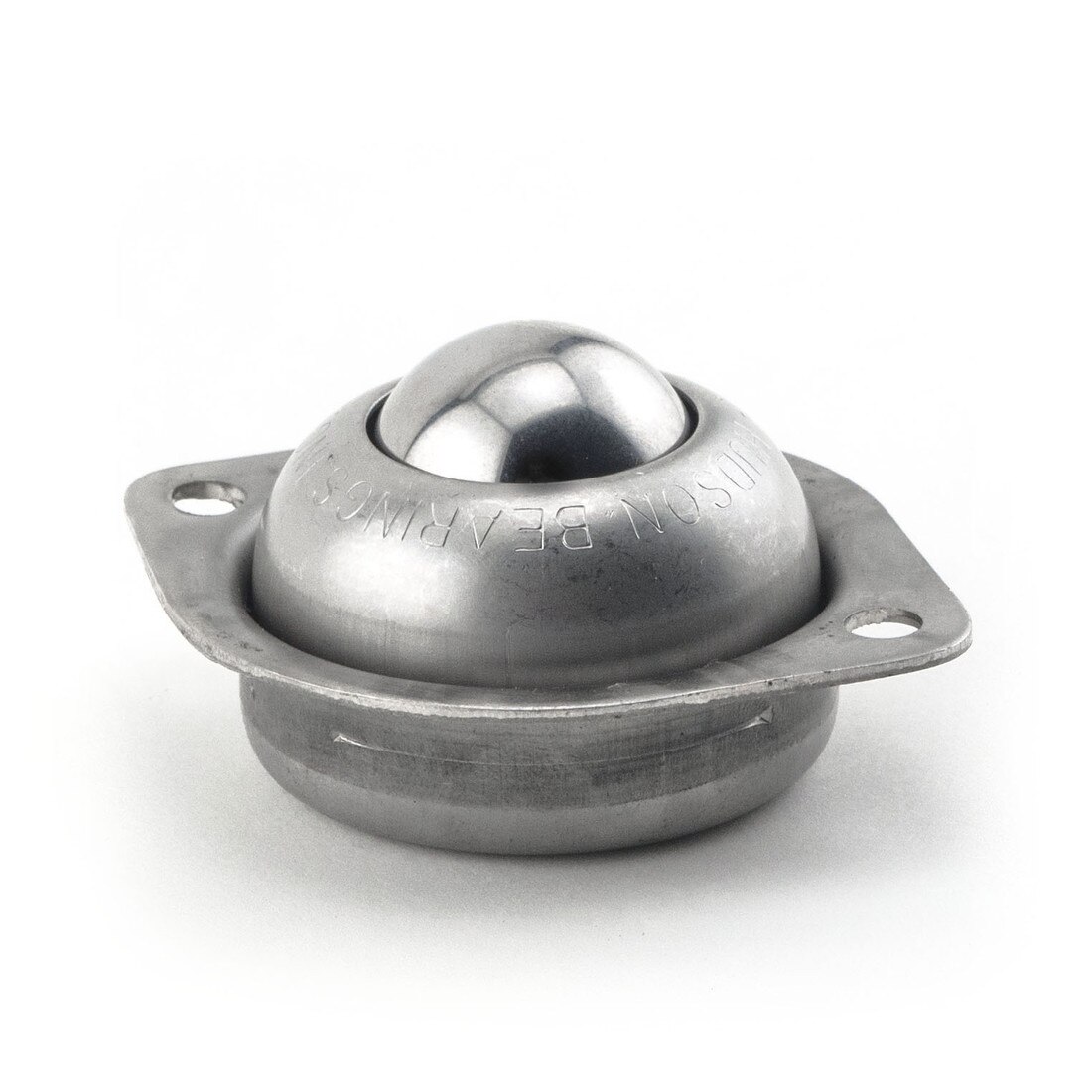

1in Dia | Carbon Steel | Ball Transfer Industrial Caster with Oblong Flange

Hover over image to zoom in

SKU: HBLPOF-32
  • Ball Transfer with Flange casters are extremely low profile and can be concealed beneath furniture or displays.
  • 1" Ball Diameter with Top Plate 1-7/8" x 2-9/16".
  • Omni-Directional Type Caster.
Read More
Back
$7.72
Step 1 - Select Ball Material
Step 2 - Select Ball Size
$7.72
 per piece

Our return policy

Quantity Pricing

1 - 49
50 +
Savings: 10%
$7.72$6.88

Available To Order
This Item is not available to buy online. A representative will contact you, by completing our "Request a Quote" option below.

Back
BrandOutwater
Diameter1" Ball Diameter
Dynamic Load RatingLoad Rating Ball Down: 35 lbs per caster; Load Rating Ball Up: 75 lbs per caster
FinishHousing Finish: Silver
HeightMounting Height: 1-15/16"
Housing MaterialCarbon Steel
MaterialBall Material: Carbon Steel

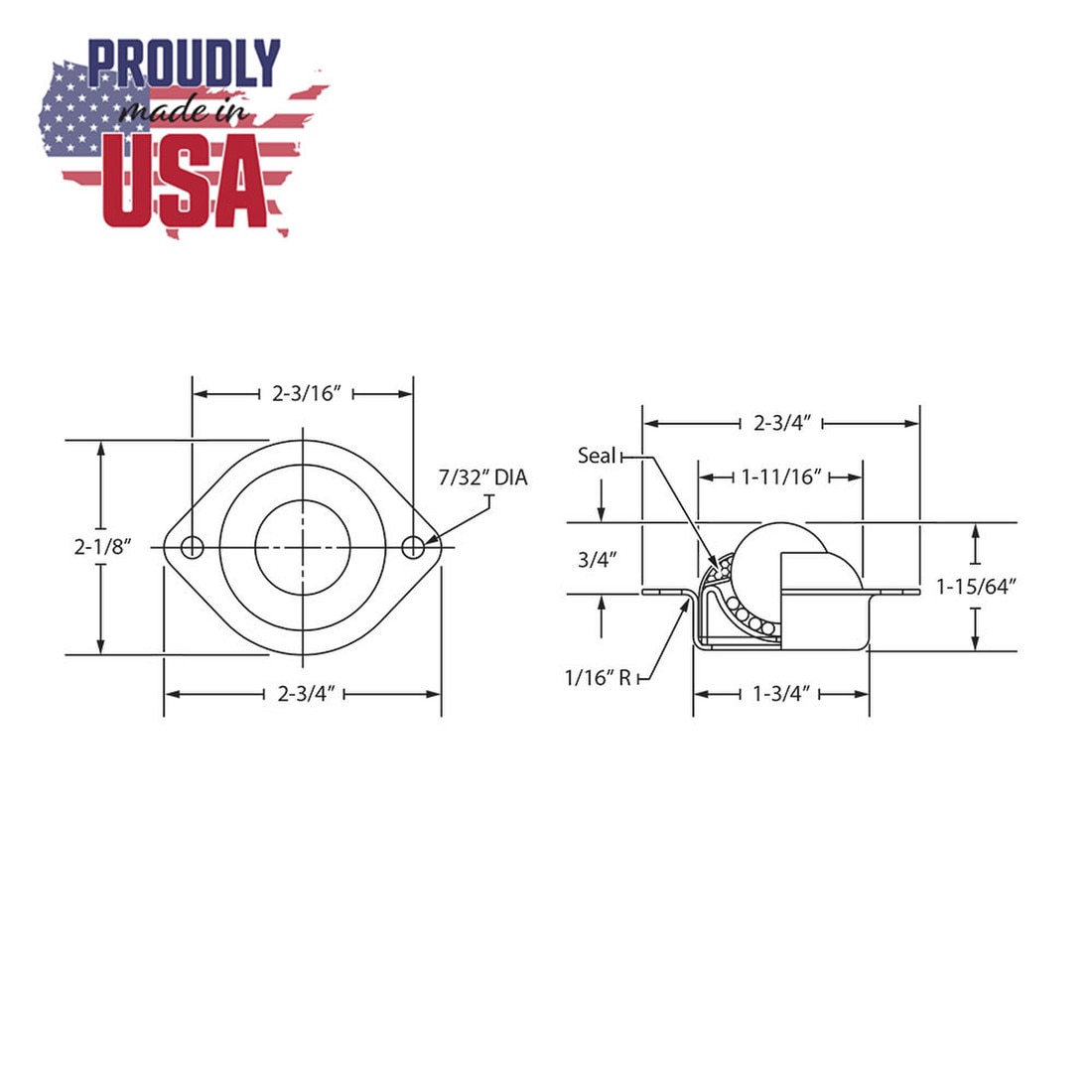

Mounting HardwareMounting Options: 2-3/4" x 2" Oblong Flange; Mounting Plate Hole Spacing: 2-3/16"; Mounting Plate Hole Diameter: 7/32"
Product Weight.36 lbs per piece
TypeCaster Type: Omni Directional
Wheel ColorSilver
Wheel Material InformationMade from Carbon, Manganese, Phosphorous and Sulphur Non-Corrosion Resistance
