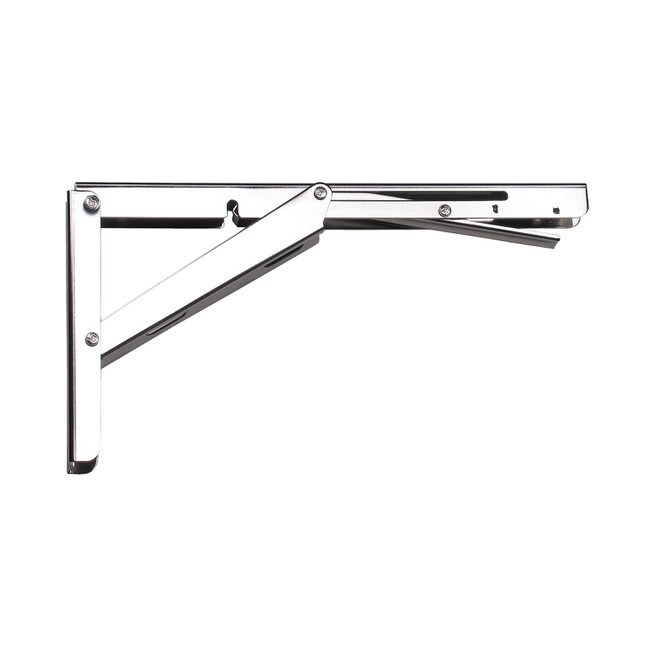

Sugatsune Electro Polished Chrome Finish Stainless Steel Folding Bracket

Hover over image to zoom in

SKU: EB-303/EP

Sugatsune's trusted legacy is embedded in every component of this design.

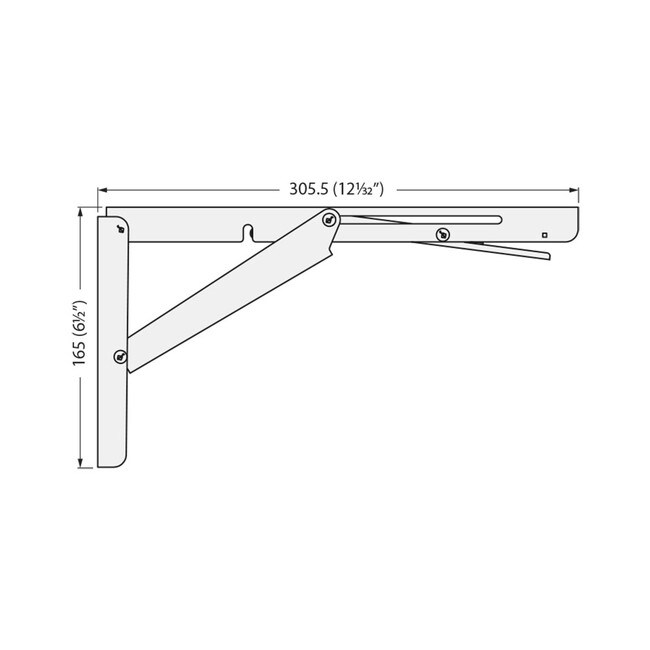

This product features a vertical dimension of 6.5 in (165 mm).
Width is specified at 1.14 in (29 mm), ensuring fit for diverse installations.
Length of Item when open: 12.09 in (307 mm) | Length of Item when closed: 1.12 in (28.5 mm) supports extended utility.
Finished in Electropolished for an attractive and resilient surface.
Constructed from 304 Stainless Steel to ensure lasting durability.
Rated for dynamic load Capacity of P1: 165.35 lbs (75 kg) | Load Capacity P2: 330.69 lbs (150 kg) for robust support.
hole configuration: 6.
Meets NSF Compliant | RoHS 3 | REACH 223 certification for assured quality.
Mounting hardware type: 5X16(3pcs) , 5X35(3pcs) Stainless Steel ,TRUSS TAPPING SCREWS.
Built for projects demanding reliable, heavy-duty support in demanding environments.

$60.69

per piece

Our return policy

1 - 9	10 - 39 Savings: 10%	40 + Savings: 17%
$60.69	$54.45	$49.97

This item is IN STOCK

Item ships within 1 - 2 Business Days.

Brand	Sugatsune
Certification	NSF Compliant \| RoHS 3 \| REACH 223
Dynamic Load Rating	Load Capacity P1: 165.35 lbs (75 kg) \| Load Capacity P2: 330.69 lbs (150 kg)
Finish	Electropolished
Height	6.5 in (165 mm)
Hole Info	Holes: 6
Length	Length of Item when open: 12.09 in (307 mm) \| Length of Item when closed: 1.12 in (28.5 mm)
Material	304 Stainless Steel
Mounting Hardware	5X16(3pcs) , 5X35(3pcs) Stainless Steel ,TRUSS TAPPING SCREWS
Notes	Plastic plate on the back can be removed for installation onto rounded surfaces \| Support surface/studs should be sufficiently strong enough to support load applied to brackets \| Installation onto drywall not recommended \| Locks when fully opened, press lever to release
Product Weight	1.1 lbs per piece
Width	1.14 in (29 mm)
