SKU: HB-DROP-CAP-PARENT

  • Our Ball Transfer with Drop In casters are specifically designed for applications where there is no space to mount a top plate.
  • Omni-Directional Type Caster.

Back
$29.74 to $52.46
Step 1 - Select Ball Material
Step 2 - Select Ball Size
Step 3 - Select Cap Type
$29.74 to $52.46


Our return policy

Quantity Pricing

1 - 49
50 +
$29.74 - $52.46$25.95 - $44.91

Available To Order

Back
BrandOutwater

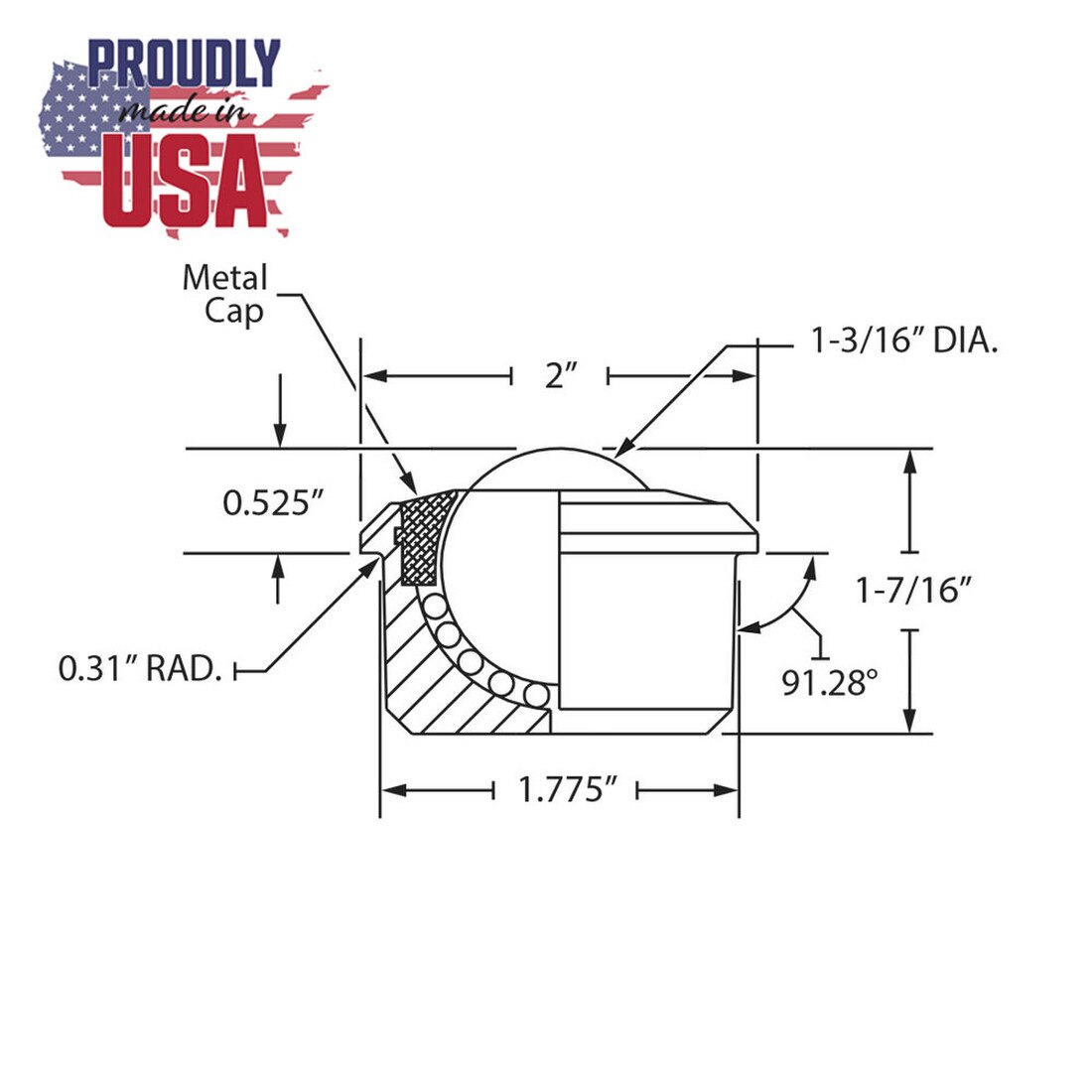

Diameter1-3/16" Ball Diameter
Dynamic Load RatingLoad Rating Ball Down: 375 lbs per caster; Load Rating Ball Up: 750 lbs per caster
FinishHousing Finish: Silver
HeightMounting Height: 1-7/16"
Housing MaterialCarbon Steel
MaterialBall Material: Carbon Steel
Mounting HardwareMounting Options: 1.775" diameter drop in
Product Weight.82 lbs per piece
TypeCaster Type: Omni-Directional
Wheel ColorSilver
Wheel Material InformationMade from Carbon, Manganese, Phosphorous and Sulphur Not Corrosion Restistant
