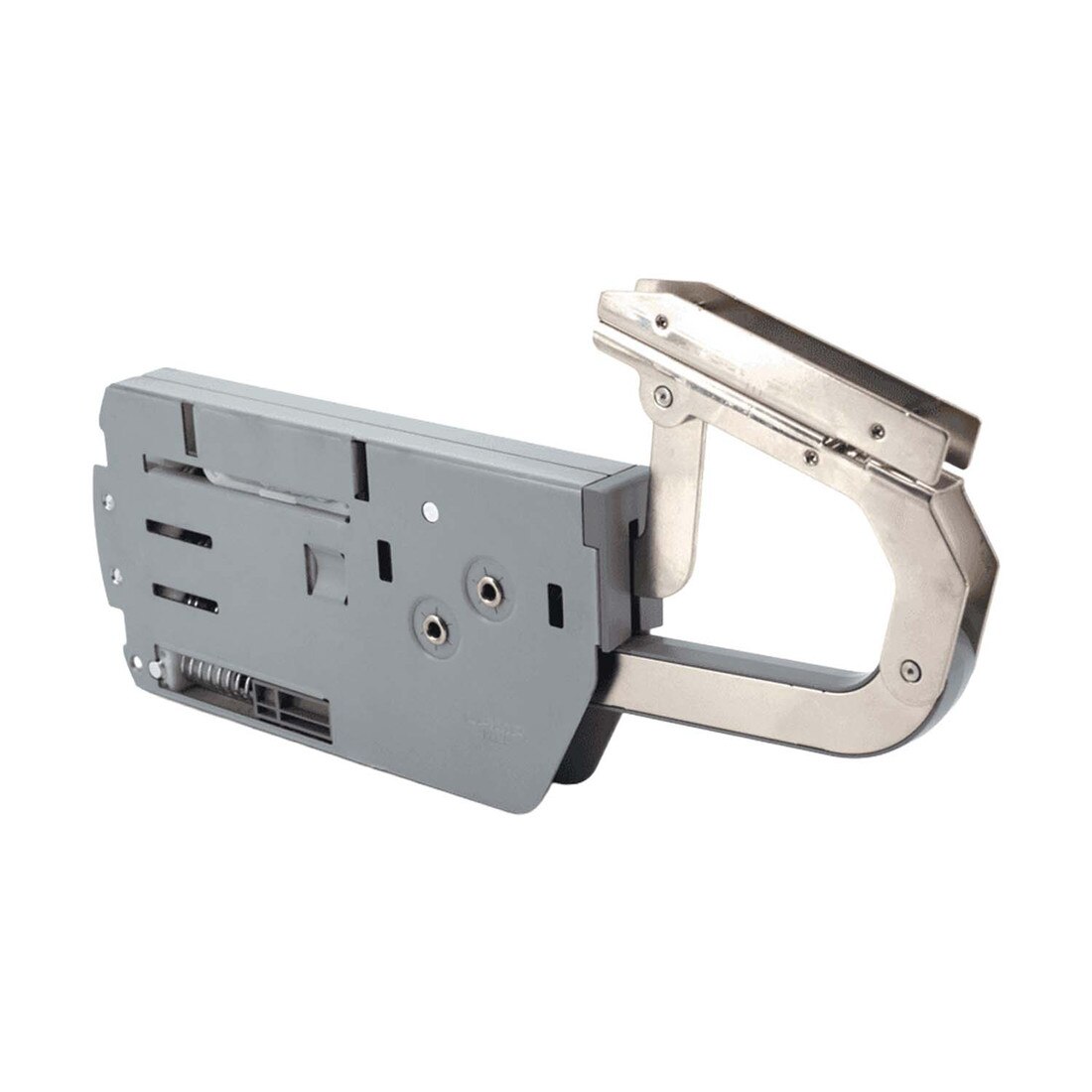

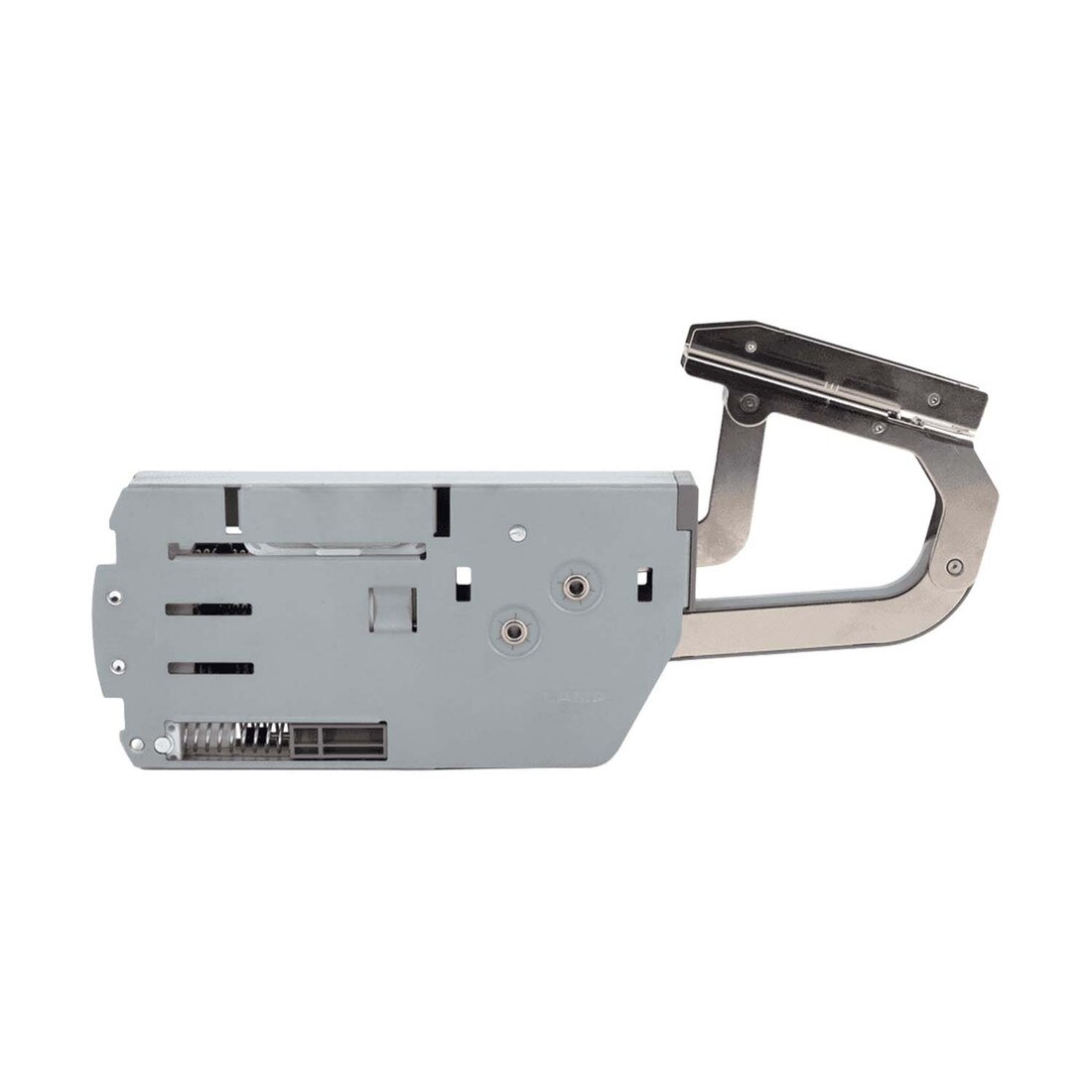

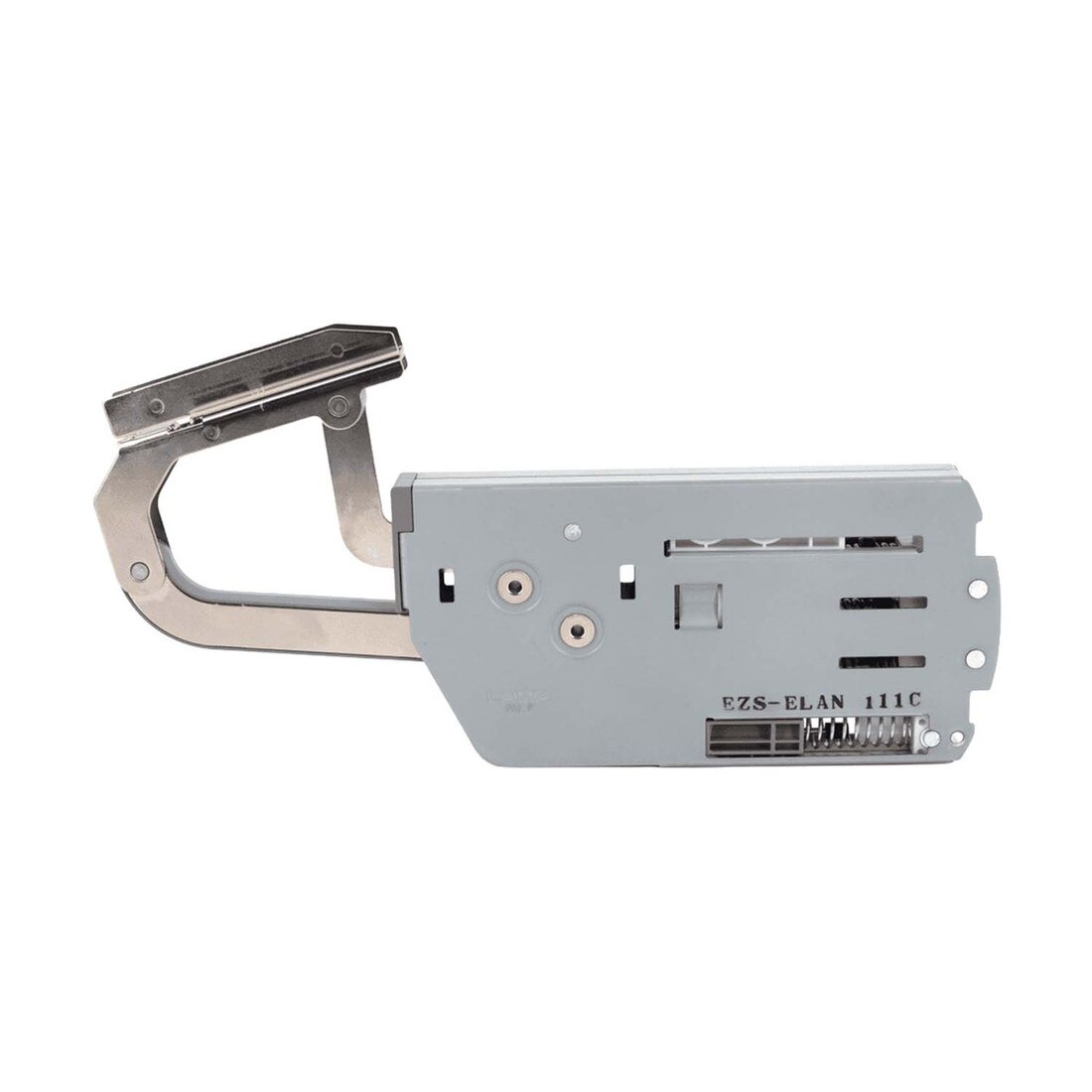

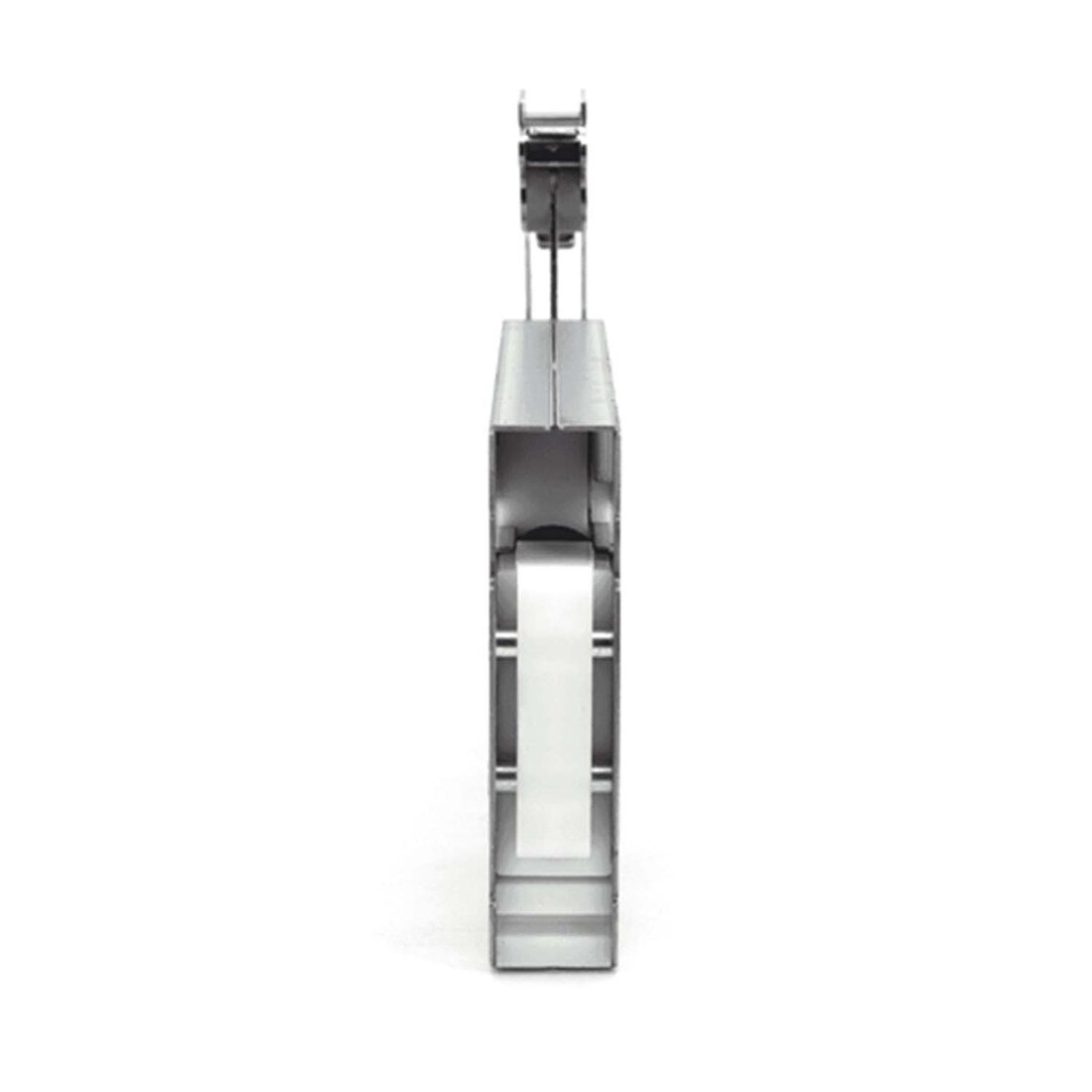

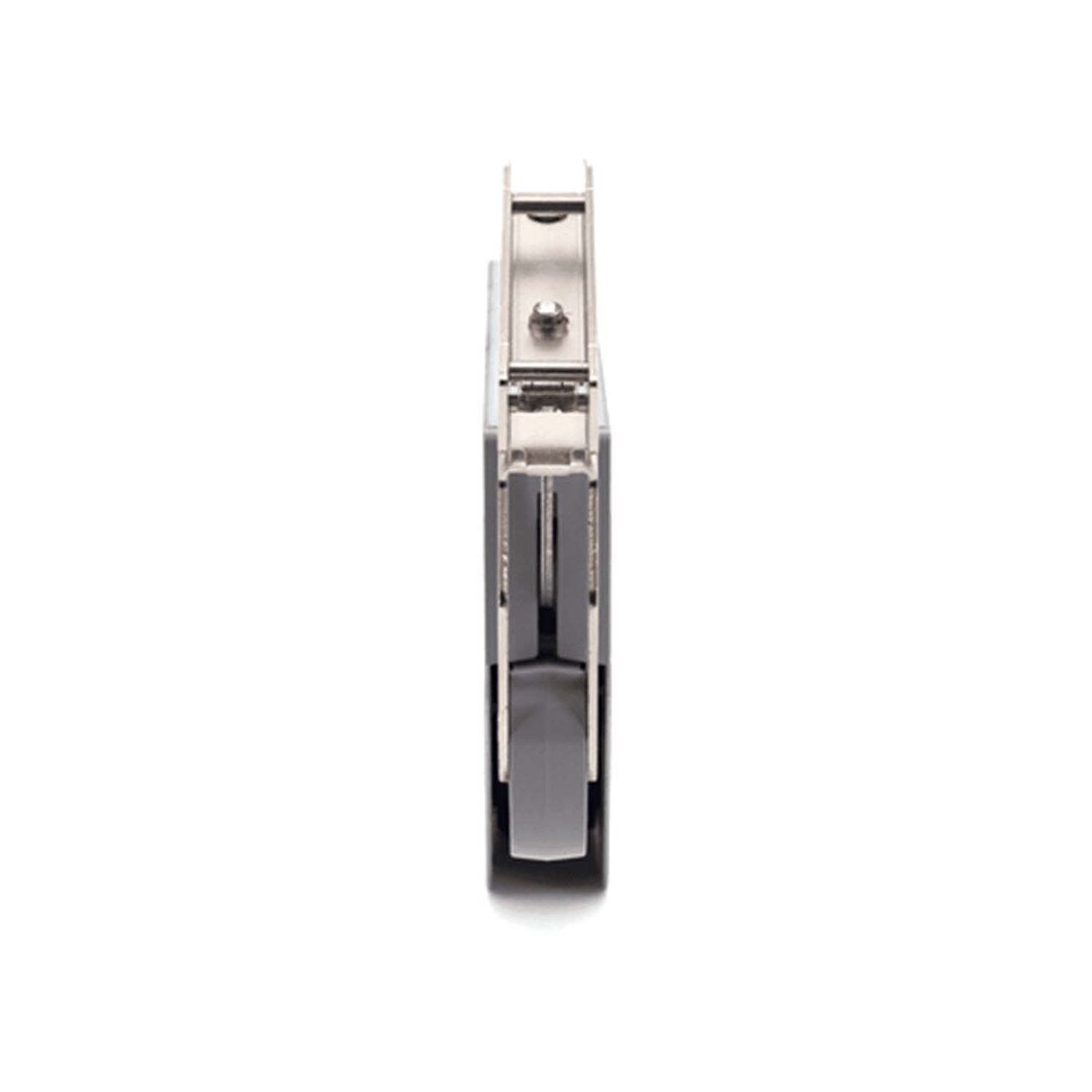

Sugatsune Lift Assist Mechanism
Hover over image to zoom in
| Brand | Sugatsune |
|---|---|
| Certification | RoHS 3 |
| Finish | Light Gray |
| Height | 8.46 in (215 mm) | Door Max Height: 29.53 in (750 mm) | Door Min Height: 19.69 in (500 mm) |
| Length | Length of Item when closed: 8.46 in (215 mm) |
| Material | Steel |

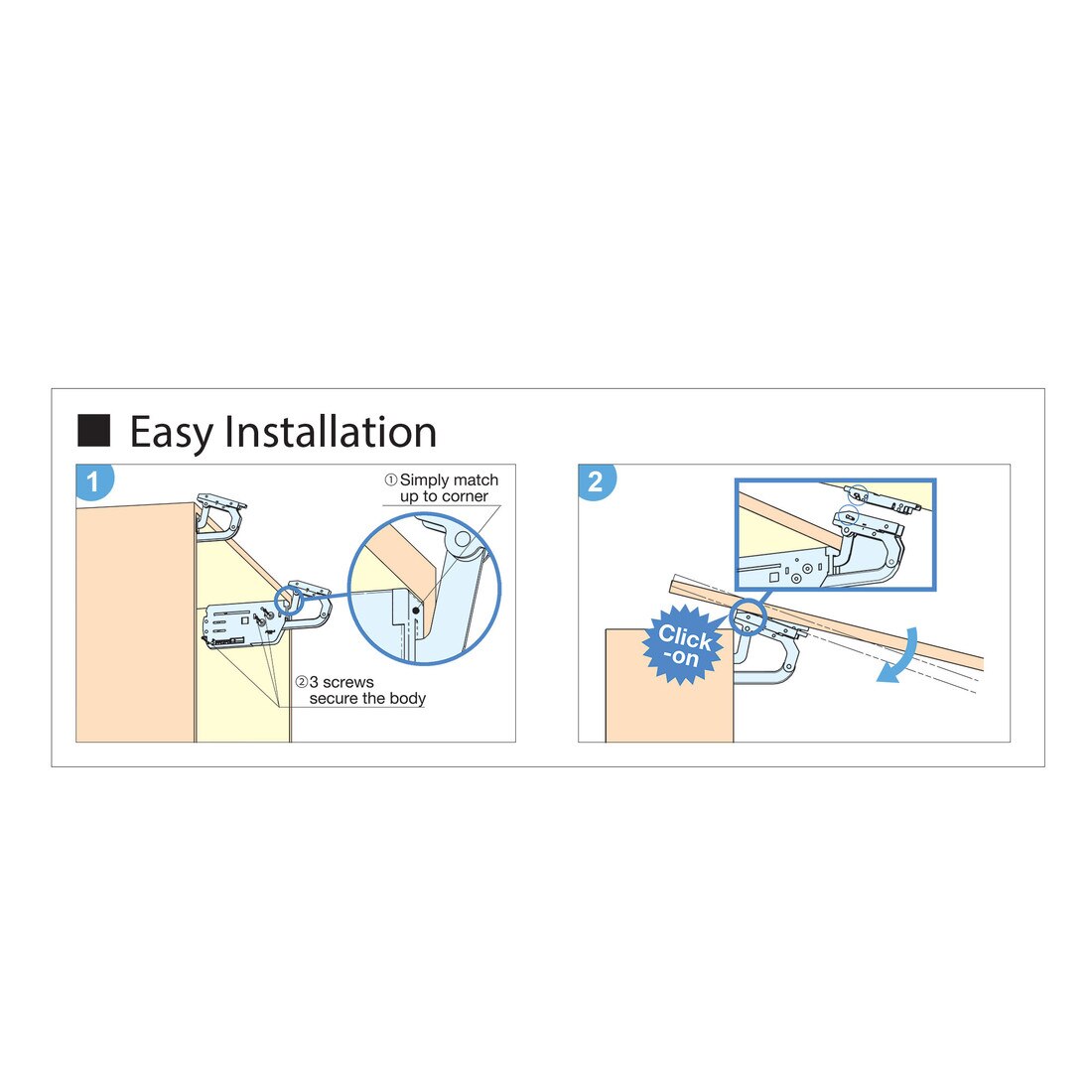

| Mounting Hardware | 3.5 x 38, 3.5 x 15 mm Self tapping screw |
| Product Weight | 5.5 lbs per pair | Door Min Weight: 11.02 lbs (5 kg) | Door Max Weight: 27.56 lbs (12.5 kg) |

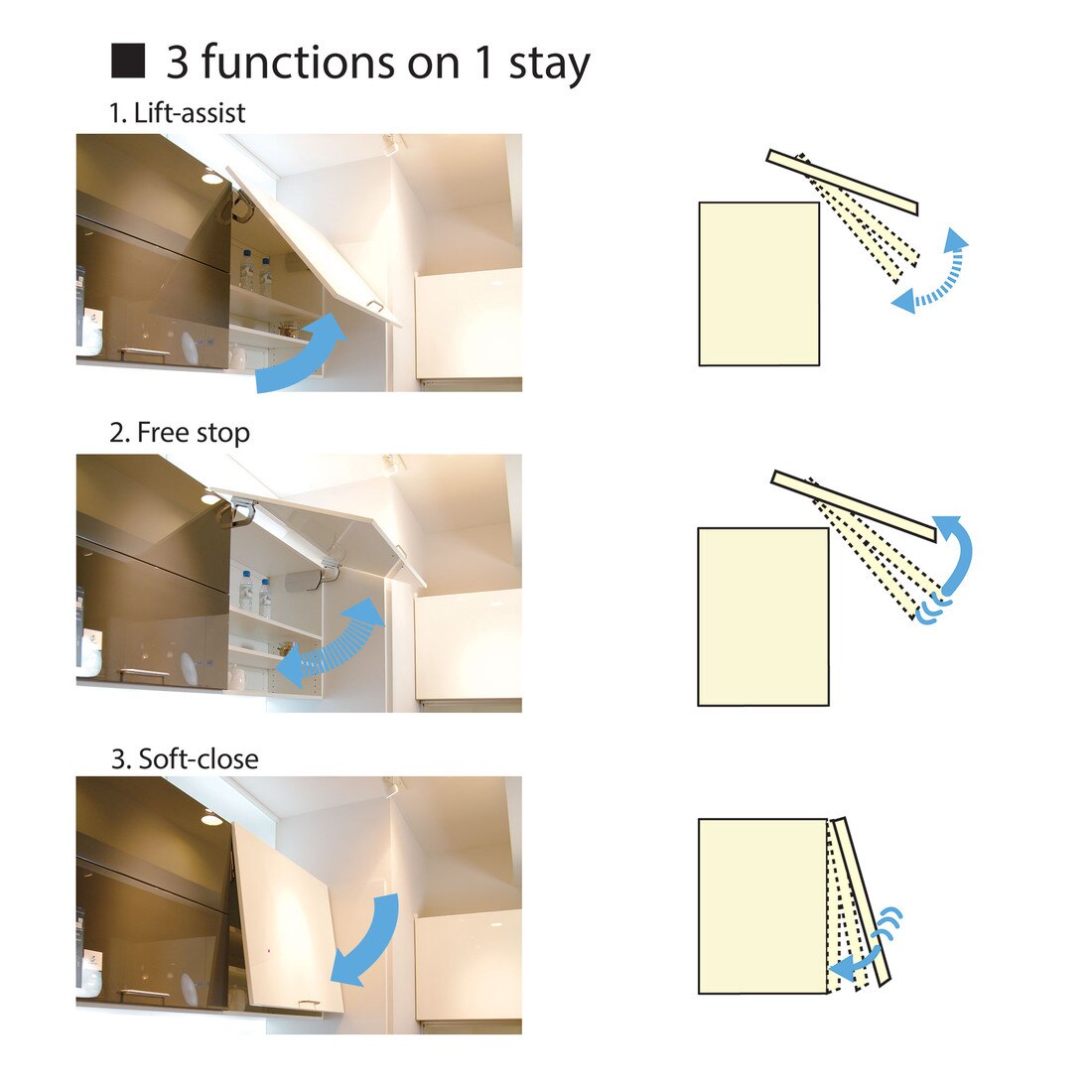

| Type | Open/Lift Assist | Soft Close |
| Width | 1.26 in (32 mm) | Door Max Width: 47.24 in (1200 mm) |
