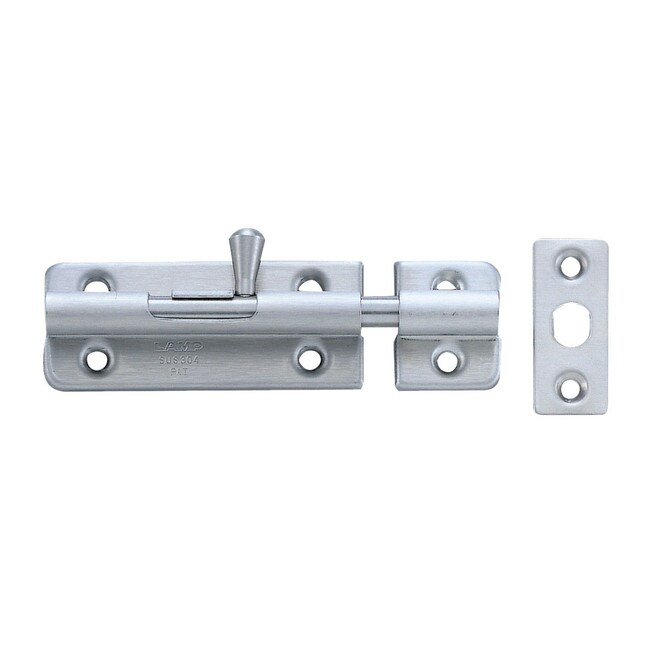

Sugatsune 1-3/64" High x 2-23/64" Long Satin Stainless Steel Spring Loaded Barrel Bolt

Hover over image to zoom in

SKU: BL-60SS

Brand: Sugatsune

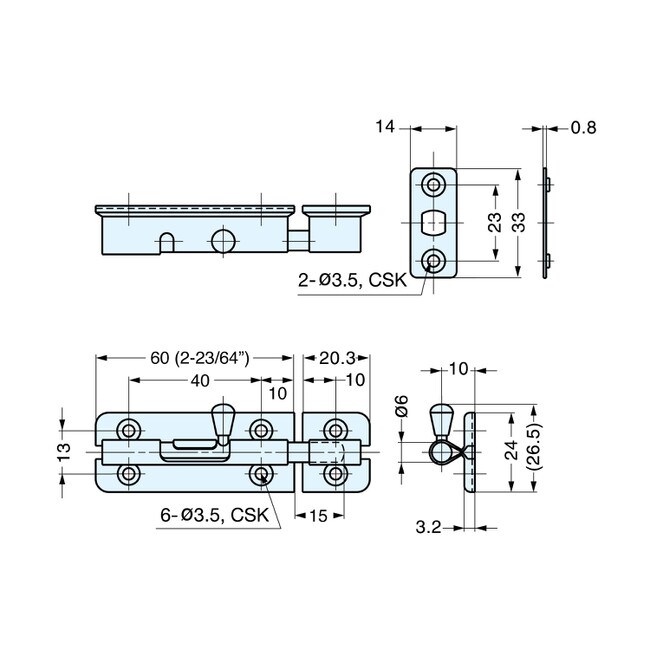

Height: 1.04 in (26.5 mm) Suitable for Straight Barrel Bolt.
Width: 3.16 in (80.3 mm)
Diameter: Bar/Bolt Diameter: 0.24 in (6 mm)
Depth: 0.55 in (14 mm)
Finish: Satin
Material: 304 Stainless Steel
Certification: NSF Compliant | RoHS 2 | REACH 240 5/21/24
Includes: Supplied with mortise and surface strike
Mounting Hardware: 2.7 X 16 Stainless Steel Screw
Notes: Knob springs back into sleeve to keep bolt in locked or unlocked position

$21.41

per piece

Our return policy

1 - 29	30 - 119 Savings: 9%	120 + Savings: 17%
$21.41	$19.35	$17.76

This item is IN STOCK

Item ships within 1 - 2 Business Days.

Brand	Sugatsune
Certification	NSF Compliant \| RoHS 2 \| REACH 240 5/21/24
Depth	0.55 in (14 mm)
Diameter	Bar/Bolt Diameter: 0.24 in (6 mm)
Finish	Satin
Height	1.04 in (26.5 mm)
Includes	Supplied with mortise and surface strike
Material	304 Stainless Steel
Mounting Hardware	2.7 X 16 Stainless Steel Screw
Notes	Knob springs back into sleeve to keep bolt in locked or unlocked position
Product Weight	.14 lbs per piece
Width	3.16 in (80.3 mm)
